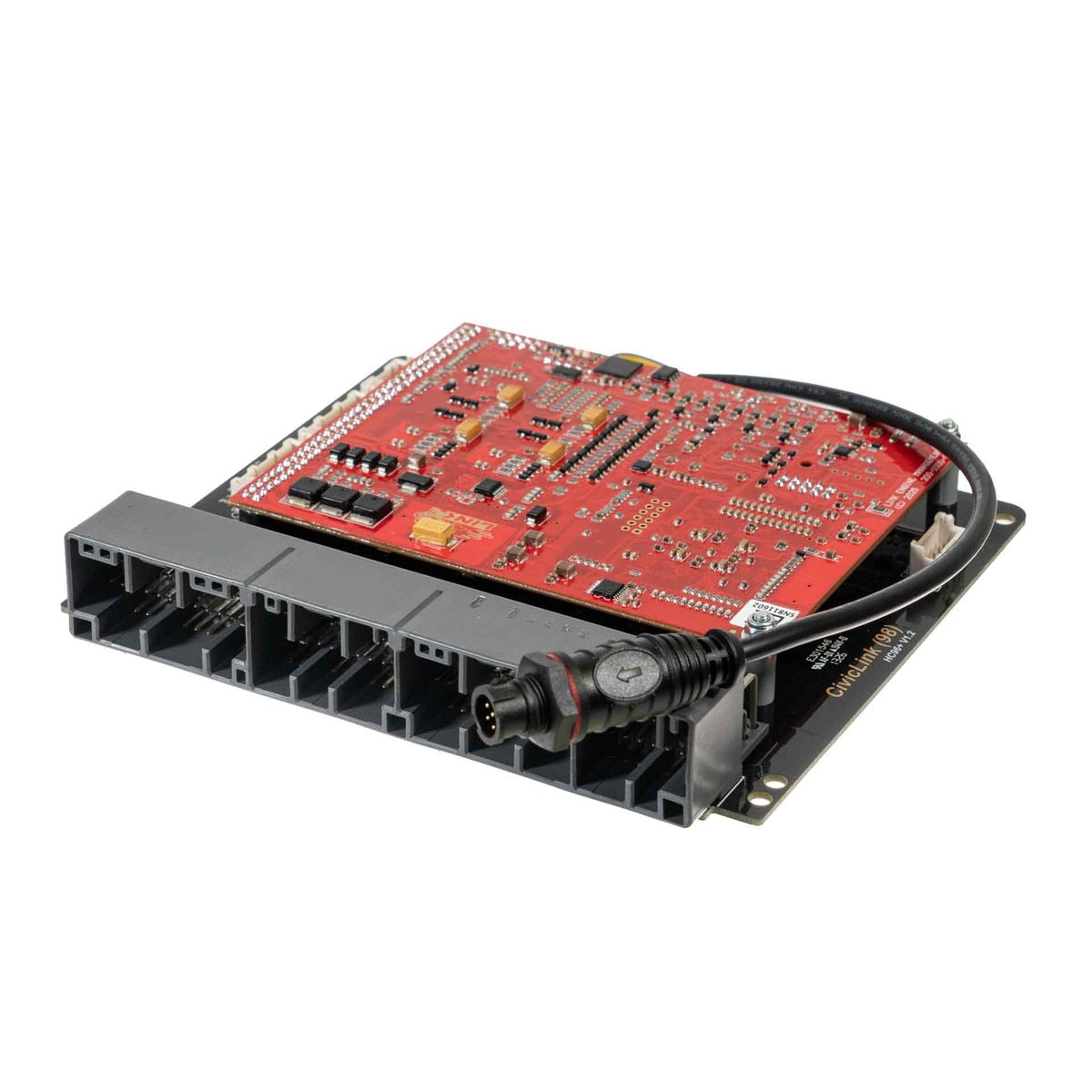

Link G4X HC96X Plug-In ECU, OBD2 Honda Civic and Accord, Acura Integra and CL

The Link G4X HC96X is the OBD2-era companion to the HC92X, built to replace the factory Honda ECU inside its original case on the factory loom, with a startup map preloaded. Compared with the OBD1 unit it adds a second CAN bus and a knock input on the factory header, and it uses the factory MAP sensor. Model-year coverage needs a quick check for this unit, so please confirm your car with us before ordering.

Fits

• Honda Civic Gen 6, 1996-1998
• Honda Civic DX, LX, EX and Si, 1999-2000
• Acura Integra LS, GS, GS-R and Type R, 2000-2001
• Acura CL, 1998-1999 (four-cylinder)
• Honda Accord DX, LX and EX, 1998-2002 (four-cylinder)
• Manual transmission only

Before you order

• Manual transmission only.
• Link designs the HC96X for the 1996-1998 Honda B16 and B18 engines and all models that use the Honda OBD2A ECU, and lists the applications above. As Link asks, compare your factory ECU connector with the header photo before ordering.
• Compare your factory ECU plug with the header photo before ordering.
• The install manual pinout is for a four-cylinder engine, so V6 Accord and CL models are not covered.
• No onboard MAP sensor. The factory MAP sensor is used, or an external sensor can be wired through the expansion connector.
• Electronic throttle (drive-by-wire) control is not usable out of the box; Link says this unit needs a modification first.
• Honda igniters use reversed polarity: keep the ignition coil disconnected during installation until the ignition settings are confirmed.
• Configuration choice: Standard is the ECU as Link builds it. With E-Throttle Upgrade adds Link's factory modification (part 400-0100) so the ECU can drive an electronic throttle body. Link's HQ carries it out on a new ECU before it ships, which adds about 3 weeks. Link only modifies new ECUs, so an ECU you already own has to go through Link's tech support instead.

Highlights

• Fits inside the factory ECU case on the original loom, with a startup map included
• Two CAN buses (CAN 1/RS232 and CAN 2/OBD ports) for dashes and CAN accessories
• Knock sensor input on the factory header
• Expansion connector adds analog, temperature and digital inputs plus spare auxiliary and ignition outputs
• G4X core features: flex fuel, open and closed-loop boost control, dual closed-loop lambda, VVT control, a built-in trigger oscilloscope and 512 MB of onboard logging
• Motorsport functions: launch control, anti-lag, traction control, nitrous control, cruise control, gear shift and paddle shift control
• USB tuning cable in the box; PCLink tuning software is a free download from Link

Specifications

• Platform: Link G4X
• Communications: 2 CAN bus channels, LTW 6-pin USB tuning connection
• Data logging: 512 MB onboard
• Operating voltage: 6.5-24 V (36 V maximum input)
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• In the box: HC96X ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card
