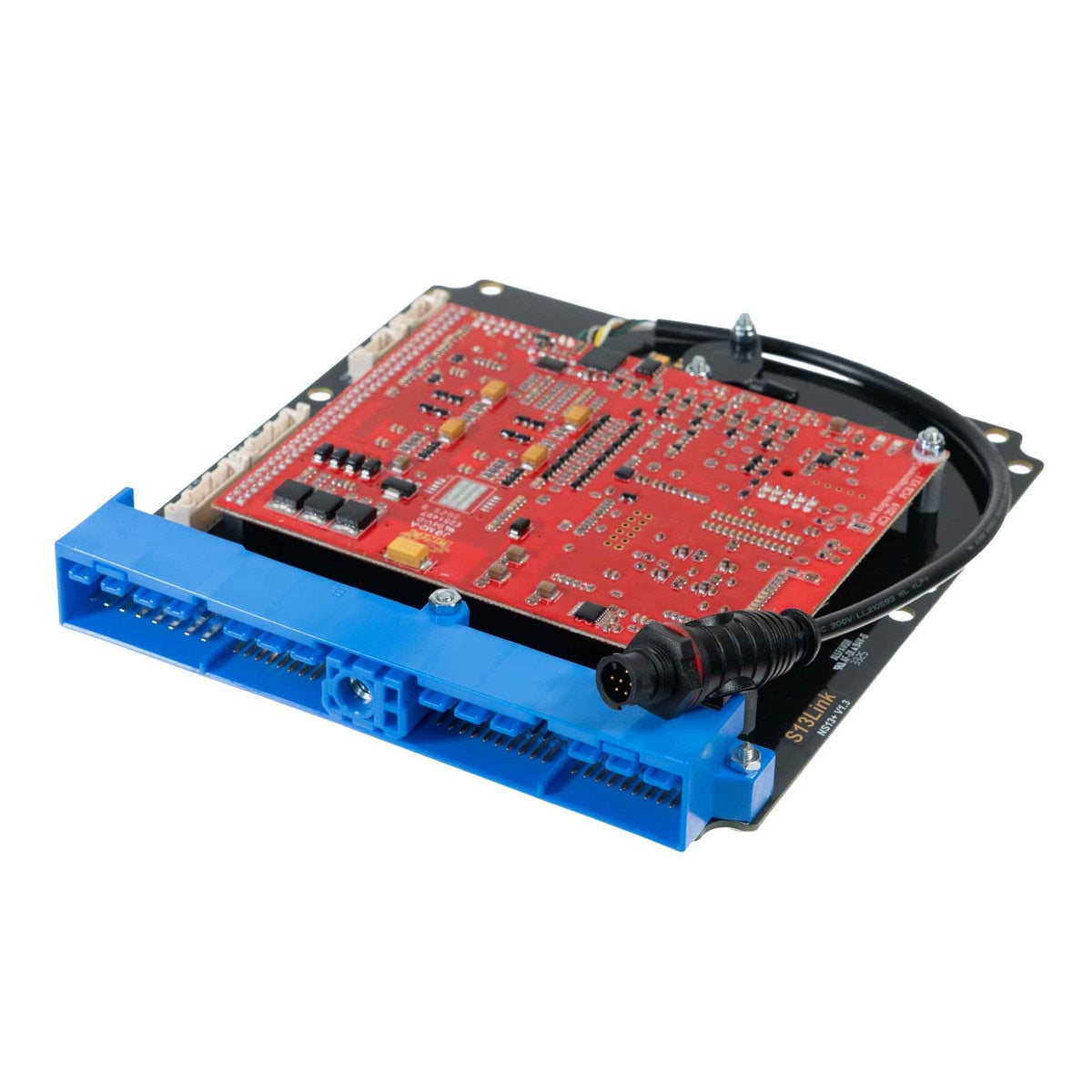

Link G4X NS13X Plug-In ECU, Nissan Silvia S13 and 180SX CA18DET, S14 SR20DET, 76-Pin

The Link G4X NS13X is a plug-in ECU for Nissan Silvia and 180SX models that use the 76-pin blue ECU header: the CA18DET S13 Silvia and 180SX, and the pre-facelift S14 with the SR20DET. It fits inside the factory ECU case on the original loom with a startup map and an onboard MAP sensor. A jumper on the board sets the ignition pinout for the CA18 or the SR20.

Fits

• Nissan Silvia S13 with the CA18DET
• Nissan 180SX with the CA18DET
• Nissan Silvia S14 (pre-facelift) with the SR20DET
• Designed for manual-transmission cars

Before you order

• 76-pin blue header only. Cars with the 64-pin blue header (SR20DET S13 and 180SX, facelift S14a, S15) need the NS15X (217-4100).
• Link lists Japanese-market vehicles only; in North America this means imported cars. The North American 240SX with the KA24E or KA24DE is not a listed application.
• Designed for manual-transmission cars. If yours is an automatic, contact us before ordering.
• A factory intake air temperature sensor is present on CA18 cars only; SR20 cars need one wired through the expansion connector.
• Electronic throttle (drive-by-wire) control is not usable out of the box; Link says this unit needs a modification first.
• Known issue noted by Link: the factory optical crank angle sensor can cause trigger errors at high rpm or with aftermarket cams and valve springs; an aftermarket trigger disc or a crank trigger is the usual cure.
• Configuration choice: Standard is the ECU as Link builds it. With E-Throttle Upgrade adds Link's factory modification (part 400-0100) so the ECU can drive an electronic throttle body. Link's HQ carries it out on a new ECU before it ships, which adds about 3 weeks. Link only modifies new ECUs, so an ECU you already own has to go through Link's tech support instead.

Highlights

• Onboard MAP sensor, rated 4 bar or 7 bar depending on board revision
• Jumper-selectable ignition pinout for CA18DET or SR20DET
• Two CAN buses (CAN 1/RS232 and CAN 2/OBD ports)
• Works with factory injector setups that use ballast resistors
• G4X core features: flex fuel, open and closed-loop boost control, dual closed-loop lambda, VVT control, a built-in trigger oscilloscope and 512 MB of onboard logging
• Motorsport functions: launch control, anti-lag, traction control, nitrous control, cruise control, gear shift and paddle shift control
• USB tuning cable in the box; PCLink tuning software is a free download from Link

Specifications

• Platform: Link G4X
• Communications: 2 CAN bus channels, LTW 6-pin USB tuning connection
• Data logging: 512 MB onboard
• Operating voltage: 6.5-24 V (36 V maximum input)
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• In the box: NS13X ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card
