Wisefab Front Drift Angle Lock Kit, Nissan 370Z / Infiniti G37 (WF370)

Front angle kit for the 370Z and G37 at about the same weight as the factory aluminium suspension, with spherical joints in place of rubber. It works with rack offset spacers, or with Wisefab's optional 370Z rack relocation kit, which moves the rack forward and removes the spacers.

Fits

• Nissan 370Z (Z34)
• Infiniti G37 (V36): Wisefab does not address the AWD G37x

Before you order

• Coilovers required. Designed for a ride height of about 80 mm from the front subframe to the ground.
• Depending on wheel width and offset, wider fenders or flares will be needed. No inner wheel well trimming needed with tires up to about 635 mm diameter (for example 215/45R17, 235/40R17, 225/40R18).
• Minimum wheel size 17 in. Recommended backspacing about 135 mm (7 in ET45, 8 in ET35, 9 in ET20).

Highlights

• 65 degrees of lock with parallel steering
• Ackermann is adjustable toward positive or negative in a few minutes at the track without upsetting the alignment (adjustment hardware included).
• One-piece lower control arm; shock motion ratio adjustable (three positions) without changing ride height
• Both knuckle joints dropped to raise the front roll centre, so the front anti-roll bar can be removed
• Geometry is tuned for dynamic camber, low bump steer and controlled steering jacking across the full steering range, so the wheel self-centres instead of sticking at full lock.
• Adjustable lock stopper
• Rod ends and spherical bearings throughout, no rubber bushings.

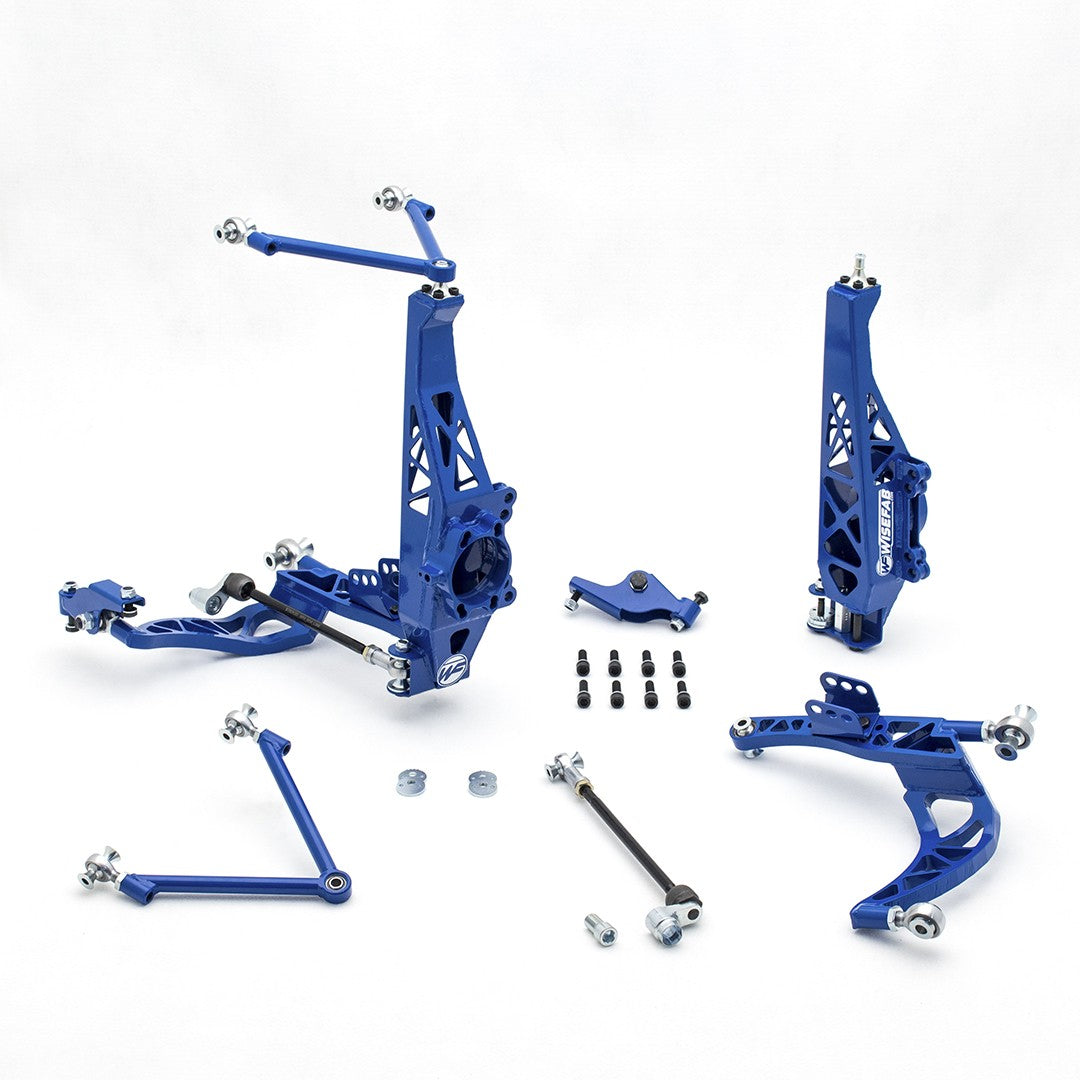

In the kit

• Pre-set upper and lower control arms
• Knuckles with hardware
• Assembled tie rods
• Installation guide
