Wisefab Front Drift Angle Lock Kit, Toyota GR Supra A90 (WFA90)

Pro-level front angle kit for the A90 Supra, developed and tested with top drivers in Japan and the USA. It replaces the factory front end with one-piece lower arms and new knuckles built around BMW E90 hardware, for 65 degrees of lock with adjustable Ackermann.

Fits

• Toyota GR Supra (A90)

Before you order

• The original ABS wheel speed sensor can be reused.
• Wheel bearing: the factory bearing cannot be used. Use the BMW E90 front bearing (BMW 31216765157).
• Wheels: the hub is 5x120, so factory Supra wheels will not fit.
• Brakes: BMW E90 or E90 M3 brakes recommended. The factory caliper can be used with the supplied E90 M3 adapter (may need modification), but the factory disc cannot; source a suitable disc and make sure it is centred in the caliper.
• Struts: lower fixing diameter must be 56 mm or 62 mm (factory is 56 mm). Ride-height-adjustable coilovers are required.
• Steering rack: the factory rack can be used but Wisefab does not recommend it. A replacement rack must sit exactly where the factory rack was; Wisefab sells a separate conversion to a BMW E90 rack (LHD or RHD).

Highlights

• 65 degrees of lock with parallel steering
• Ackermann is adjustable toward positive or negative in a few minutes at the track without upsetting the alignment (adjustment hardware included).
• Adjustable lock stopper
• One-piece lower control arm replaces the factory links for stiffness at high lock
• Dropped joints raise the front roll centre, so the front anti-roll bar can be removed
• Geometry is tuned for dynamic camber, low bump steer and controlled steering jacking across the full steering range, so the wheel self-centres instead of sticking at full lock.
• High-strength steel throughout. Rod ends and spherical bearings throughout, no rubber bushings.

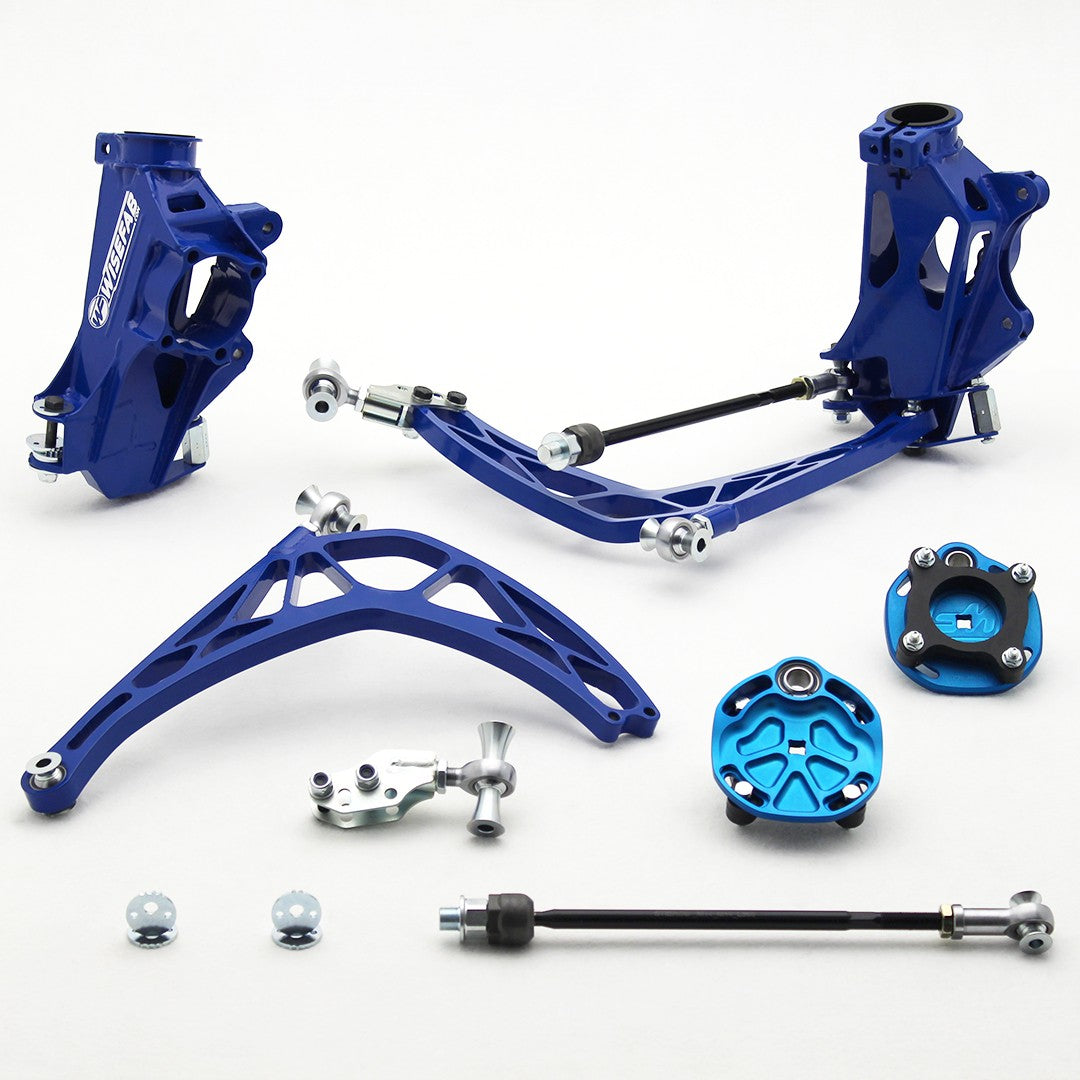

In the kit

• Adjustable coilover top mounts (Formula Drift compliant)
• Knuckles with hardware
• Lower control arms
• Assembled tie rods
• Brake adapters for M brakes
• 45 mm coilover adapter sleeve
• Installation guide
