Wisefab Front Drift Angle Lock Kit V2, BMW E46 3 Series and E46 M3 (WF460)

Version 2 of Wisefab's E46 front kit adds Ackermann adjustment at the knuckle add-on and caster adjustment at the top mount, so both are quick to change. It fits standard E46 models and the E46 M3.

Fits

• BMW 3 Series (E46)
• BMW M3 (E46)

Before you order

• Coilovers are assumed for clearance.
• Wisefab recommends tires no larger than 645 mm (235/40R18). Wider fenders or flares are needed.
• Wisefab does not mention the AWD E46 xi models; ask before ordering for one.

Highlights

• Raises the front roll center on a lowered car for more roll stiffness
• Ackermann adjusts from near parallel to two positive settings in minutes, trackside, without redoing the alignment
• Geometry keeps the leading wheel's positive camber at big angle as low as possible, for more front grip through transitions
• Steering jacking monitored and controlled; wheel no longer locks up at the end of the sweep
• Adjustable lock stop; inner ball joint stronger than OEM and earlier Wisefab versions
• Wisefab's recommended alignment for the E46: camber -4 degrees, caster 6 degrees, toe 2 mm with zero or negative Ackermann, 0 with positive

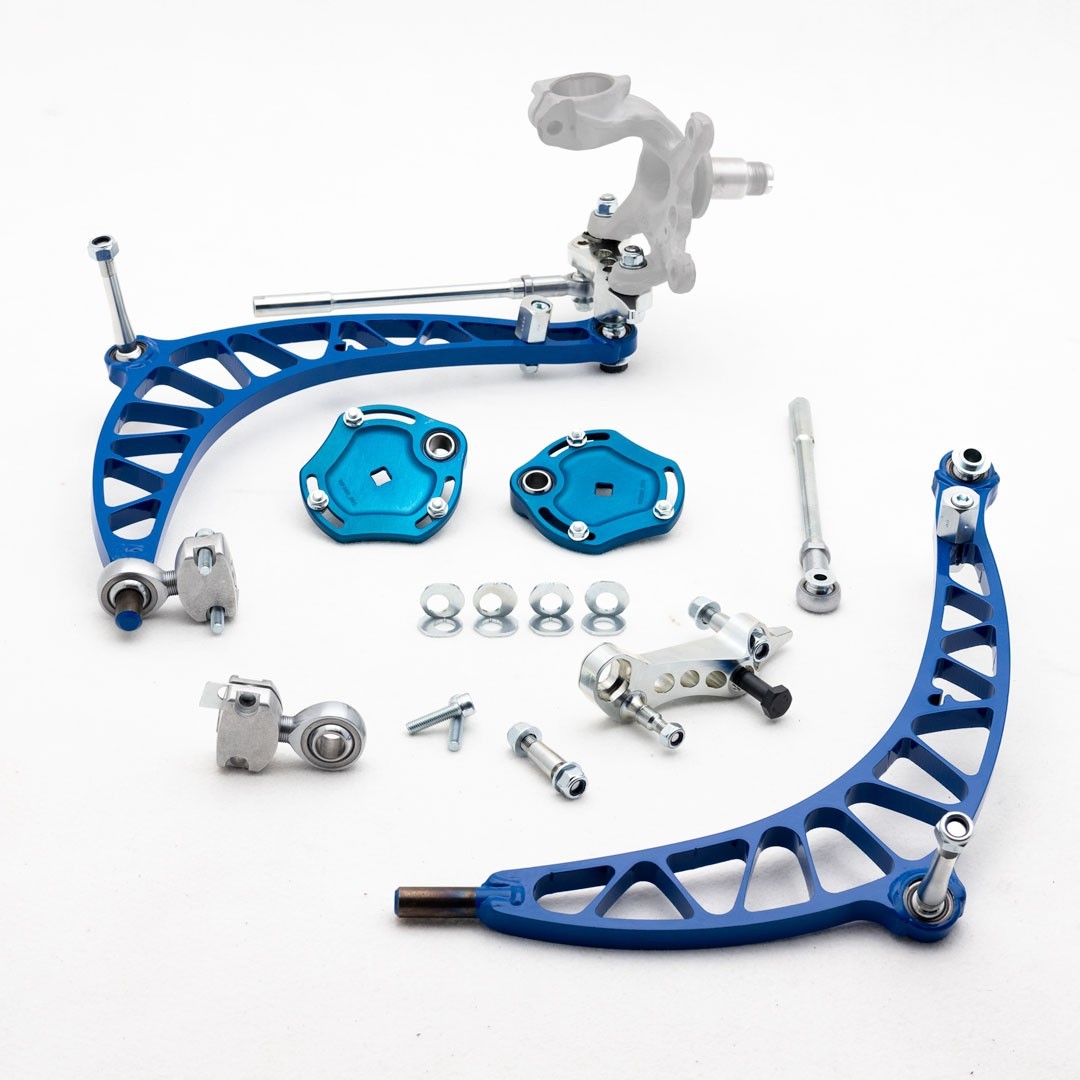

In the kit

• Adjustable coilover top mounts (Formula Drift compliant)
• Knuckle add-ons with Ackermann adjustment hardware
• Lightweight lower control arms
• Assembled tie rods
• Adjustable lower control arm rear mount
• Installation guide
