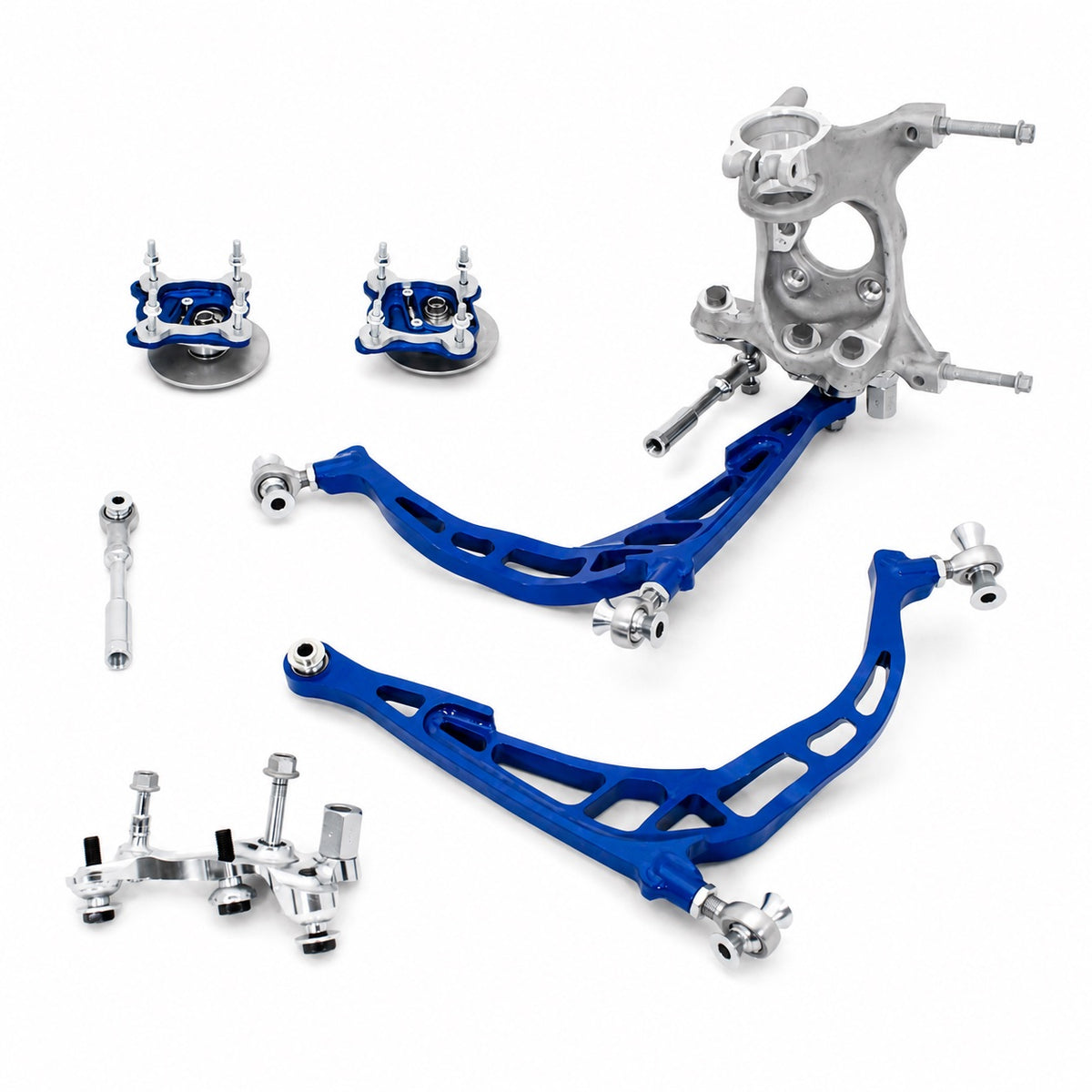

Wisefab Front Narrow Drift Angle Lock Kit, BMW G80 M3 / G82 M4 / G87 M2 (WFG80N)

A narrow angle kit for the G8X M cars that keeps as much of the car's original technology working as possible. The narrower geometry keeps front track in check for clean wheel-to-fender fitment, while Wisefab's geometry gives up to 55 degrees of lock, strong front grip and smooth self-steer.

Fits

• BMW M3 (G80)
• BMW M4 (G82)
• BMW M2 (G87)

Before you order

• ESP must be switched off when using the kit, and the extra angle and changed geometry may bring up warning lights or fault codes.
• Uses the car's own G-series M front knuckles, wheel bearings, brakes and inner tie rods.
• Coilovers recommended. OE struts work but may touch the knuckle add-on, arm or tie rod at full droop and high angle, and ride height may change. The OE anti-roll bar can stay if steering lock is limited.
• One plastic tab on the underbody panel is cut off, and brake dust shields may need trimming. Front track is 70 mm wider per side than stock.
• Max wheel backspacing: 155 mm (20 in), 150 mm (19 in), 140 mm (18 in). Some 17 in wheels fit, but not with the OE brakes.
• Wisefab lists chassis codes only and does not mention xDrive (AWD) cars; ask us before ordering for an xDrive car

Highlights

• Up to 55 degrees of steering angle
• Narrower track for clean fitment without pro-kit width
• Works with the original BMW dampers and springs if wanted, keeping BMW damping control functional
• All lengths except tie rods pre-set by Wisefab
• Wisefab's recommended alignment: camber -4.0 degrees, caster 9.5 degrees, toe 0 mm
