Wisefab
Wisefab Rear Suspension Drop Knuckle Kit, Honda S2000 AP1 / AP2 (WFS21)
$6,509.36
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
Rear track kit for a lowered S2000. Once the car comes down, the factory geometry stops working as intended; this kit puts roll centre, bump steer and camber gain back in range for better roll stiffness, handling and grip.
Fits
- Honda S2000 (AP1)
- Honda S2000 (AP2)
Before you order
- Coilovers required. Minimum wheel size 17 in.
- Track width stays close to factory, so wheels of similar size and offset to the originals can be used.
- The original wheel speed sensor can be reused.
Highlights
- A-arm joint sits over 40 mm lower than the factory knuckle to restore roll centre on a lowered car
- 7075-T6 billet CNC knuckles and CrMo arms with double-shear joints, lighter than factory
- CrMo rod ends and spherical bearings in place of factory bushings
- Camber adjusts at the knuckle in a few minutes at the track; bump steer set by tie rod height at the knuckle

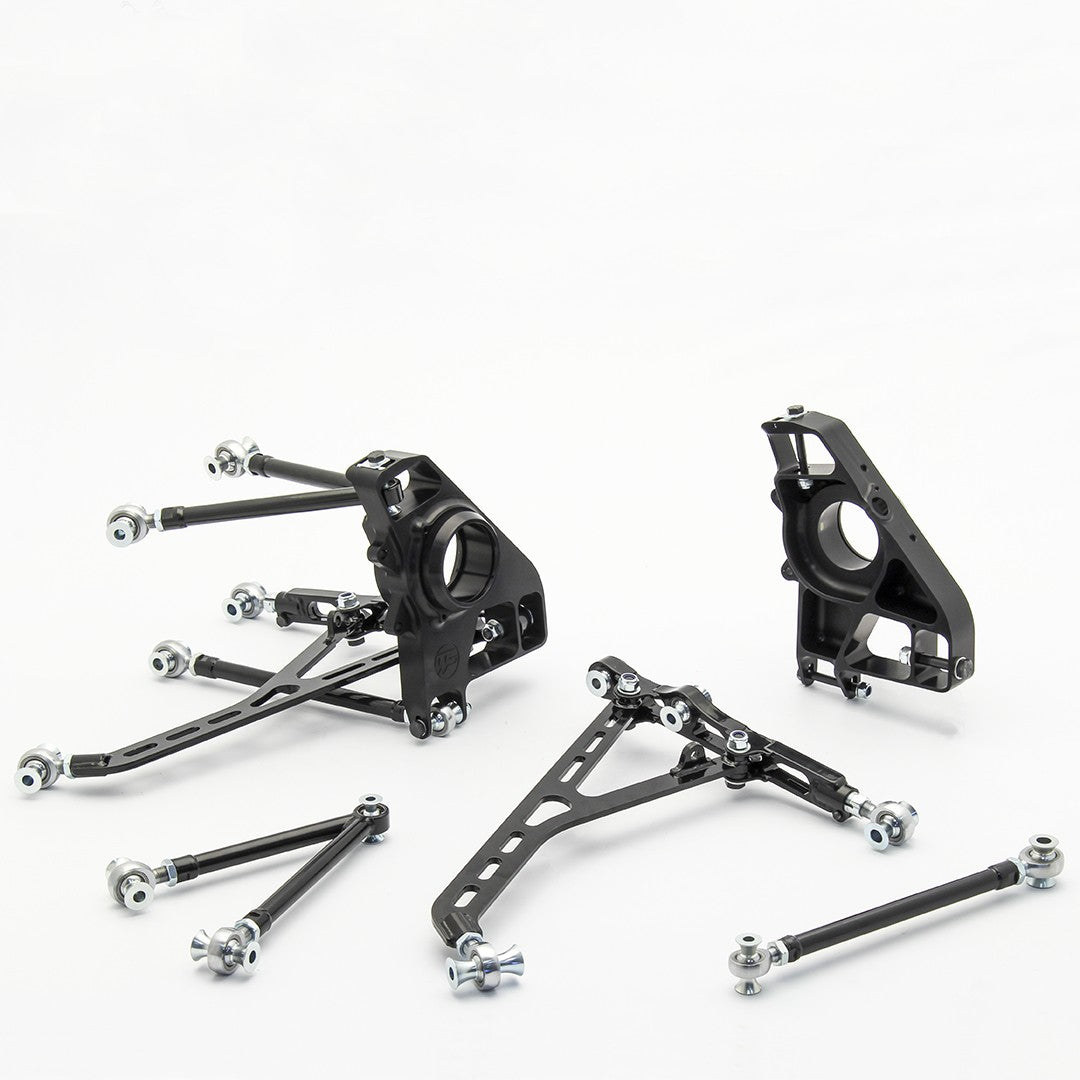

In the kit
- Upper and lower control arms
- Knuckles with hardware
- Assembled toe links (listed by Wisefab as tie rods)
- Caster control hardware (as listed by Wisefab)
- AP1 and AP2 spacers
- Installation guide
