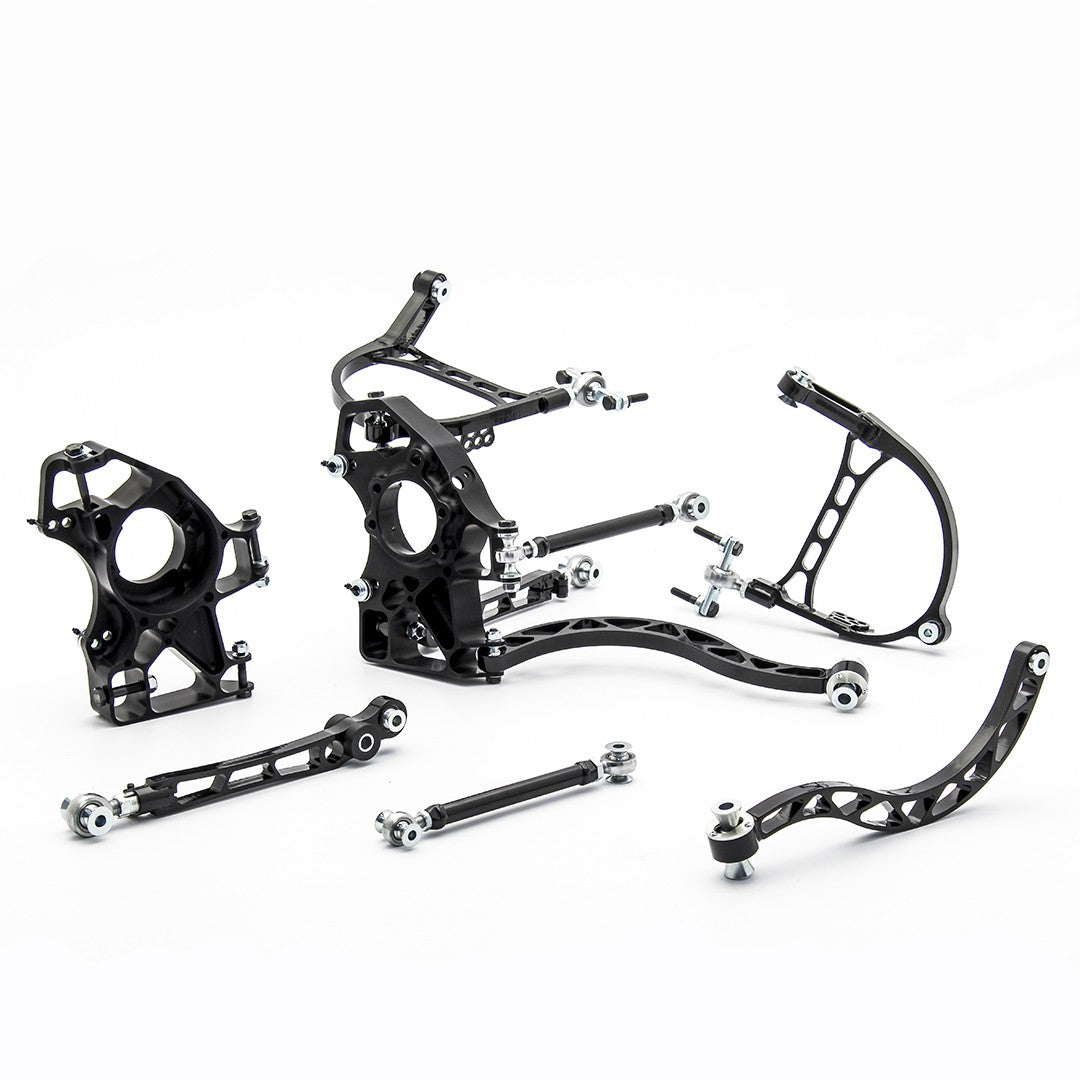

Wisefab Rear Suspension Drop Knuckle Kit, Mitsubishi Lancer Evolution 7 / 8 / 9 (WFE81)

Rear track kit for the Evo 7, 8 and 9. The Evo was designed for rally and is increasingly used on circuits; once it is lowered, this kit brings roll centre, bump steer, anti-squat and the camber curve back into range.

Fits

• Mitsubishi Lancer Evolution (CT9A): Evo 7, 8 and 9

Before you order

• Coilovers required. Minimum wheel size 17 in.
• With standard-width wheels no bodywork changes are needed; wheels that sit further out need body clearance for bump travel.
• The original wheel speed sensor can be reused.

Highlights

• 7075-T6 billet CNC knuckles with double-shear joints; links and arms in high-strength steel
• Wisefab quotes 15 kg saved across its front and rear Evo kits combined
• CrMo rod ends and spherical bearings in place of rubber bushings
• Camber and bump steer adjust at the upright, easy to use at the track
• Three anti-roll bar drop link positions to tune understeer and oversteer
• Two caliper mounting options; brakes from the Evo 7, 8, 9 or X can be used
• Room in the uprights for a larger CV joint if needed

In the kit

• Pre-set suspension links
• Knuckles with hardware
• Installation guide
