Wisefab

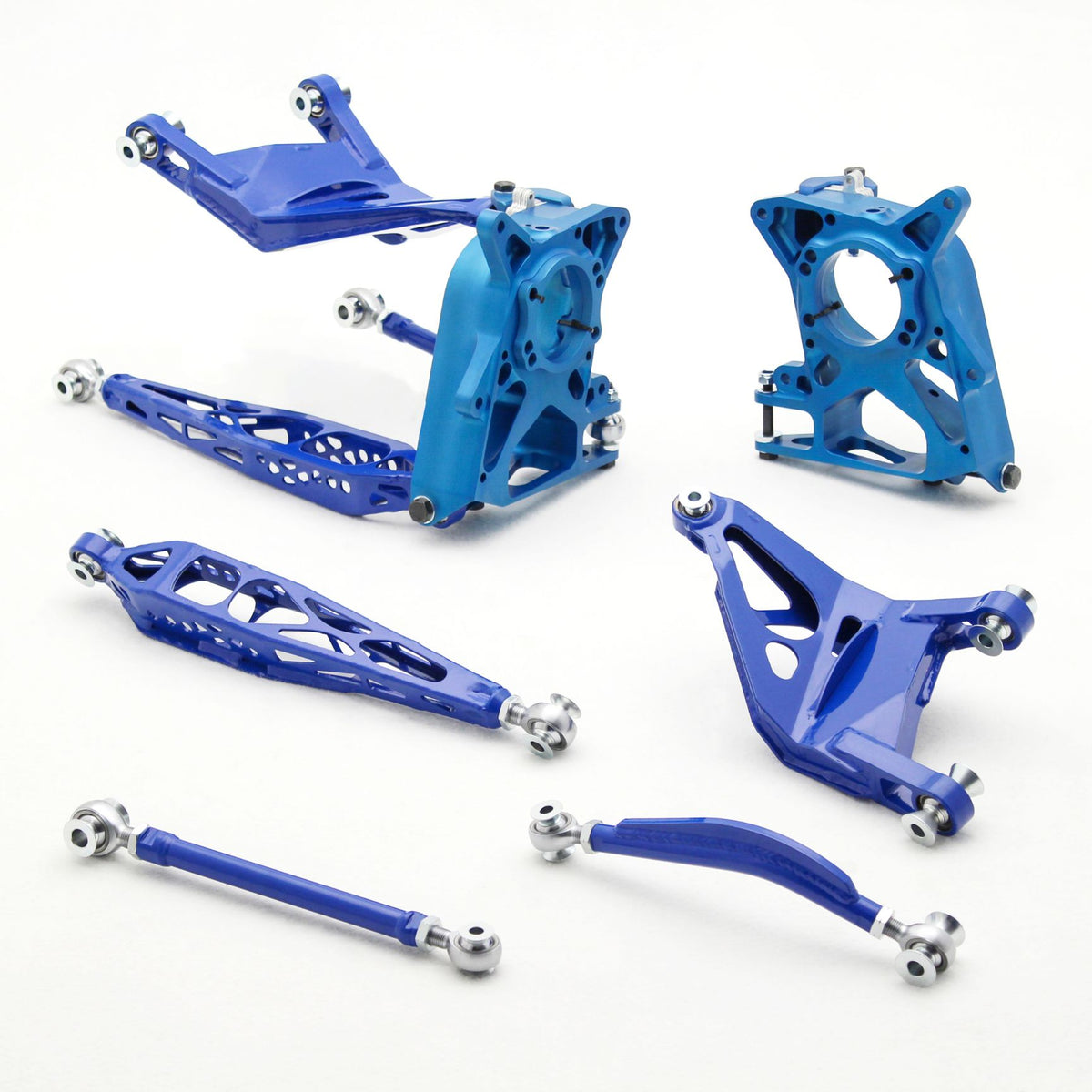

Wisefab Rear Suspension Drop Knuckle Kit, Toyota 86 / Subaru BRZ / Scion FR-S (WF861)
$5,119.72
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
Rear kit for a lowered GT86, BRZ or FR-S. Dropping the car upsets the factory kinematics; this kit brings roll centre, bump steer, anti-squat and the camber curve back into range for better roll stiffness, handling and grip.
Fits
- Toyota 86 (ZN6): First generation; Wisefab does not list the second-generation GR86/BRZ
- Scion FR-S (ZN6): First generation; Wisefab does not list the second-generation GR86/BRZ
- Subaru BRZ (ZC6): First generation; Wisefab does not list the second-generation GR86/BRZ
Before you order
- Coilovers required. Minimum wheel size 17 in.
- Hub-to-hub track stays the same as factory because it is set by the halfshaft length.
- Original wheel speed sensor can be reused. A Nissan S-chassis hub with a larger CV joint can be fitted as an option.
Highlights
- About 7 kg lighter combined than the factory parts
- 7075-T6 billet CNC knuckles with double-shear design; rear links and arms in high-strength steel
- CrMo rod ends and spherical bearings in place of rubber bushings
- Shock position on the arm changes motion ratio, acting like a spring rate change for quick balance tuning
- Camber set with shims; bump steer adjustable by moving washers
In the kit
- Pre-set suspension arms
- Knuckles with hardware
- Camber adjustment shims
- Installation guide
