Link ECU

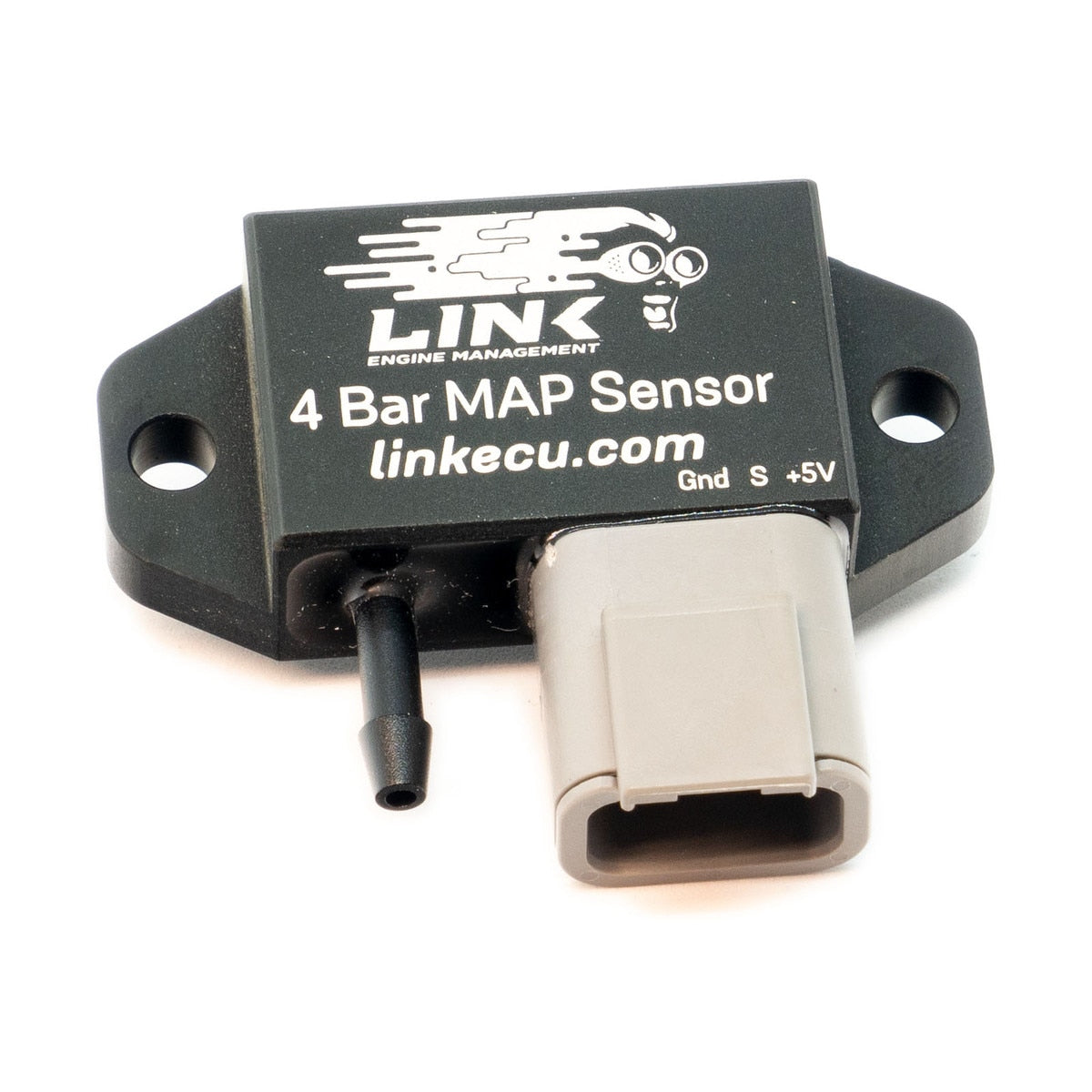

Link 4 Bar MAP Sensor, up to 44 psi Boost (MAP4)
$236.55
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A high-accuracy MAP sensor for turbocharged and supercharged engines running up to 44 psi (3.0 bar) of boost, measuring from full vacuum.
Highlights
- 0-4 bar absolute, for boost up to 44 psi (3.0 bar)
- Designed and made by Link in a compact aluminium enclosure
- 4 mm (3/16 in) hose barb, two-bolt mounting
- 3-pin Deutsch DTM connector kit included, with the pinout marked on the housing
- Works with all Link ECUs and other aftermarket ECUs with analog MAP inputs
Specifications
- Range: 0-4 bar absolute
- PC Link sensor type: "Link 4 Bar"
- Calibration: 0.5 V = 45 kPa, 4.5 V = 375 kPa
- Supply: 4.75-5.25 V, 10 mA
- Port: 4 mm (3/16 in) hose barb
- Connector: Deutsch DTM 3-way (kit PN 101-0128)
- Weight: 40 g
Note: Mount the sensor higher than its intake manifold connection. Not recommended for naturally aspirated engines or boost above 3 bar (44 psi).
