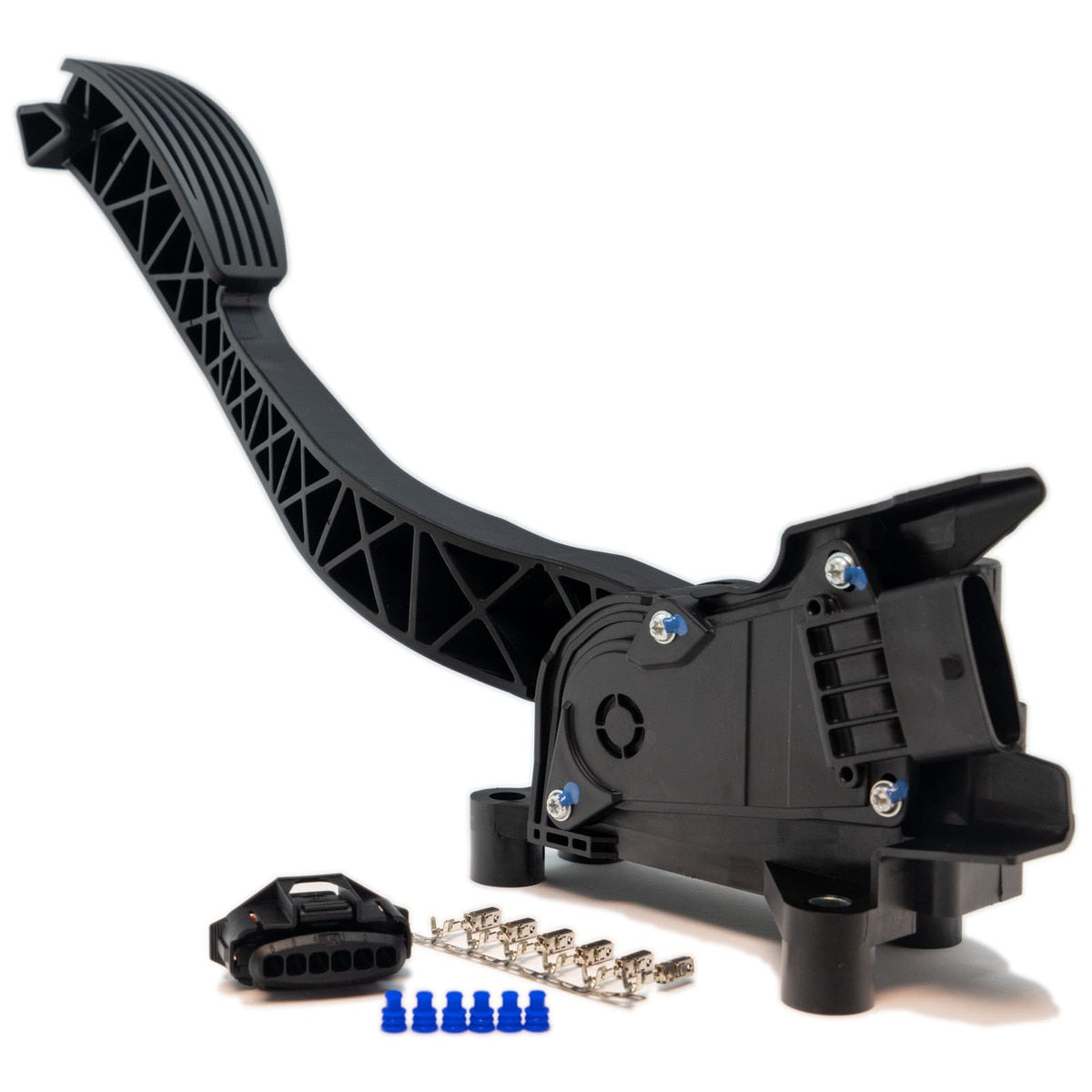

Link E-Throttle Accelerator Pedal Module (PED)

A universal, firewall-mounted drive-by-wire accelerator pedal for running E-throttle on a compatible Link ECU. Twin potentiometer outputs give the ECU a redundant pedal position signal.

Highlights

• Universal firewall-mount design, compact and light
• Dual potentiometer outputs for redundant pedal position
• 16° of travel (about 70 mm), smooth and progressive
• Needs a Link ECU with built-in E-throttle or Link's external E-throttle module (115-1000)
• Some Plug-in ECUs without built-in E-throttle can be upgraded by Link (400-0100)
• Must be installed and calibrated in PCLink before use; setup details are in the PCLink help file

Specifications

• Travel: 16° (about 70 mm)
• Outputs: dual potentiometer (AP main and AP secondary)
• Pinout: 1 = 5 V, 2 = 5 V, 3 = sensor ground, 4 = AP main output, 5 = sensor ground, 6 = AP secondary output
• In the box: pedal module, 6-pin connector kit
