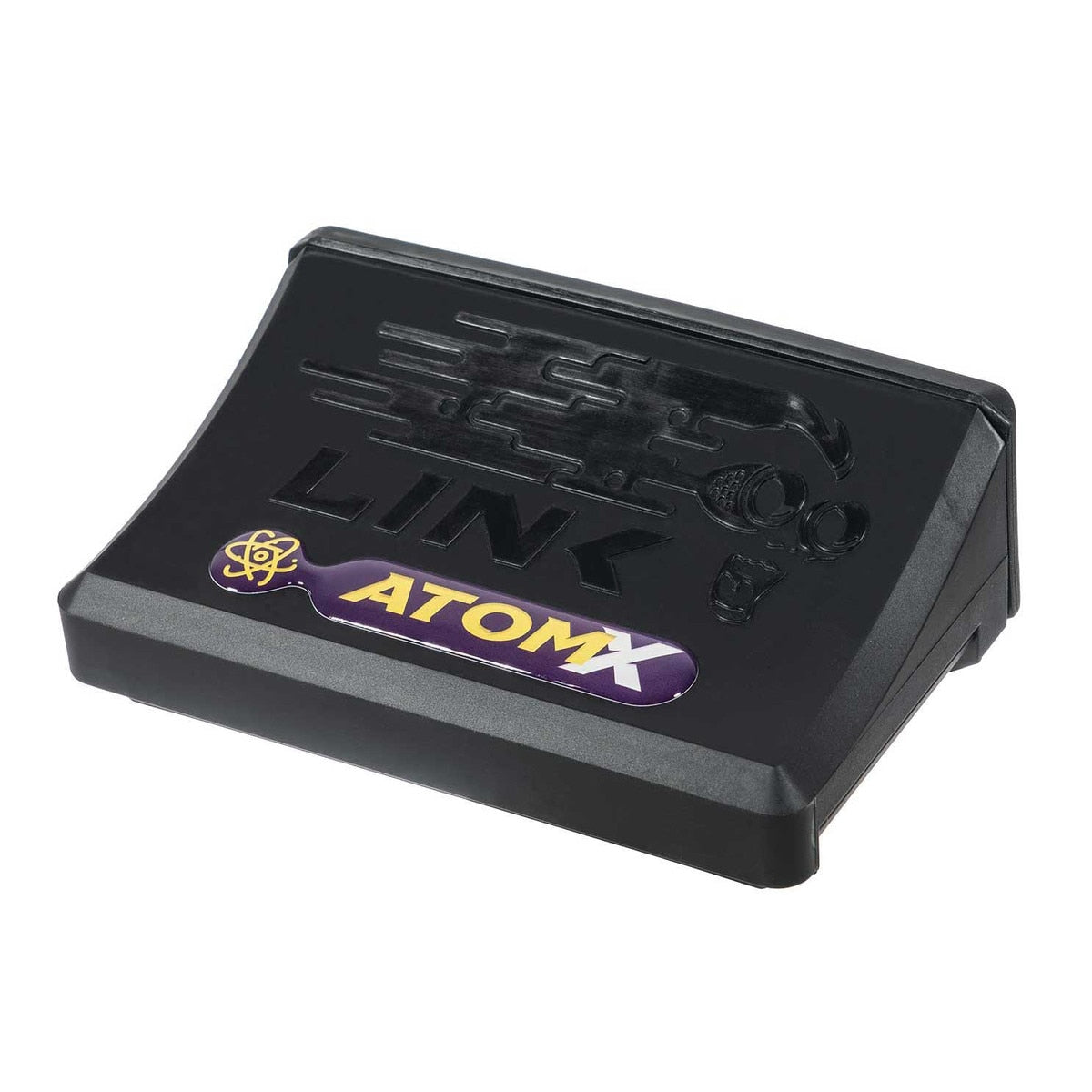

Link G4X AtomX Wire-In ECU (111-4000)

The AtomX is the entry point to Link's G4X wire-in range, built for engines up to four cylinders or two rotors that need sequential injection and direct spark without a long list of extra inputs and outputs. It runs the same processor, firmware and PCLink software as the larger G4X units, so the core tuning tools are all there in a compact nylon case. If the build calls for VVT, closed-loop boost or launch control, the MonsoonX is the next step up.

Highlights

• Sequential injection and direct spark for up to 4 cylinders or 2 rotors
• VE or traditional fuel modelling, individual cylinder corrections and dual fuel and ignition maps
• Flex fuel, flexible engine protection limiters and a built-in trigger oscilloscope
• Open-loop boost control with up to three switchable tables, plus on/off cam control for VTEC-style systems
• CAN bus with CAN keypad control, an OBDII output stream and CAN or serial data for aftermarket dashes
• 512MB of onboard data logging and 8 custom math blocks

Specifications

• Engine support: up to 4 cylinders or 2 rotors, sequential injection and direct spark
• Injection drives: 4
• Ignition drives: 4 (spare ignition drives can be used as auxiliary outputs)
• Auxiliary outputs: 4
• Inputs: 2 digital, 2 temperature, 3 analogue, 2 trigger (spare temperature and analogue inputs can act as digital inputs)
• Knock inputs: 1
• E-throttle: not supported (see the XtremeX or FuryX)
• Wideband lambda: add an external controller such as Link's CAN Lambda (the FuryX has one built in)
• Direct injection: Link recommends its G5 Voodoo range for direct-injection engines
• Sensor supply: +5V
• Communications: 1 CAN bus, Mini-B USB tuning port
• Data logging: 512MB, up to 100kHz total logging rate, 250 channels
• Connector: one 34-position Superseal (takes Link's A loom)
• Enclosure: glass-filled nylon, 90 x 130 x 45 mm (3.54 x 5.12 x 1.77 in), 180 g
• Electrical: 6.5 to 24V operating range, 36V maximum input, 3A maximum continuous draw
• Ambient temperature: -30 to 90°C
• Manufacturing standard: ISO 13485
• In the box: AtomX ECU, USB tuning cable, mounting bracket, quick start guide, Link stickers (wiring loom not included)
• Software: PCLink, a free download from Link
