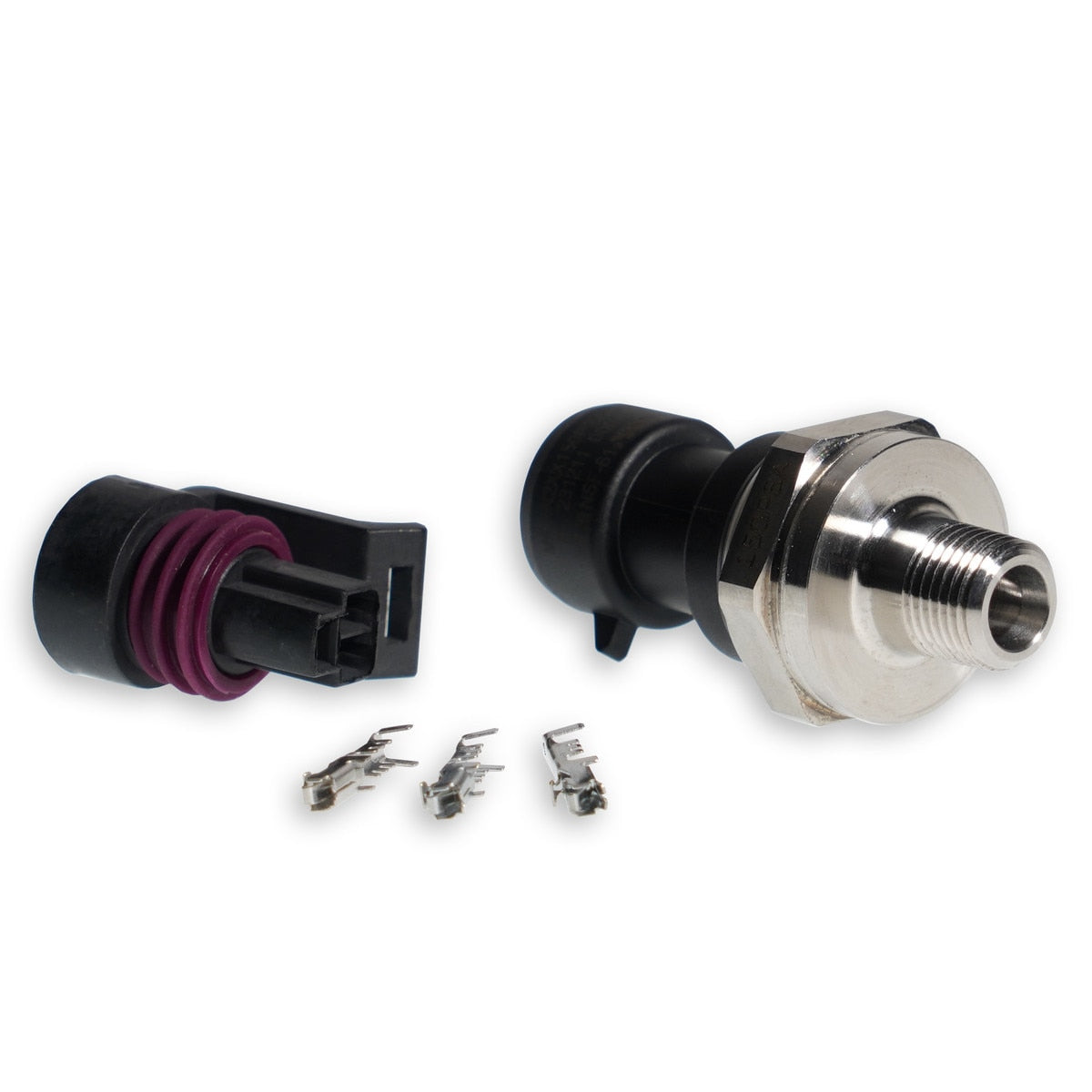

Link MIPS 150 psi Pressure Sensor, 1/8 NPT, Stainless (101-0325)
$214.65
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A Honeywell MIP series media-isolated pressure transducer reading 0-150 psi, in a stainless steel body with a 1/8 NPT thread. Suited to fuel, oil, coolant and other fluid pressures.
Highlights
- 0-150 psi range with 0.5-4.5 V ratiometric output
- Media-isolated sensing element, stainless steel construction
- 1/8-27 NPT male thread, 22 mm hex
- Rated -40 to +125 °C
- Suitable for oil, petrol, ethanol, diesel, coolant and water
- 3-way Metri-Pack 150 connector kit included
Specifications
- Range: 0-150 psi (0.5 V = 0 kPa, 4.5 V = 1034.21 kPa)
- PC Link calibration: "1000 kPa (150 PSI) TI Sensor"
- Supply: regulated 4.75-5.25 V, 7.5 mA
- Thread: 1/8-27 NPT male, 22 mm hex
- Connector: 3-way Metri-Pack 150 (kit PN 101-0130)
- Compatibility: all Link ECUs, and other aftermarket ECUs with analog pressure inputs
- Weight: 25 g
- In the box: sensor, 3-way Metri-Pack 150 connector kit, printed instructions
Note: Use a thread sealant suited to the fluid, and make sure the 150 psi range suits the system you're monitoring.
