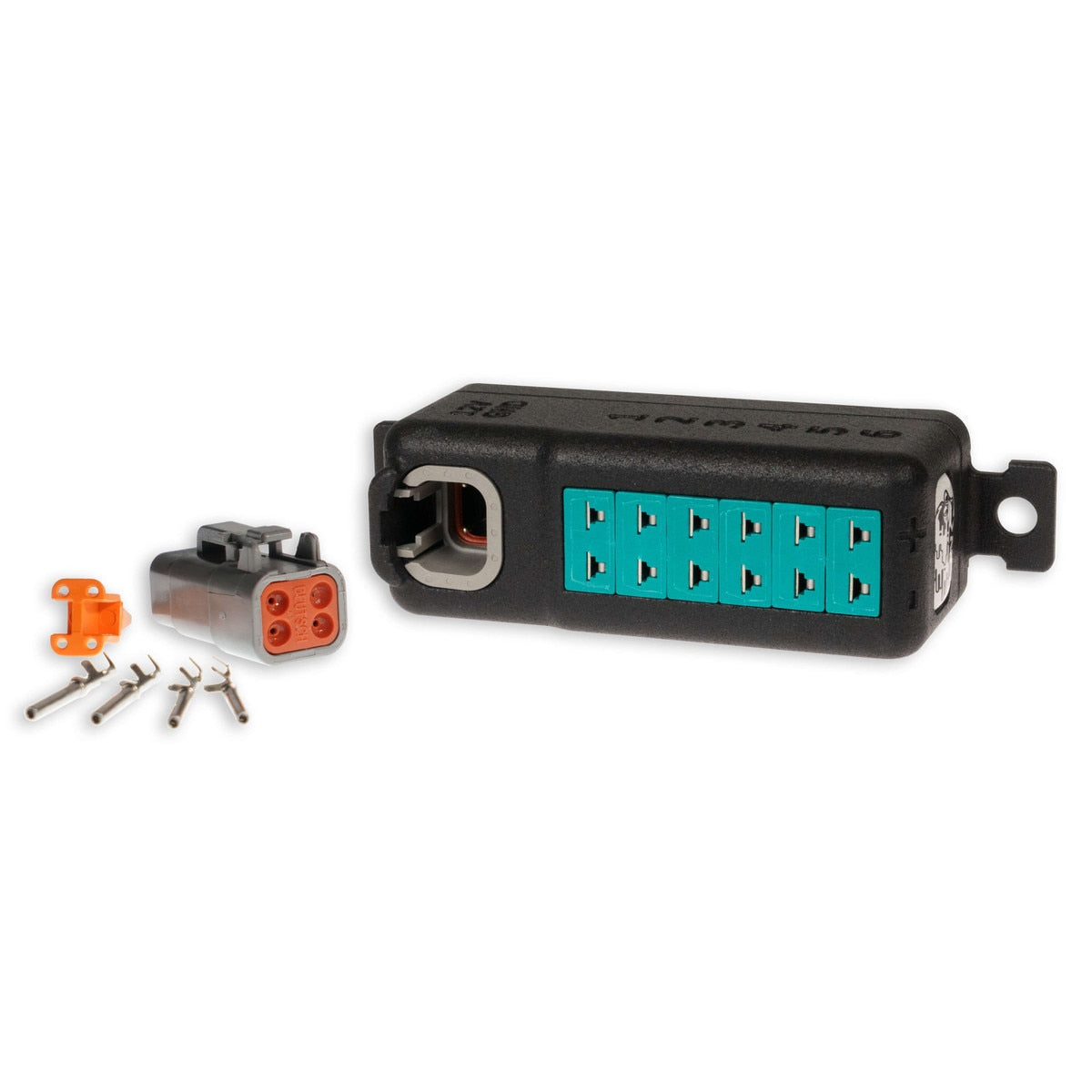

Link TCC06 6-Channel EGT to CAN Module, Type K (TCC06)

Connects up to six Type K thermocouples to a Link ECU over CAN, so you can log and use exhaust gas temperatures without tying up the ECU's analog inputs. It comes pre-configured for Link ECUs, and setup, updates and live readings are handled wirelessly from a phone or PC.

Highlights

• 6 cold-junction compensated Type K inputs on miniature K sockets
• 0-1250 °C (32-2282 °F) at 0.25 °C resolution
• Detects a missing thermocouple or a short to ground
• Sample rate adjustable up to 100 Hz
• Wireless configuration, updates and live temperature readings from a smartphone or PC
• Per-cylinder EGT for tuning, cylinder trim and engine protection, or intercooler, turbo housing, head, coolant and oil temperatures

Specifications

• Inputs: 6 x Type K, cold-junction compensated
• Range: 0-1250 °C, 0.25 °C resolution
• Accuracy: within 2%
• CAN connector: DTM4, Link standard pinout (pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High)
• CAN speed: 125 kbps, 250 kbps, 500 kbps or 1 Mbps
• Adjustable CAN ID and byte order; can emulate major aftermarket EGT to CAN modules
• Supply: 12 V
• Dimensions: 115 x 35 x 35 mm
• Weight: 95 g
• Compatibility: all Link ECUs with CAN bus support
• In the box: TCC06 module, DTM4 mating connector kit, 2 Link stickers

Setup: Setup in PC Link uses a Link-supplied stream file loaded into a CAN receive user stream that matches the module's CAN ID.
