Wisefab Front Drift Angle Lock Kit, BMW E46 3 Series (WF046)

Front angle kit for the non-M E46 with lightweight, strong lower control arms and adjustable top mounts. It bolts on, you set toe, and the geometry is sorted for high steering angles.

Fits

• BMW 3 Series (E46): Non-M (separate M3 kit); Wisefab does not address AWD xi models

Before you order

• For non-M E46 models. The E46 M3 uses Wisefab's separate M3 kit.
• Coilovers required. Wider fenders or flares are needed with this kit.
• Wisefab recommends tire diameter no larger than 620 mm (235/40R17).
• The kit bolts hub add-ons to the factory uprights: their bottom faces must be flat and clean of rust, so machine down any high spots or hammer damage before fitting.
• This is the standard-width kit; Wisefab also makes a narrow E46 version.

Highlights

• Adjustable lock stopper
• Raised front roll centre on a lowered car, so the front anti-roll bar can be removed for maximum usable lock
• Revised Ackermann: corrects the factory tendency for the inside wheel to turn more, which costs speed and grip when drifting
• Geometry minimises positive camber on the leading wheel at high angles and controls steering jacking
• Self-aligning behaviour tuned so the wheel does not lock up at full lock

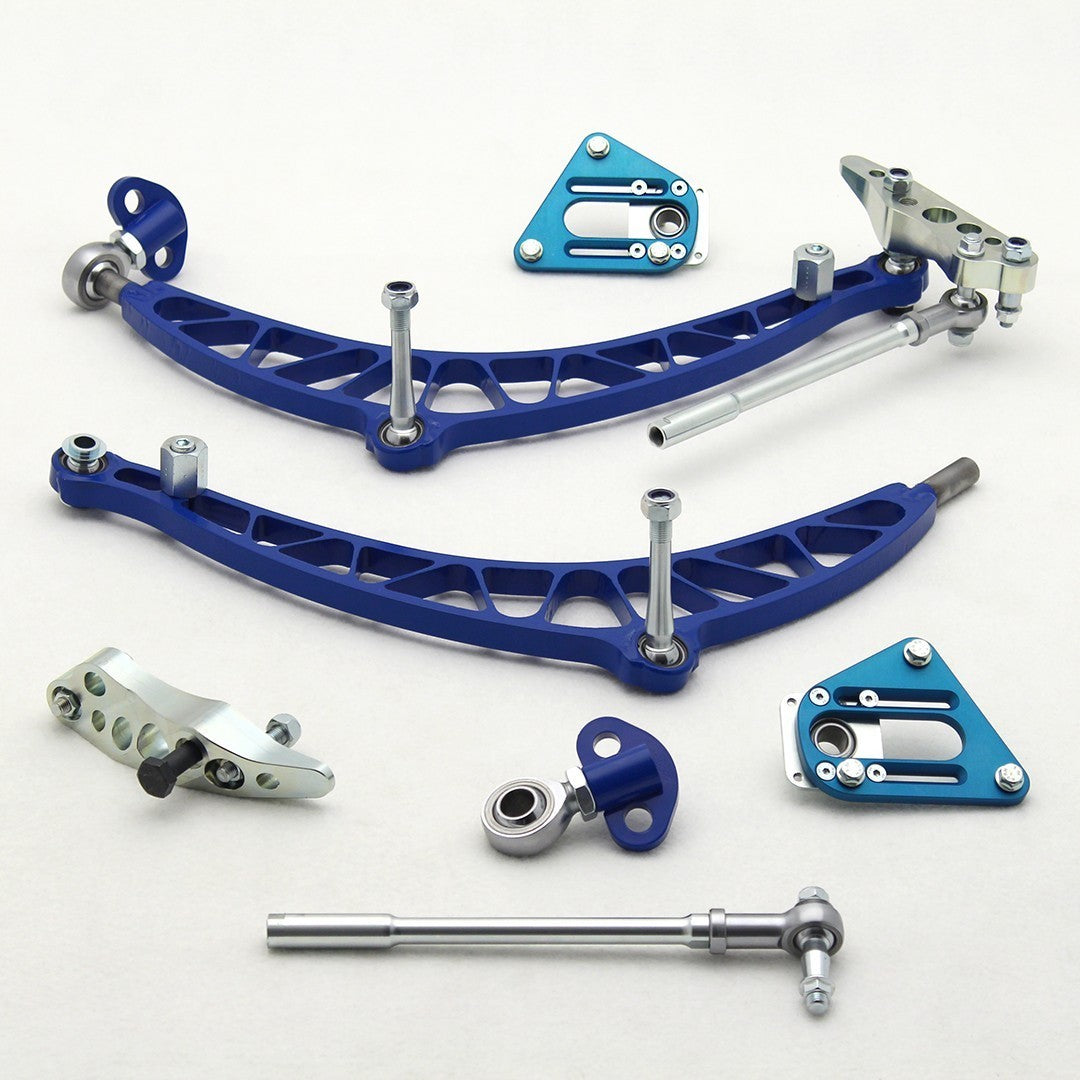

In the kit

• Adjustable coilover top mounts (Formula Drift compliant)
• Hub add-ons with hardware
• Lightweight lower control arms
• Assembled tie rods
• Adjustable lower control arm rear mounts
• Installation guide
