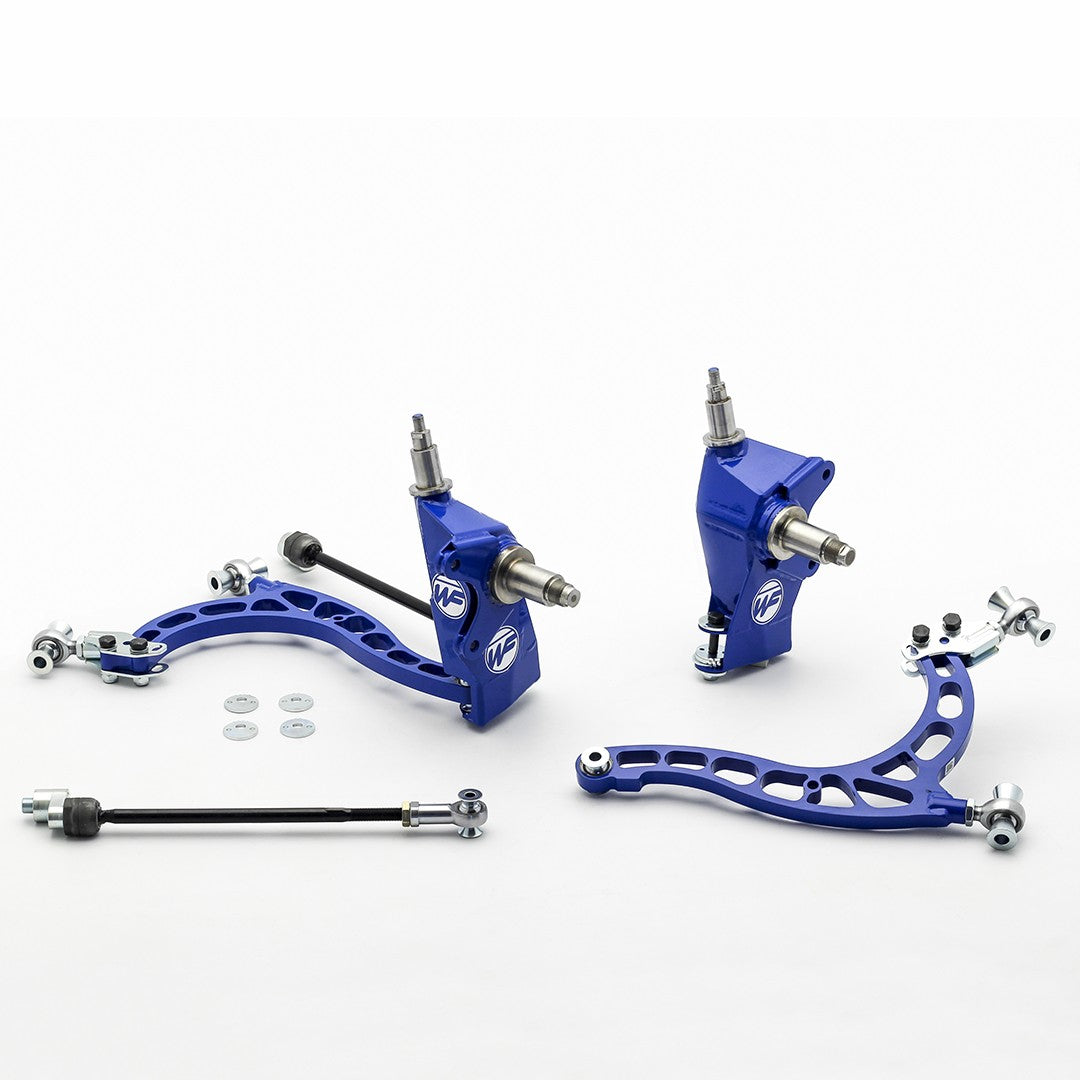

Wisefab Front Drift Angle Lock Kit without Upper Arms, Nissan Skyline R32 (WF320)

Front angle kit for the R32 Skyline. It supplies new knuckles, one-piece lower arms and tie rods, while the upper control arms are left to you. The knuckle has Ackermann adjustment built in so you can tune for sideways grip.

Fits

• Nissan Skyline (R32): Wisefab does not say whether the AWD GT-R version is covered

Before you order

• Upper control arms are NOT included. Wisefab's installation guide says aftermarket adjustable upper arms are needed.
• Requires S14 front hubs.
• Coilovers required. Designed for a ride height of about 80 mm from the front subframe to the ground.
• Depending on wheel width and offset, wider fenders or flares will be needed. No inner wheel well trimming needed with tires up to about 635 mm diameter (for example 225/45R17, 235/40R17, 235/35R18, 255/30R18).
• Minimum wheel size 17 in. Recommended backspacing about 135 mm (7 in ET45, 8 in ET35, 9 in ET20).
• Steering uses rack offset spacers on the factory rack.

Highlights

• 65 degrees of lock with parallel steering
• Ackermann is adjustable toward positive or negative in a few minutes at the track without upsetting the alignment (adjustment hardware included).
• One-piece lower control arm replaces the factory two-piece arm for stiffness at high lock; the arm is shared across Wisefab's S- and R-chassis kits
• Both knuckle joints are dropped to raise the front roll centre on a lowered car and improve camber gain
• Geometry is tuned for dynamic camber, low bump steer and controlled steering jacking across the full steering range, so the wheel self-centres instead of sticking at full lock.
• Adjustable lock stopper
• High-strength steel throughout, including sheet metal parts, tube ends and rod end housings. Rod ends and spherical bearings throughout, no rubber bushings.

In the kit

• Pre-set lower control arms
• Knuckles with hardware
• Assembled tie rods
• Installation guide
