Wisefab Front Hybrid Drift Angle Lock Kit, BMW E30 with E36 Front Suspension (WF030_36)

Angle kit for E30s that have been converted to E36 front suspension. It is the E30 kit with E36 knuckle add-ons, giving over 60 degrees of lock in a bolt-on package.

Fits

• BMW 3 Series (E30): Only for E30s running E36 front suspension

Before you order

• Your E30 must already be converted to E36 front suspension. For a factory E30 front end, use the standard E30 kit.
• Coilovers required. Wider fenders or flares are needed with this kit.
• Wisefab recommends tire diameter no larger than 620 mm (235/40R17).
• The kit bolts hub add-ons to the factory uprights: their bottom faces must be flat and clean of rust, so machine down any high spots or hammer damage before fitting.

Highlights

• Over 60 degrees of lock
• Bolt-on install with E36 knuckle add-ons
• Raised front roll centre on a lowered car, so the front anti-roll bar can be removed for maximum usable lock
• Revised Ackermann: corrects the factory tendency for the inside wheel to turn more, which costs speed and grip when drifting
• Geometry minimises positive camber on the leading wheel at high angles and controls steering jacking
• Self-aligning behaviour tuned so the wheel does not lock up at full lock

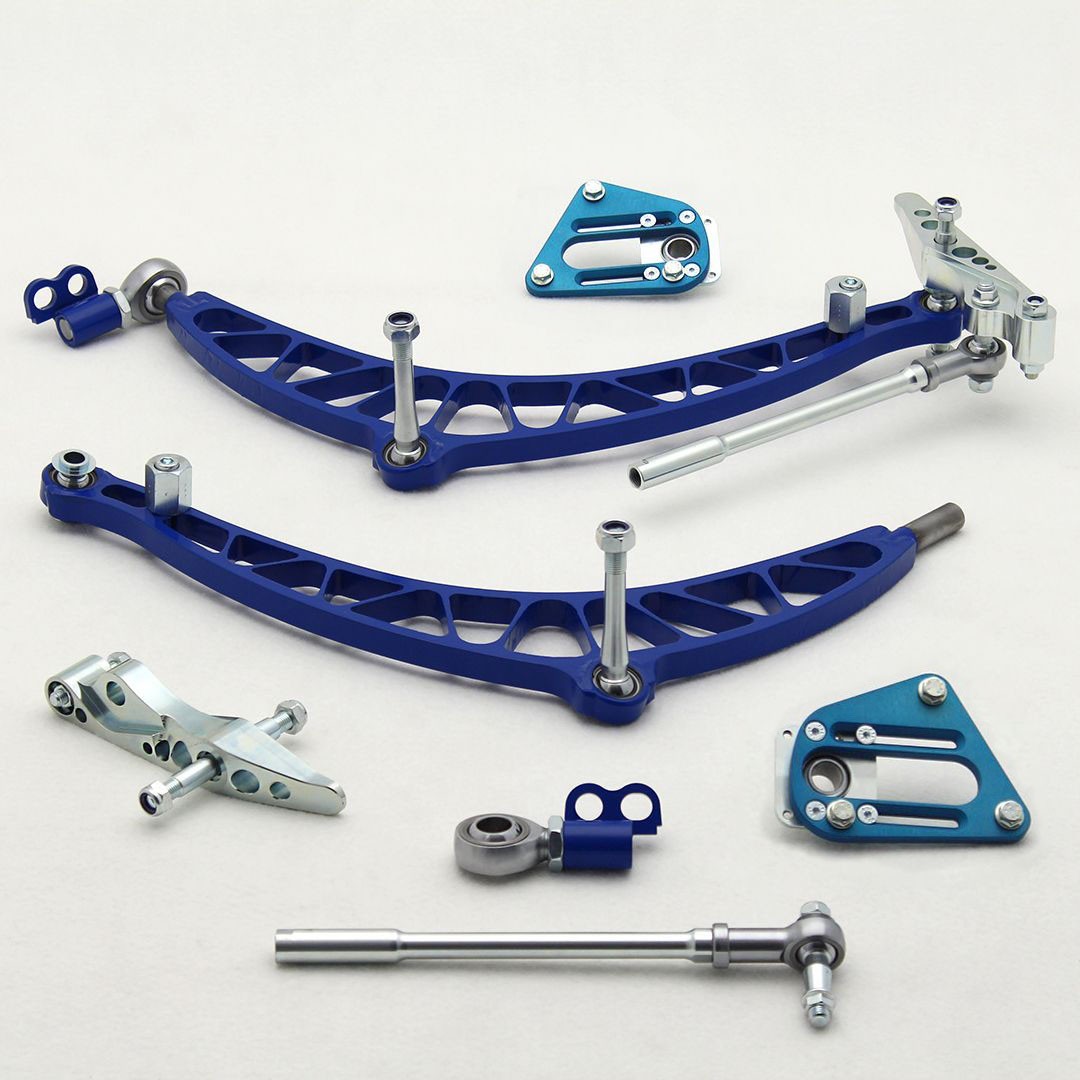

In the kit

• Adjustable coilover top mounts (Formula Drift compliant)
• Hub add-ons with hardware
• Lightweight lower control arms
• Assembled tie rods
• Adjustable lower control arm rear mounts
• Installation guide
