Wisefab Front Narrow Drift Angle Lock Kit, BMW E46 3 Series (WF046N)

The narrow kit takes the main ideas of Wisefab's pro E46 kit with fewer features and much less added width. It suits a car that has to stay streetable or an owner who would rather skip big overfenders, and it still reaches up to 55 degrees of lock.

Fits

• BMW 3 Series (E46): Does not fit M3 knuckles

Before you order

• Does not fit M3 knuckles.
• Coilovers are assumed. Wisefab quotes a perfect fit under the OE E46 fender with an 18x8.5 ET35 wheel and 235/40R18 tire; other wheel specs may need flares.
• Camber plates are not included: use the OE top mount or your coilover's camber plate.
• Wisefab does not mention the AWD E46 xi models; ask before ordering for one.

Highlights

• Up to 55 degrees of steering angle
• Raises the front roll center so the front sway bar can come off for maximum usable lock
• Revised Ackermann for drifting, so the inside wheel no longer scrubs speed and grip
• Keeps the leading wheel's positive camber at big angle as low as possible; steering jacking and lock-up controlled
• Wisefab's recommended alignment for the E46: camber -4 degrees, caster 6 degrees

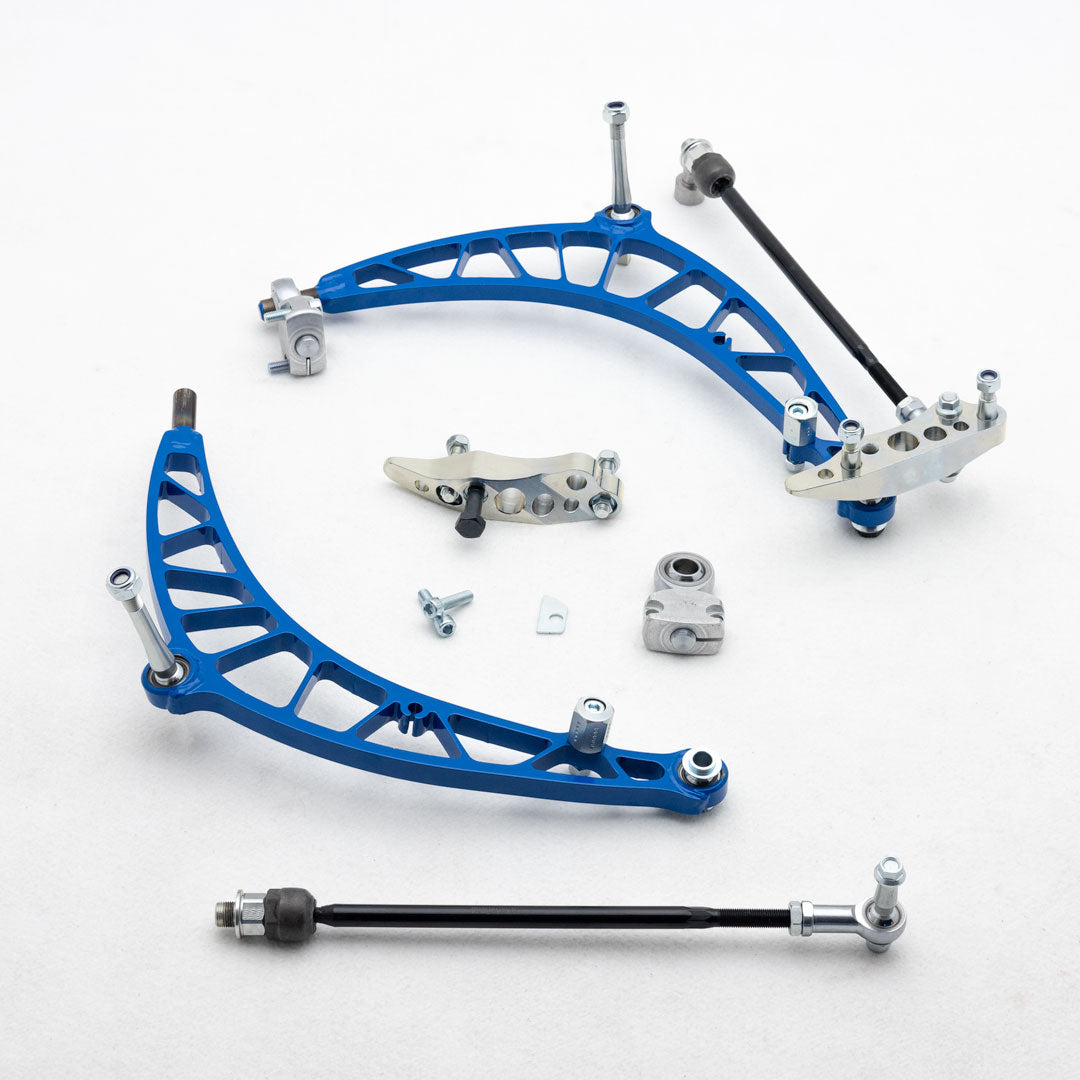

In the kit

• Knuckle add-ons with hardware
• Lightweight lower control arms
• Assembled tie rods
• Adjustable lower control arm rear mount
• Installation guide
