Wisefab
Wisefab Front Narrow Drift Angle Lock Kit, BMW E9X 3 Series / E8X 1 Series (WF900N)
$1,916.24
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A balance of street use and drift performance for the E9X and E8X. The narrower track keeps the car streetable without wide overfenders, and the kit still delivers up to 55 degrees of lock with Wisefab's geometry improvements.
Fits
- BMW 3 Series (E90): Non-M
- BMW 3 Series (E91): Non-M
- BMW 3 Series (E92): Non-M
- BMW 3 Series (E93): Non-M
- BMW 1 Series (E81): Non-M; not sold in North America
- BMW 1 Series (E82): Non-M
- BMW 1 Series (E87): Non-M; not sold in North America
- BMW 1 Series (E88): Non-M
Before you order
- Does not fit M3 knuckles. Wisefab says an M3 or 1M needs its whole front suspension and brakes converted to non-M parts first.
- Coilovers recommended for clearance. Depending on wheel spec, mild flares may be needed; Wisefab quotes a perfect fit under the OE E9X fender with 18x8 ET35 and 225/40R18.
- Sway bar links must be lengthened to 325 mm center to center (or steel E90 xDrive links shortened to 325 mm). Brake dust shields must be removed or trimmed.
- Wisefab lists chassis codes only and does not mention xDrive (AWD) cars; ask us before ordering for an xDrive car
Highlights
- Up to 55 degrees of steering lock
- Compact track width for streetable builds
- Lightweight one-piece lower control arm replaces the control arm and tension rod
- All lengths pre-set by Wisefab, no adjustment needed before alignment
- Wisefab's recommended setup: camber -5.5 degrees, caster 9 degrees, toe 2 mm out

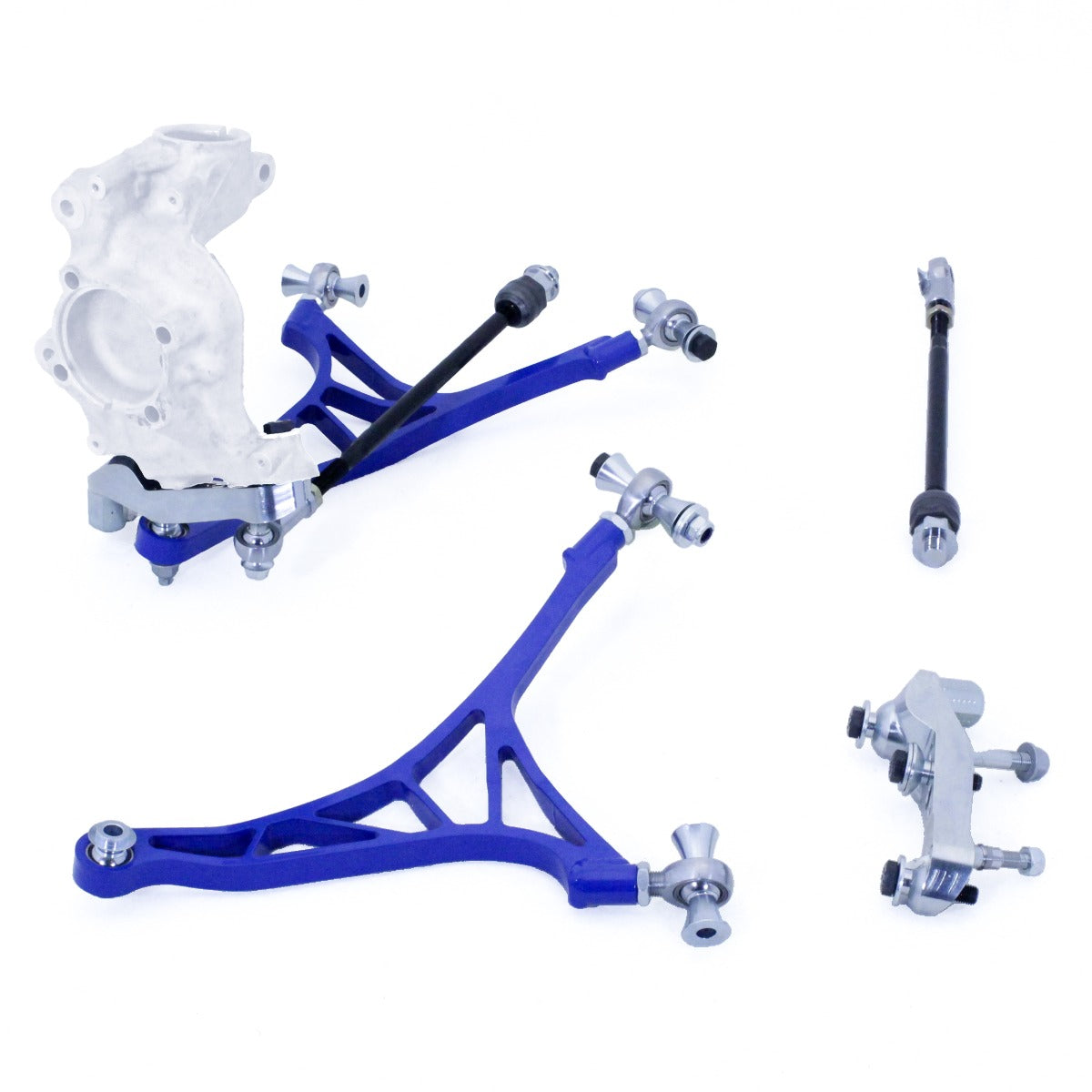

In the kit
- Knuckle add-ons with hardware
- Lightweight one-piece lower control arms
- Assembled tie rods
- Installation guide
