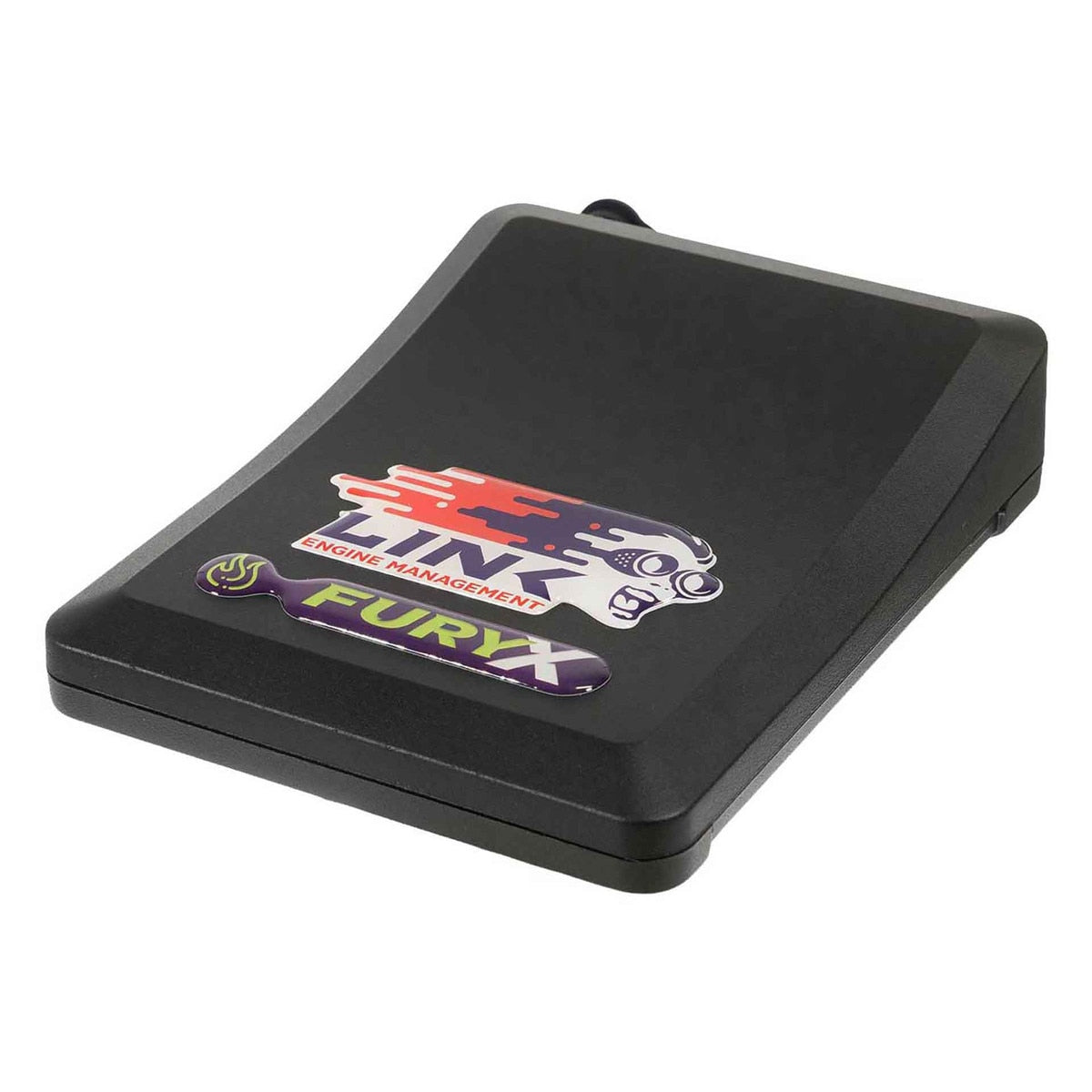

Link G4X FuryX Wire-In ECU (122-4000)
$3,205.17
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
The FuryX is the G4X wire-in with a digital wideband lambda controller built into the ECU, combined with e-throttle control and the full G4X motorsport feature set for engines up to six cylinders or three rotors. With the controller onboard, the LSU 4.9 sensor wires straight to the ECU and no separate CAN Lambda module is needed. It is the pick for street and race engines up to six cylinders that want drive-by-wire and wideband control in one unit; for eight cylinders, the XtremeX has the same feature list without the onboard wideband.
Highlights
- Onboard digital wideband lambda controller; the LSU 4.9 sensor connects directly to the ECU
- Fully programmable e-throttle control for one throttle motor
- 8 injection and 6 ignition drives for up to 6 cylinders or 3 rotors
- Two CAN buses, two knock inputs and a 3-axis accelerometer
- Direct automatic transmission control
- Launch control, anti-lag, nitrous, traction control, cruise control, gear shift and paddle shift control
- VVT control, closed-loop boost, dual closed-loop lambda, flex fuel and 512MB of onboard logging
Specifications
- Engine support: up to 6 cylinders or 3 rotors, sequential injection and direct spark
- Injection drives: 8
- Ignition drives: 6
- Auxiliary outputs: 10, with Aux 9 and 10 doubling as the e-throttle motor drive (unused injection and ignition drives can also be used as auxiliary outputs)
- Inputs: 10 digital (2 are used when the second CAN bus is active), 4 temperature, 9 analogue, 2 trigger
- Knock inputs: 2
- Wideband lambda: onboard digital controller for an LSU 4.9 sensor (sensor not included)
- E-throttle: one throttle motor
- Direct injection: Link recommends its G5 Voodoo range for direct-injection engines
- Sensor supplies: +5V and +8V
- Communications: 2 CAN buses, LTW 6-pin USB tuning connection
- Data logging: 512MB, up to 100kHz total logging rate, 250 channels
- Connectors: two 34-position Superseal (take Link's A and B looms)
- Enclosure: die-cast aluminum, 185 x 130 x 40 mm (7.28 x 5.12 x 1.57 in), 680 g
- Electrical: 6.5 to 24V operating range, 36V maximum input, 8A maximum continuous draw
- Ambient temperature: -30 to 90°C
- Manufacturing standard: ISO 13485
- In the box: FuryX ECU, USB tuning cable, mounting bracket, quick start guide, Link stickers (wiring looms and lambda sensor not included)
- Software: PCLink, a free download from Link
