AiM MXG 1.2 Strada 7 inch Digital Dash for Link ECUs, Street or Race Edition
$2,758.35
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A 7 inch colour dash made by AiM for Link ECUs, with a larger screen that fits more information on one page. It comes loaded with the Link CAN stream: enable the dash in PC Link and live engine data appears, framed by 10 RGB shift lights and 8 warning LEDs. Also offered as the 5 inch MXS and 10 inch MXT.

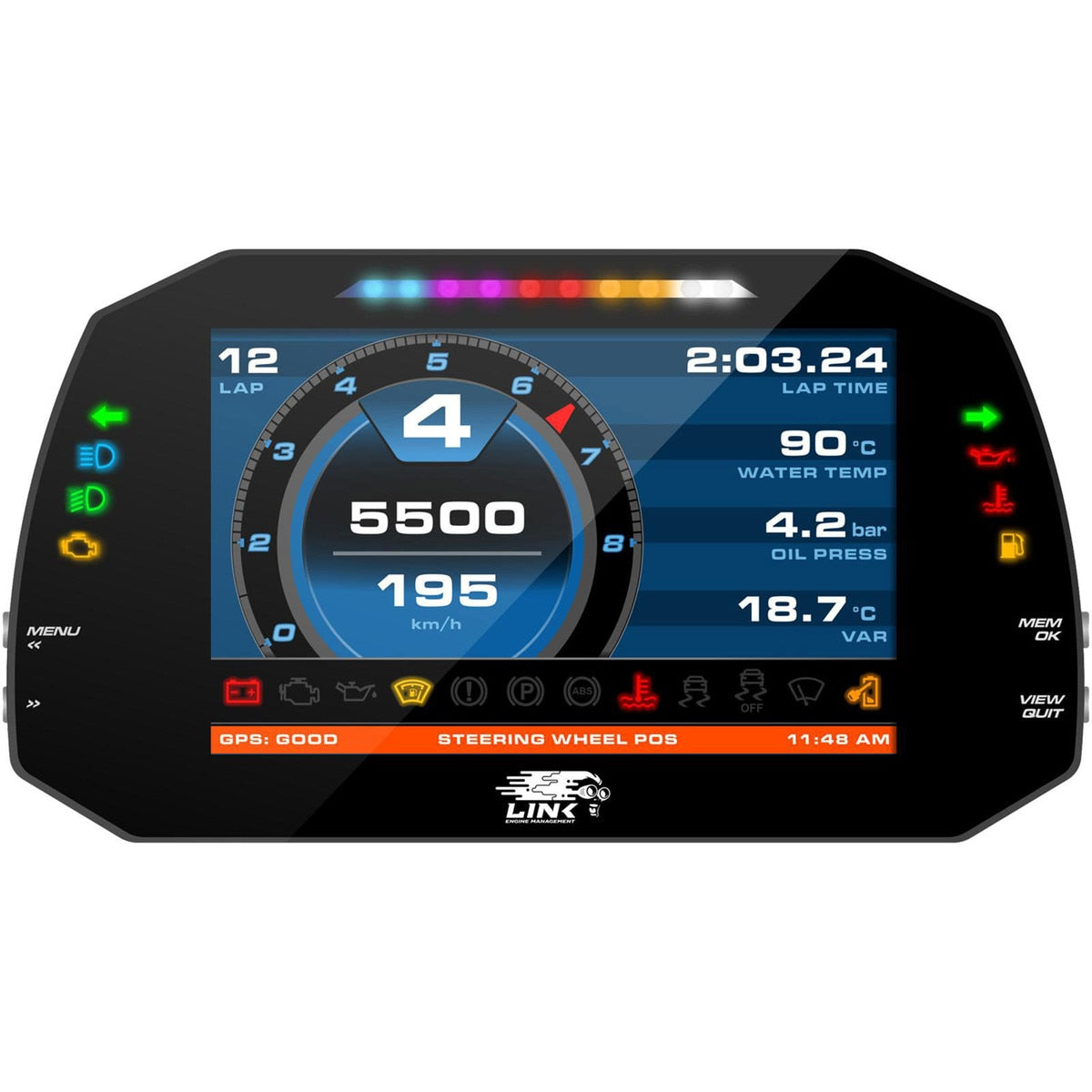

Street or Race Edition: both have the same screen, inputs and Link integration; the difference is the warning lights down the side. The Street Edition carries printed street icons, while the Race Edition has eight plain RGB alarm LEDs you can set up as any warning you like, which suits motorsport use.
Highlights
- 7 inch TFT at 800 x 480, 1000:1 contrast, automatic brightness from an ambient light sensor
- Pre-configured for all Link G4+, G4X and G5 wire-in and plug-in ECUs: enable it in PC Link and it connects
- 10 configurable RGB shift lights, 8 RGB warning LEDs and a custom warning screen across multiple page layouts
- 3 CAN ports, plus CAN, RS232 and K-Line support for other ECUs
- 8 configurable analog inputs (up to 1 kHz each), dedicated speed and coil RPM inputs, 1 digital output
- Expands with AiM CAN accessories such as the GPS09 module (100-0170), channel expansion, TC Hub, lambda controller and SmartyCam HD
Specifications
- Display: 7 inch TFT, 800 x 480 pixels
- Contrast ratio: 1000:1
- Brightness: 700 cd/m²
- CAN ports: 3
- Analog inputs: 8
- Digital inputs: 1 speed, 1 coil RPM
- Digital output: 1 (1 A max)
- Connectors: 2 AMPSEAL (23-pin 770680-1, 14-pin 776273-2) plus 1 Binder
- Current draw: 400 mA
- Ingress rating: IP67
- Case: anodised aluminium with metal push buttons
- Dimensions: 237 x 127.6 x 26 mm
- Weight: 950 g
- In the box: display, USB cable, 14-pin standard wiring, 23-pin connector and contacts
- Connecting to a Link ECU: plug-in ECUs take the CAN cable that matches their CAN connector, CANJST (101-0197) for the 5-pin type or CANJST4 (101-0198) for the 4-pin powered type. Wire-in ECUs use the CANSS (101-0210) or CANLTW (101-0211) cable.
