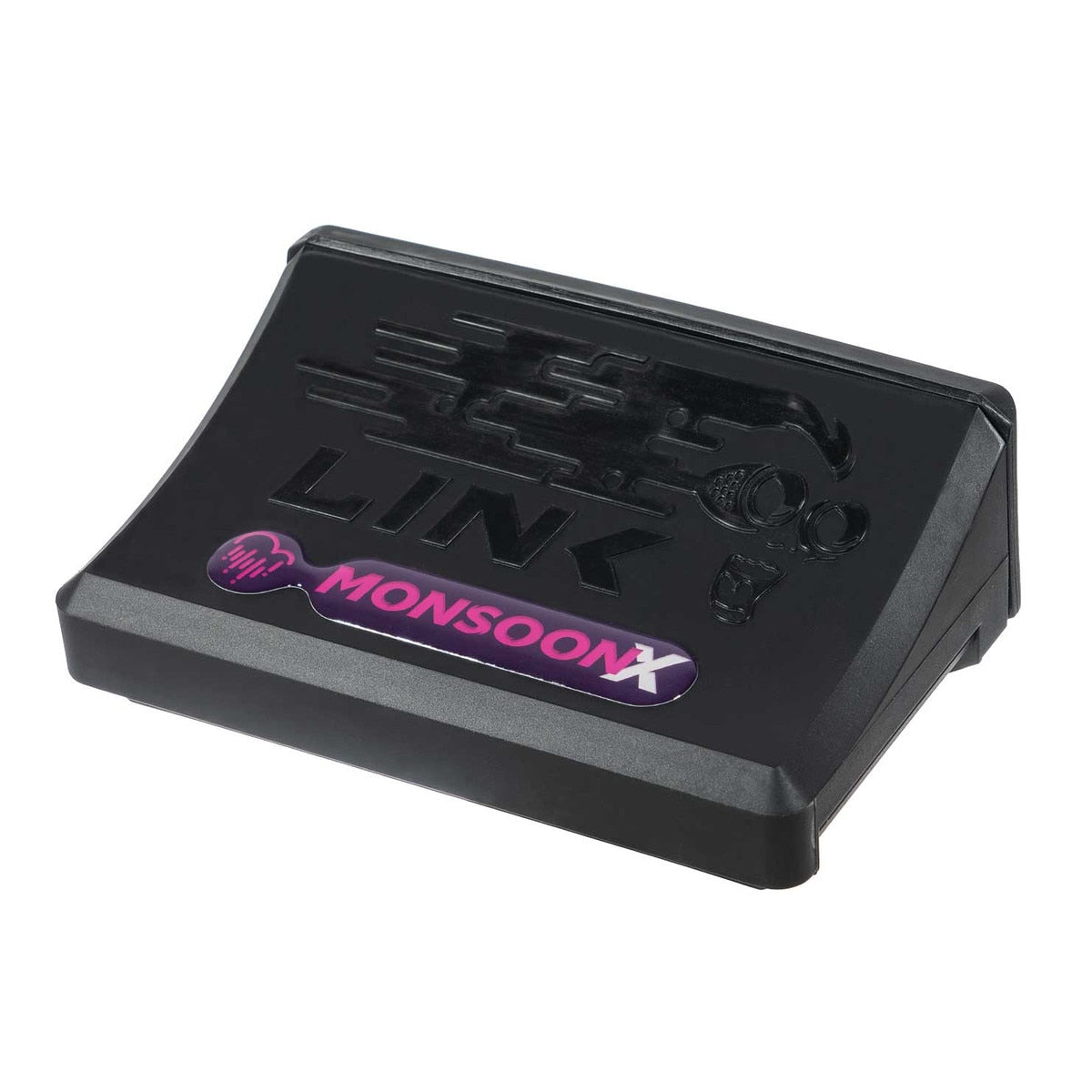

Link G4X MonsoonX Wire-In ECU (127-4000)

The MonsoonX builds on the AtomX for engines up to four cylinders or two rotors, adding a built-in MAP sensor, more auxiliary outputs and inputs, and features such as VVT, closed-loop boost, launch control and anti-lag. Link aims it at naturally aspirated and turbocharged builds that want a few advanced functions without moving up to the larger G4X units. Its I/O is limited, so it can run any of those features but not all of them at once; map out your pin use before choosing it.

Highlights

• Built-in MAP sensor
• VVT control, open- and closed-loop boost control and dual closed-loop lambda
• Launch control, anti-lag, gear shift and paddle shift control, as I/O allows
• Flex fuel, flexible engine protection limiters, a built-in trigger oscilloscope and 8 custom math blocks
• CAN bus with CAN keypad control and CAN or serial data for aftermarket dashes
• 512MB of onboard data logging

Specifications

• Engine support: up to 4 cylinders or 2 rotors, sequential injection and direct spark
• Injection drives: 4
• Ignition drives: 4 (spare ignition drives can be used as auxiliary outputs)
• Auxiliary outputs: 6
• Inputs: 4 digital, 2 temperature, 4 analogue, 2 trigger (spare temperature and analogue inputs can act as digital inputs)
• Knock inputs: 1 (shares its pin with digital input 4)
• MAP sensor: built in
• E-throttle: not supported (see the XtremeX or FuryX)
• Wideband lambda: add an external controller such as Link's CAN Lambda (the FuryX has one built in)
• Direct injection: Link recommends its G5 Voodoo range for direct-injection engines
• Sensor supply: +5V
• Communications: 1 CAN bus, Mini-B USB tuning port
• Data logging: 512MB, up to 100kHz total logging rate, 250 channels
• Connector: one 34-position Superseal (takes Link's A loom)
• Enclosure: glass-filled nylon, 95 x 130 x 45 mm (3.74 x 5.12 x 1.77 in), 220 g
• Electrical: 6.5 to 24V operating range, 36V maximum input, 3A maximum continuous draw
• Ambient temperature: -30 to 90°C
• Manufacturing standard: ISO 13485
• In the box: MonsoonX ECU, USB tuning cable, mounting bracket, quick start guide, Link stickers (wiring loom not included)
• Software: PCLink, a free download from Link
