AiM MXS 1.2 Strada 5 inch Digital Dash for Link ECUs, Street or Race Edition

A 5 inch colour dash made by AiM for Link ECUs. It arrives loaded with the Link CAN stream, so once the dash is enabled in PC Link it shows live engine data, with 10 RGB shift lights, 6 warning LEDs and multiple page layouts in a compact case. Also offered as the 7 inch MXG and 10 inch MXT.

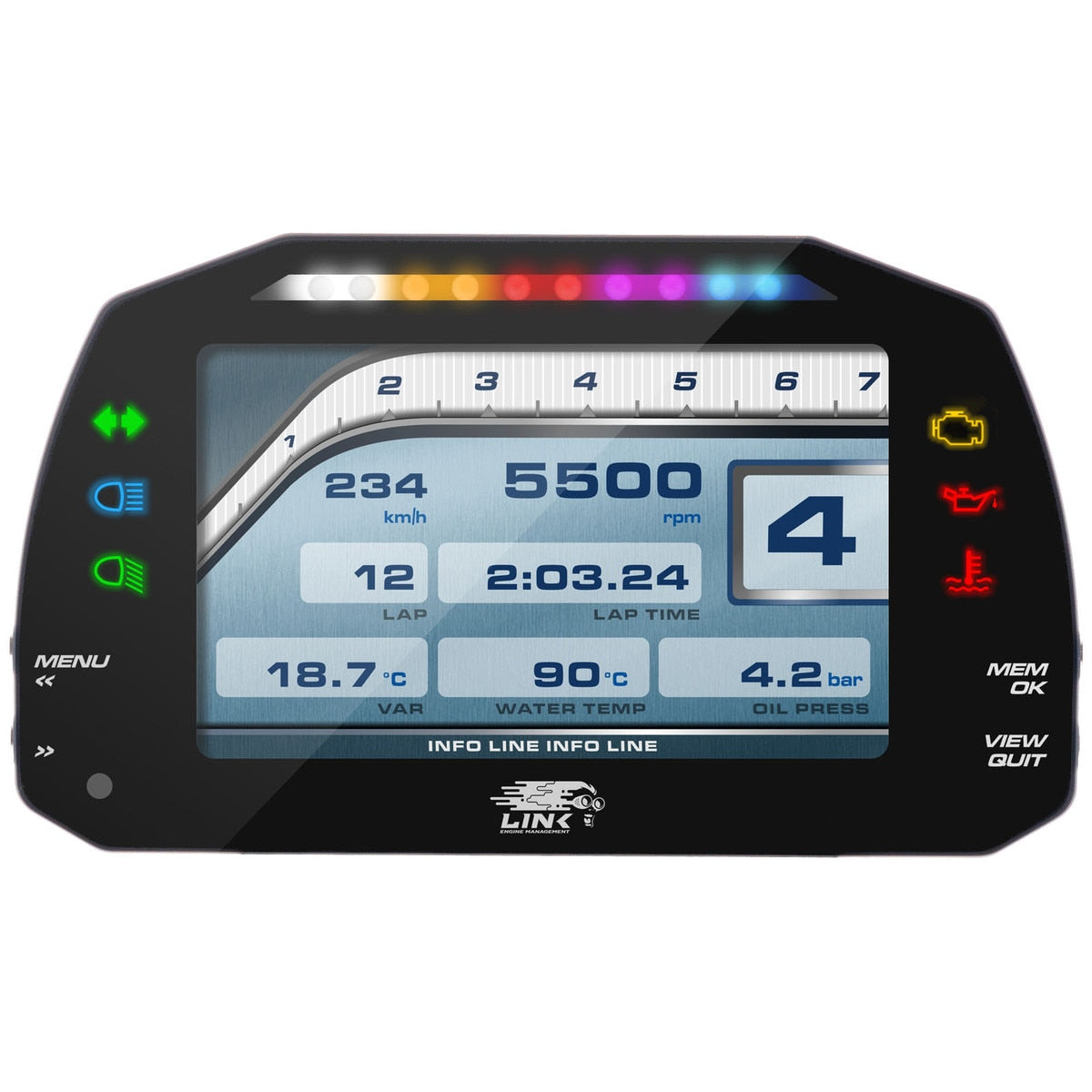

Street or Race Edition: both have the same screen, inputs and Link integration; the difference is the warning lights down the side. The Street Edition has printed street icons, including turn signals, high beam, oil pressure, water temperature and a check engine light. The Race Edition has six plain RGB LEDs you can assign to whatever alarms and warnings you need, which suits motorsport use.

Highlights

• 5 inch TFT at 800 x 480 with automatic brightness from an ambient light sensor
• Pre-configured for all Link G4+, G4X and G5 wire-in and plug-in ECUs: enable it in PC Link and it connects
• 10 configurable RGB shift lights, 6 RGB warning LEDs and a custom warning screen; layouts and shift lights can be tailored in PC Link or AiM software
• 2 CAN ports, plus CAN, RS232 and K-Line support for other ECUs
• Dedicated speed and coil RPM inputs, configurable analog inputs and a digital output
• Expands with AiM CAN accessories such as the GPS09 module (100-0170), channel expansion, TC Hub, lambda controller and SmartyCam HD

Specifications

• Display: 5 inch TFT, 800 x 480 pixels
• Contrast ratio: 600:1
• Brightness: 700 cd/m²
• CAN ports: 2
• Digital inputs: 1 speed, 1 coil RPM
• Digital output: 1 (1 A max)
• Connectors: 2 AMPSEAL (23-pin 770680-1, 14-pin 776273-2)
• Current draw: 400 mA
• Ingress rating: IP65
• Case: anodised aluminium with metal push buttons
• Dimensions: 169.4 x 97 x 23 mm
• Weight: 480 g
• In the box: display, USB cable, 14-pin standard wiring, 23-pin connector and contacts
• Connecting to a Link ECU: plug-in ECUs take the CAN cable that matches their CAN connector, CANJST (101-0197) for the 5-pin type or CANJST4 (101-0198) for the 4-pin powered type. Wire-in ECUs use the CANSS (101-0210) or CANLTW (101-0211) cable.
