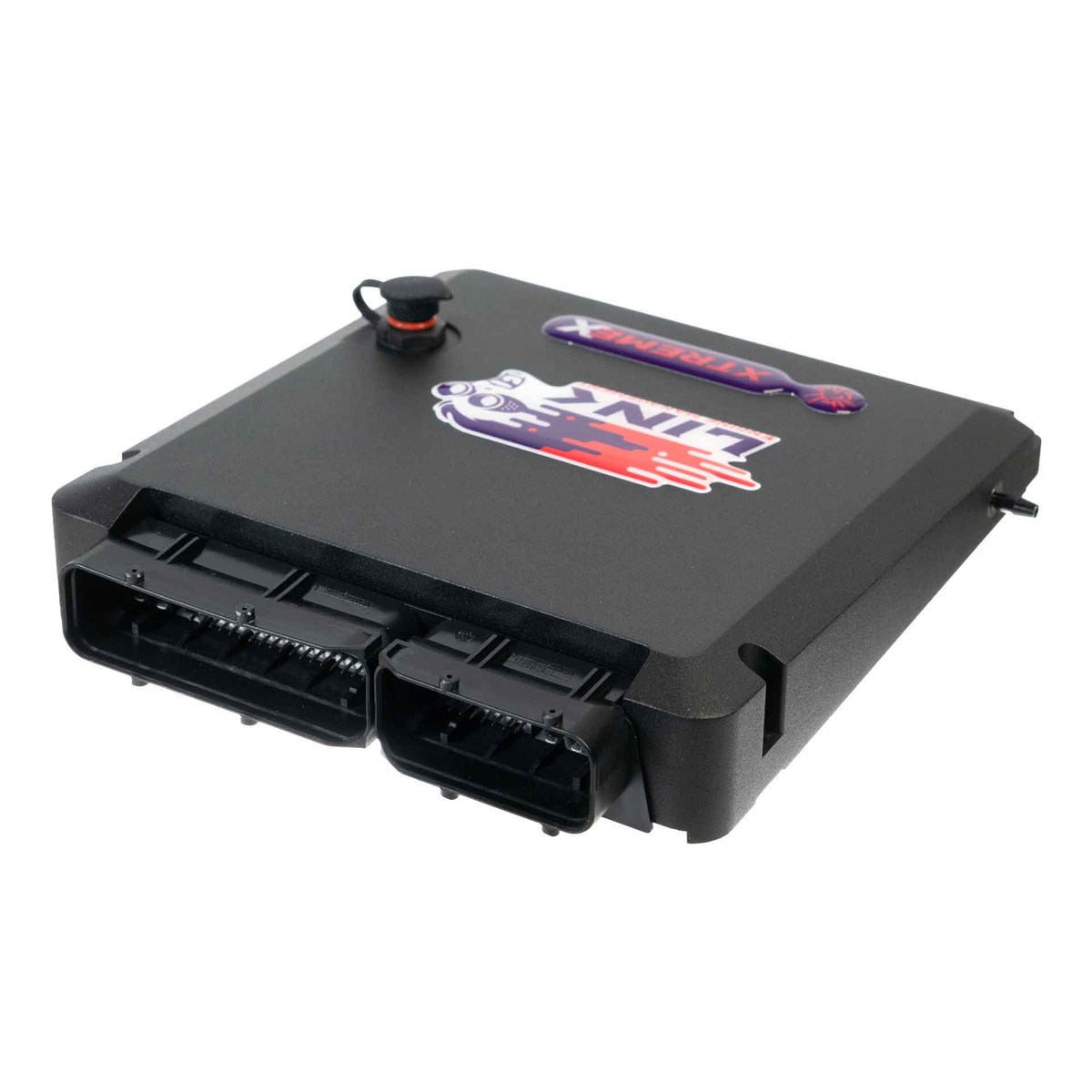

Link G4X N350X Plug-In ECU, Nissan 350Z, Infiniti G35 and Skyline V35 VQ35DE

The Link G4X N350X is a plug-in ECU for VQ35DE-powered Z33 350Z, Infiniti G35 and V35 Skyline models. It mounts in the factory location using the factory base plate, locks onto the original connector and runs the drive-by-wire throttle itself. Manual and automatic cars are both supported, and the ECU picks up gear and shifter position from the automatic over the factory CAN network.

Fits

• Nissan 350Z (Z33, Fairlady Z) with the VQ35DE, 2002-2006
• Infiniti G35 with the VQ35DE, 2003-2006
• Nissan Skyline V35 with the VQ35DE, 2003-2006
• Manual or automatic transmission; dual or quad VVT engines

Before you order

• VQ35DE only. The later VQ35HR engine is not supported.
• Link highly recommends fitting an aftermarket intake air temperature sensor, because the factory sensor sits in the MAF.
• On engines with four oxygen sensors, the heaters on the rear two sensors will not work.
• If your engine's front oxygen sensors are factory wideband type, the ECU cannot read them; Link suggests aftermarket wideband sensors with a 0-5 V controller.
• A vacuum line needs to run from the intake manifold to the ECU's MAP port.
• Compare your factory ECU plug with the header photo before ordering.

Highlights

• Built-in electronic throttle control for the factory drive-by-wire throttle
• Onboard MAP sensor, rated 4 bar or 7 bar depending on board revision
• Factory CAN integration: wheel speeds, A/C request, automatic gear and shifter position, torque-reduction requests and an optional immobiliser signal; engine fans and A/C clutch are commanded over CAN
• Uses the factory ECU base plate (four M4 cap screws supplied) and mounts in the factory location, with a startup map included
• G4X core features: flex fuel, open and closed-loop boost control, dual closed-loop lambda, VVT control, a built-in trigger oscilloscope and 512 MB of onboard logging
• Motorsport functions: launch control, anti-lag, traction control, nitrous control, cruise control, gear shift and paddle shift control
• USB tuning cable in the box; PCLink tuning software is a free download from Link

Specifications

• Platform: Link G4X
• Communications: 2 CAN bus channels (one connects to the factory network), LTW 6-pin USB tuning connection
• Data logging: 512 MB onboard
• Operating voltage: 6.5-24 V (36 V maximum input)
• Dimensions: 190 x 180 x 40 mm (7.48 x 7.09 x 1.57 in)
• Weight: 720 g (25.4 oz)
• In the box: N350X ECU, anti-static strap, four M4 x 16 cap screws, USB tuning cable, Link stickers, plug-in manual card, product registration card
