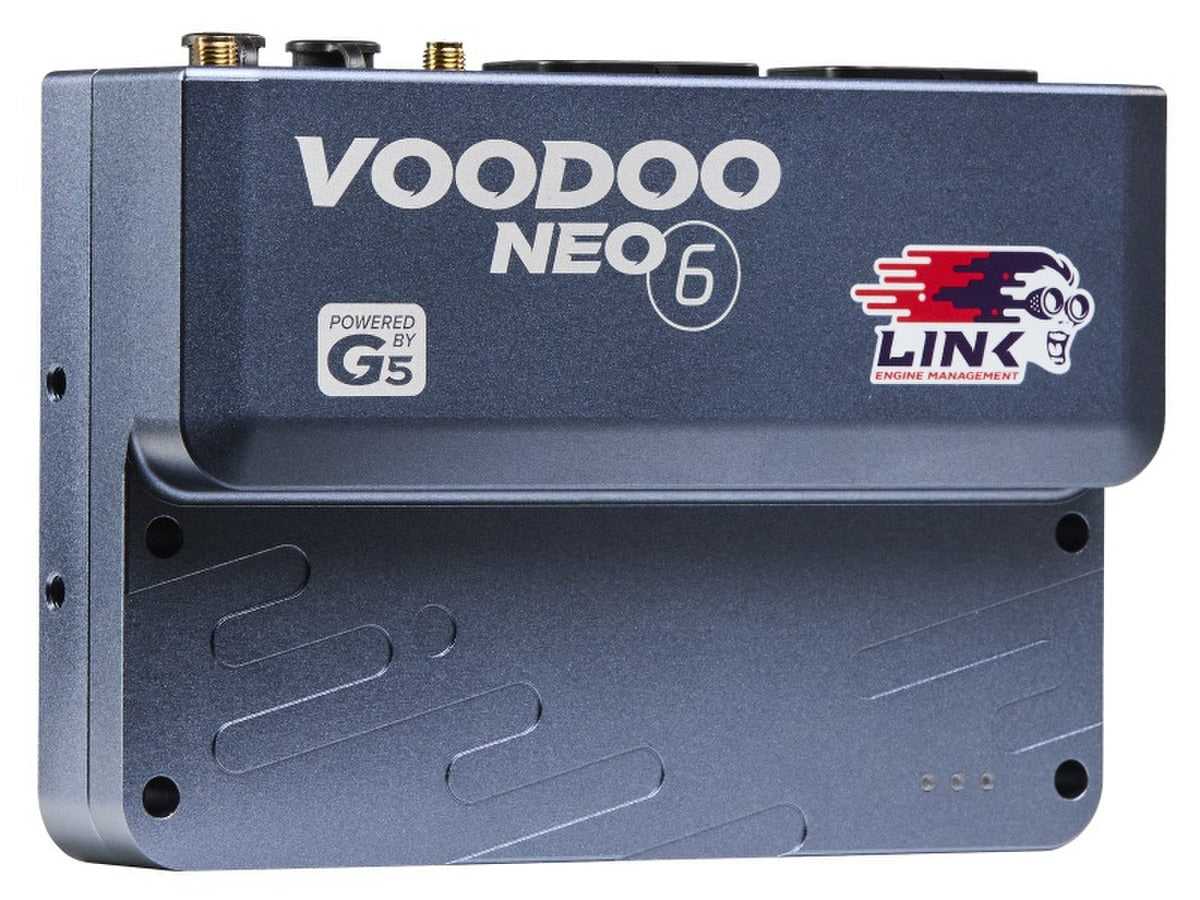

Link G5 Voodoo Neo 6 Wire-In ECU (156-5000)

The G5 Voodoo Neo 6 is the larger Neo, built for up to eight cylinders with sequential port or direct injection, or six cylinders running staged direct and port injection with dual high-pressure pumps. Direct injectors run through an external driver box such as Link's DI Driver-4. Choose it over the Neo 4 for six-cylinder staged direct and port injection, dual high-pressure pumps or V8s; the Voodoo Pro is the step up for up to twelve cylinders, two onboard wideband controllers and 14 analogue inputs.

Highlights

• 12 injection and 8 ignition drives; direct injection runs through an external driver box
• Two onboard H-bridges for dual e-throttle control, also able to drive low-power e-wastegates
• Onboard digital wideband lambda controller
• GPS, Wi-Fi, Ethernet, two CAN buses and USB-C tuning with power over USB
• Six ADIO pins that work as auxiliary outputs, analogue inputs or switched digital inputs
• Direct automatic transmission control, a 3-axis accelerometer and the full motorsport set: launch, anti-lag, nitrous, traction, cruise, gear shift and paddle shift control
• 1GB of onboard data logging

Specifications

• Engine support: up to 8 cylinders with sequential port or direct injection and direct spark, or 6 cylinders with staged direct and port injection, dual high-pressure pumps and direct spark
• Injection drives: 12 (drives 9 to 12 share pins with digital inputs 7 to 10; direct injection via an external driver box)
• Ignition drives: 8
• Auxiliary outputs: 6 (unused injection and ignition drives can also be used as auxiliary outputs)
• ADIO pins: 6 (auxiliary output, analogue input or switched digital input)
• Inputs: 10 digital (including the 4 shared pins), 4 temperature with selectable 1k or 10k ohm pull-ups, 3 analogue, 2 trigger
• Knock inputs: 2
• Wideband lambda: 1 onboard digital controller
• E-throttle: dual, via two onboard H-bridges
• Sensor supply: +5V
• Communications: 2 CAN buses, Wi-Fi, Ethernet, GPS, USB-C tuning with power over USB
• Data logging: 1GB, up to 100kHz total logging rate, 250 channels
• Connectors: two 34-position Superseal
• Enclosure: sealed 6061-T6 CNC billet aluminum, 107 x 158 x 45 mm (4.21 x 6.22 x 1.77 in), 730 g
• Electrical: 6 to 30V operating range, 30V maximum input, 17A maximum continuous draw
• In the box: Neo 6 ECU, USB-C cable, Wi-Fi antenna, 4 m GPS antenna (magnetic or adhesive mount), USB-C and SMA dust covers, quick start guide, installer I/O table, Link stickers (wiring looms not included)
• Software: PCLink, a free download from Link
