Wisefab Front Drift Angle Lock Kit, Nissan 350Z / Infiniti G35 (WF350)

Front angle kit for the 350Z and G35 with new upper and lower control arms, knuckles and tie rods. It raises steering angle and sorts out the geometry for aggressive driving, and can be paired with Wisefab's separate 350Z rack relocation kit to move the rack forward instead of using rack offset spacers.

Fits

• Nissan 350Z (Z33)
• Infiniti G35 (V35): Wisefab does not address the AWD G35x

Before you order

• Coilovers required. Designed for a ride height of about 80 mm from the front subframe to the ground.
• Depending on wheel width and offset, wider fenders or flares will be needed. No inner wheel well trimming needed with tires up to about 635 mm diameter (for example 215/45R17, 235/40R17, 225/40R18).
• Minimum wheel size 17 in. Recommended backspacing about 135 mm (7 in ET45, 8 in ET35, 9 in ET20). Wisefab quotes the front track at 90 mm wider per side than factory.
• Tie rods are cut to length during install to suit your rack (Wisefab gives lengths for both the 670 mm and 705 mm factory racks, with spacers or relocation).
• This is the standard-width kit; Wisefab also makes a separate narrow version.

Highlights

• 65 degrees of lock with parallel steering
• Ackermann is adjustable toward positive or negative in a few minutes at the track without upsetting the alignment (adjustment hardware included).
• One-piece lower control arm for stiffness and packaging at high lock
• Both knuckle joints dropped to raise the front roll centre on a lowered car, so the front anti-roll bar can come off
• Geometry is tuned for dynamic camber, low bump steer and controlled steering jacking across the full steering range, so the wheel self-centres instead of sticking at full lock.
• Three lower shock positions change motion ratio for quick stiffness and balance changes
• Adjustable lock stoppers

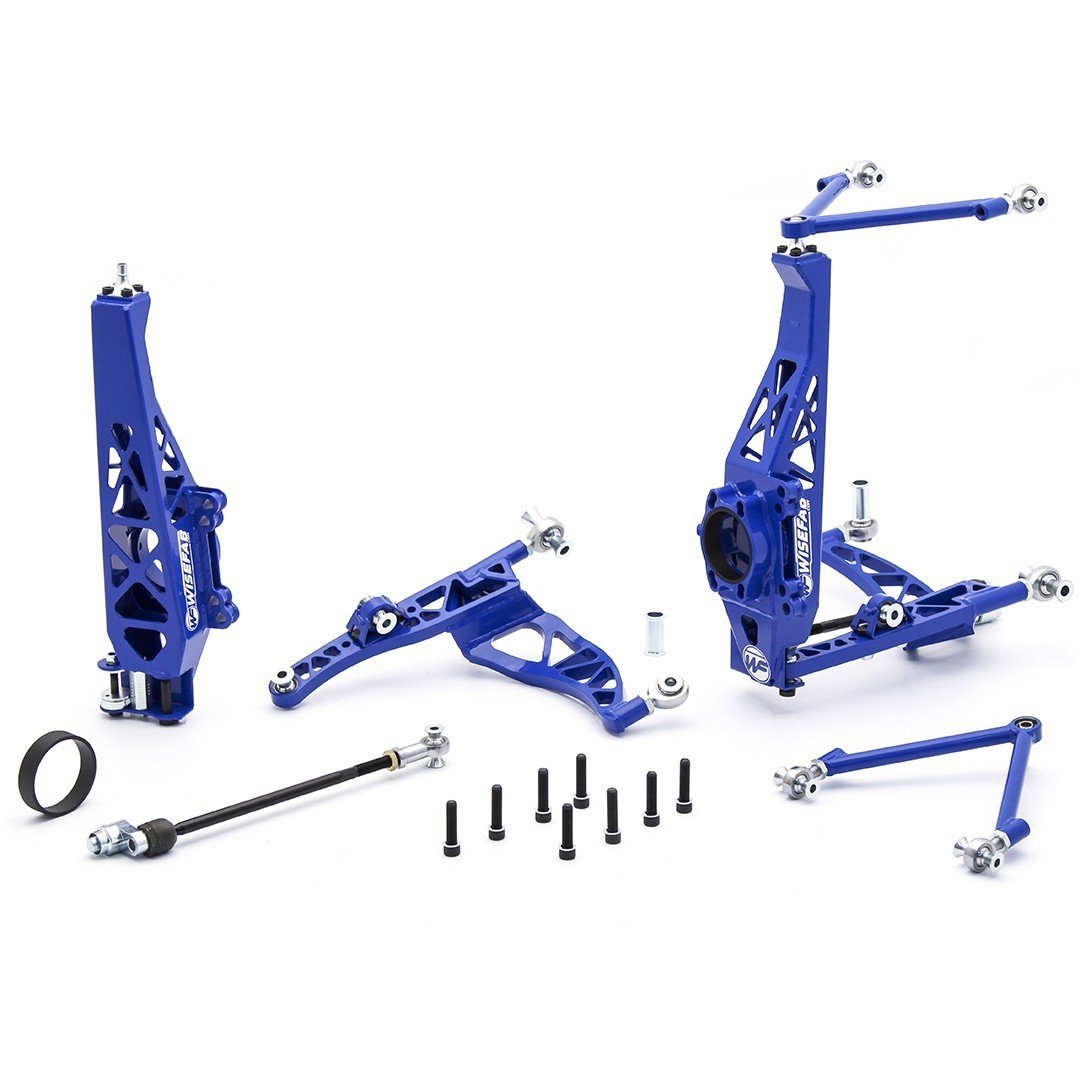

In the kit

• Pre-set upper and lower control arms
• Knuckles with hardware
• Assembled tie rods
• Installation guide
