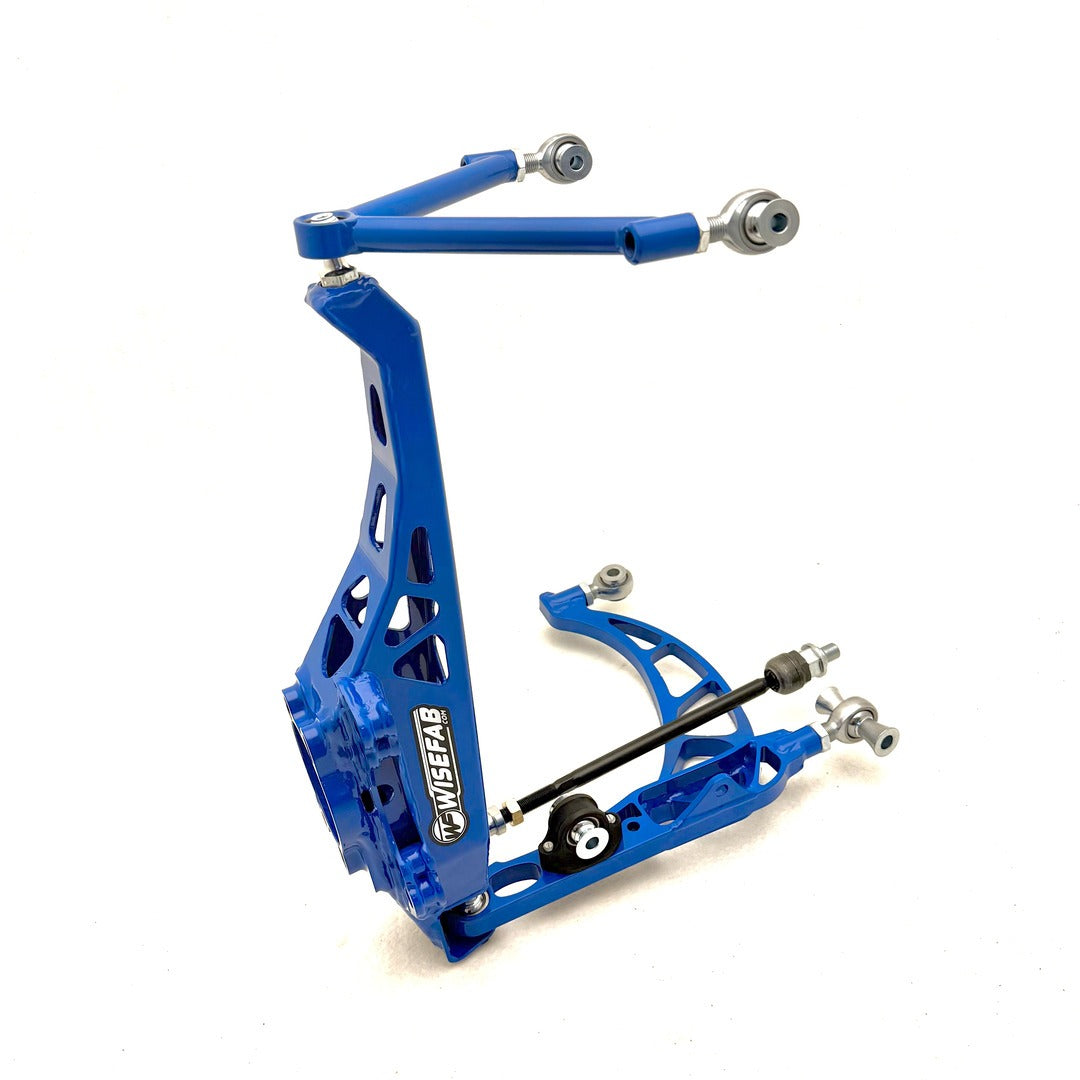

Wisefab Front Narrow Drift Angle Lock Kit, Nissan 350Z / Infiniti G35 (WF350N)

The narrow kit gives a 350Z real Wisefab geometry and big lock while keeping the wheels under the stock fenders. It is aimed at grassroots drifters and track day drivers who want the steering feel without a full competition widebody setup.

Fits

• Nissan 350Z (Z33)
• Infiniti G35 (V35, 2003-2006): RWD only; Wisefab's manual states 02-06 Infiniti G35 RWD

Before you order

• Minimum 17 in wheel. Wisefab says 17x8.5 ET30 or 18x8.5 ET30 fits under the OEM fenders.
• Stock brakes and bearings can stay, or move to 370Z bearings and/or brakes (then discard the bearing adapter ring).
• Tie rods are cut to suit your rack length: 316 mm for a 705 mm rack, 323 mm for 690 mm, 333 mm for 670 mm.

Highlights

• 55+ degrees of lock with parallel steering
• Ackermann can be moved toward positive or negative in a few minutes, even trackside, without upsetting the alignment (adjustment hardware included)
• One-piece lower control arm for stiffness and packaging at high angle
• Both knuckle joints dropped to raise the front roll center, so the front sway bar can come off
• Revised geometry keeps steering jacking in check at big angle, and self-aligning torque stays consistent so the wheel keeps returning instead of hanging at full lock
• Adjustable lock stops; factory ABS sensors can be used
• Wisefab's recommended alignment: camber -5.5 degrees, caster 5.7 degrees, total toe 2 mm with zero or negative Ackermann, 0 with positive

In the kit

• Pre-set upper and lower control arms
• Knuckles with hardware
• Assembled tie rods
• Installation guide
