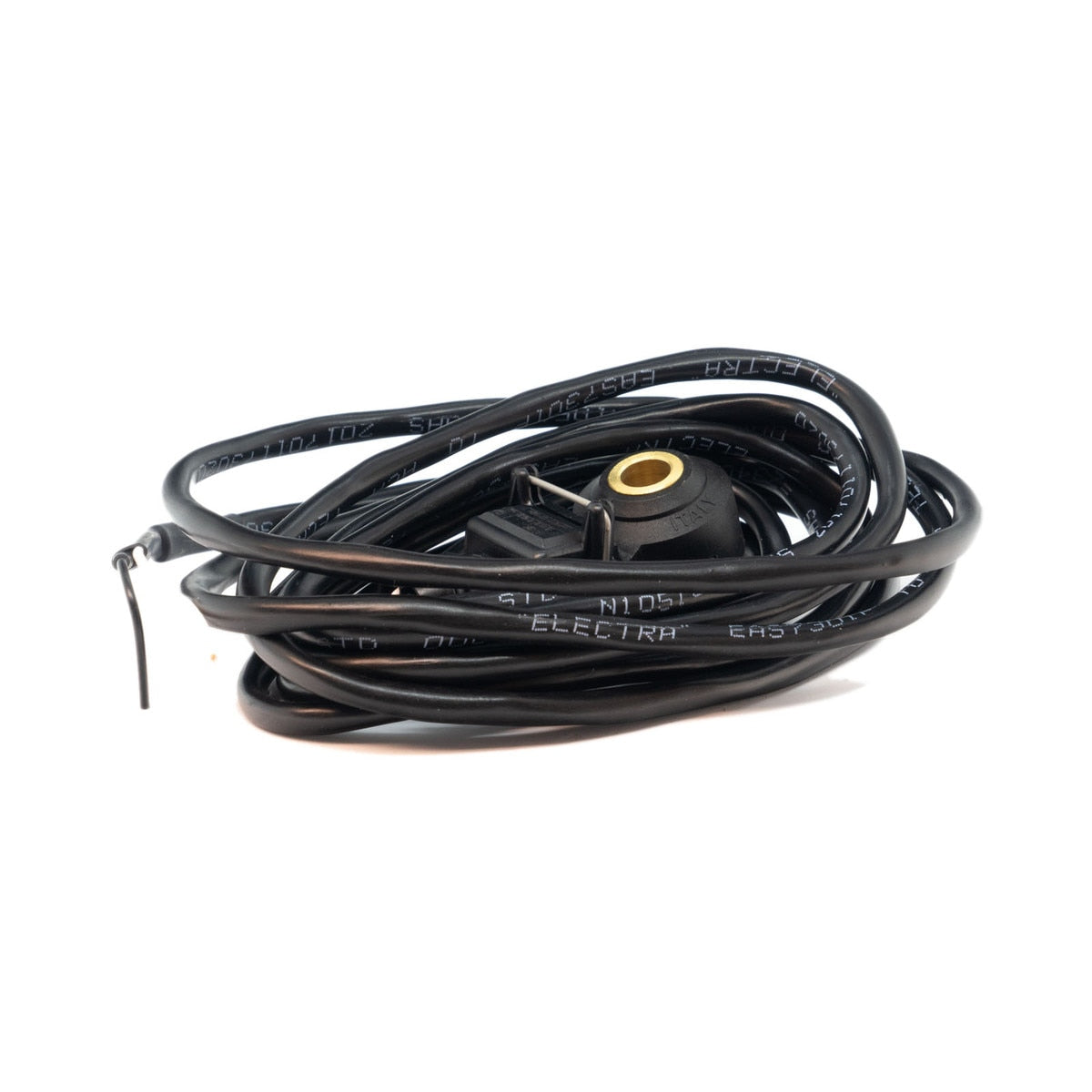

Link Knock Sensor with 2.6m Loom (KNSB)
$214.65
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
The same Facet 9.3010 non-resonant knock sensor as Link's KNS, supplied pre-wired on a 2.6 m loom that ends in flying leads, so it is ready to run back to the ECU. Link also points to it as a good match for its KnockLink visual warning light.
Highlights
- Pre-wired 2.6 m loom with flying leads
- For Link ECUs with knock detection, and other aftermarket ECUs with compatible knock inputs
- Non-resonant piezoelectric sensor, flat frequency response
- IP68 sealed, rated -40 to +150°C
- Bolts to a flat spot on the block at 20 ± 5 Nm; some engines need more than one sensor
Specifications
- Sensor: Facet 9.3010, non-resonant piezoelectric, donut type
- Sensitivity: 25 mV/g
- Loom: 2.6 m with flying leads
- Mounting hole: 8 mm
- Tightening torque: 20 ± 5 Nm
- Weight: 125 g
- In the box: knock sensor, 2.6 m loom, Bosch-style plug
