Link ECU

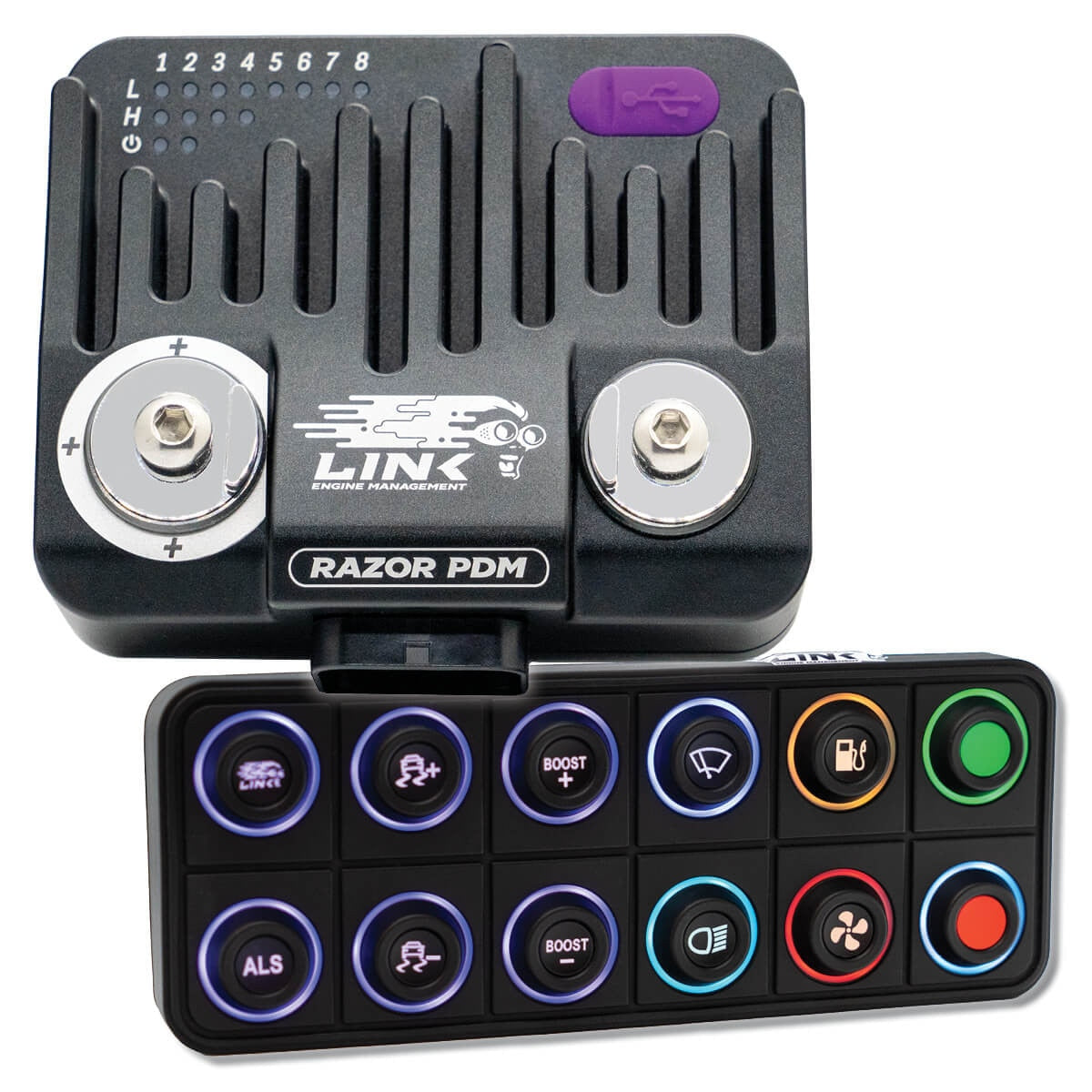

Link Razor PDM and 12 Button CAN Keypad Bundle (135-9500B)
$2,292.54
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A Razor PDM paired with Link's 12-button CAN keypad: a ready starting point for switching fuel pumps, fans, lights and other loads from the cabin without fuses and relays. Keypad buttons can drive PDM outputs, Link ECU functions or both.
Highlights
- Razor PDM: 4 high-power outputs (25 A continuous each) and 8 ADIO pins, up to 100 A combined
- 12-button CAN keypad with a configurable RGB indicator ring on every button
- Keypad sealed to IP67/IP69K with switches rated to 3 million operations
- Keypad takes 15 mm inserts, sold separately (one Link logo insert included)
- PDM set up over USB-C in Link's free PDM Link software; works with a Link ECU or on its own
Specifications
- PDM operating voltage: 6-24 V
- PDM communications: 1 CAN bus, 1 USB Type-C
- Keypad: 12 buttons, Deutsch DTM 4-pin connector, 8-32 V
- Keypad operating temperature: -40 to +70 °C
- Keypad compatibility: all Link G4X and G5 ECUs
- PDM comes with: mounting plate and screws, Superseal C plug and pin kit, USB-C cable, positive terminal insulation boot, 2 high-current ring terminals with bolts, quick start guide
