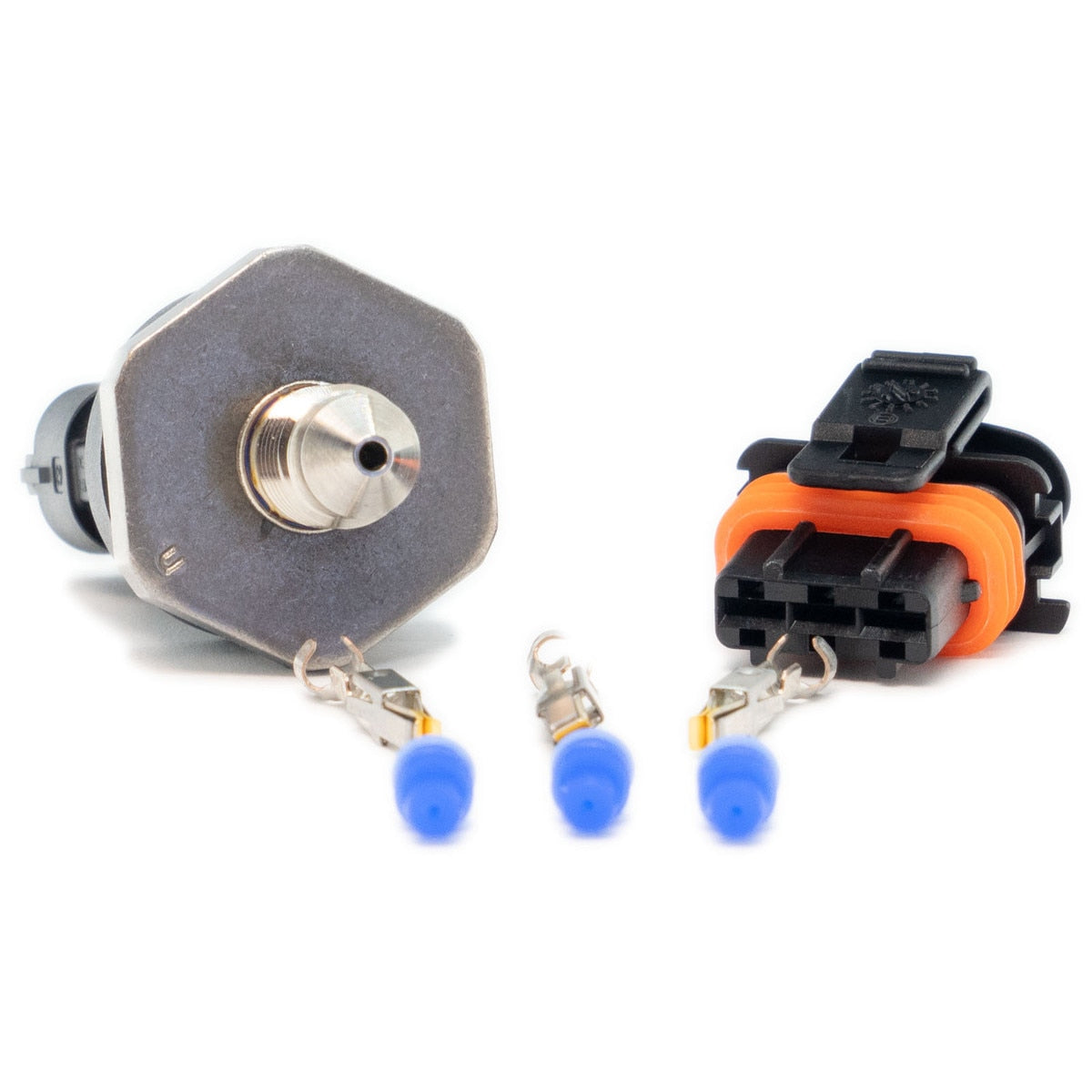

Link 140 Bar (2030 psi) Liquid Pressure Sensor, M10 x 1 (HPS)
$189.83
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A compact Bosch sensor for liquid pressures up to 140 bar (2030 psi), with an M10 x 1 thread and 45° cone seat. Suited to fuel, oil and hydraulic pressure measurement.
Highlights
- 0-140 bar (0-2030 psi) range, for liquids only
- M10 x 1 thread with 45° cone seat
- Compact 3-pin connector, mating plug included
- Reads pressure above atmospheric only, so it can't read vacuum
- Need a 1/8 NPT or 1/8 BSP port? Link's M10 x 1 adapters (101-0193, 101-0199) suit Bosch metric pressure sensors
Specifications
- Range: 0-140 bar (0-2030 psi)
- Thread: M10 x 1, 45° cone seat
- Calibration: 0.5 V = 0 kPa, 4.5 V = 14,000 kPa
- PC Link calibration: "Bosch 140Bar 0 261 545 053"
- Supply: 4.75-5.25 V
- Connector: compact 3-pin
- Weight: 40 g
- In the box: sensor, mating 3-pin connector, printed instructions
Note: Install with the pressure tube pointing downward, anywhere from vertical to 90° either side.
