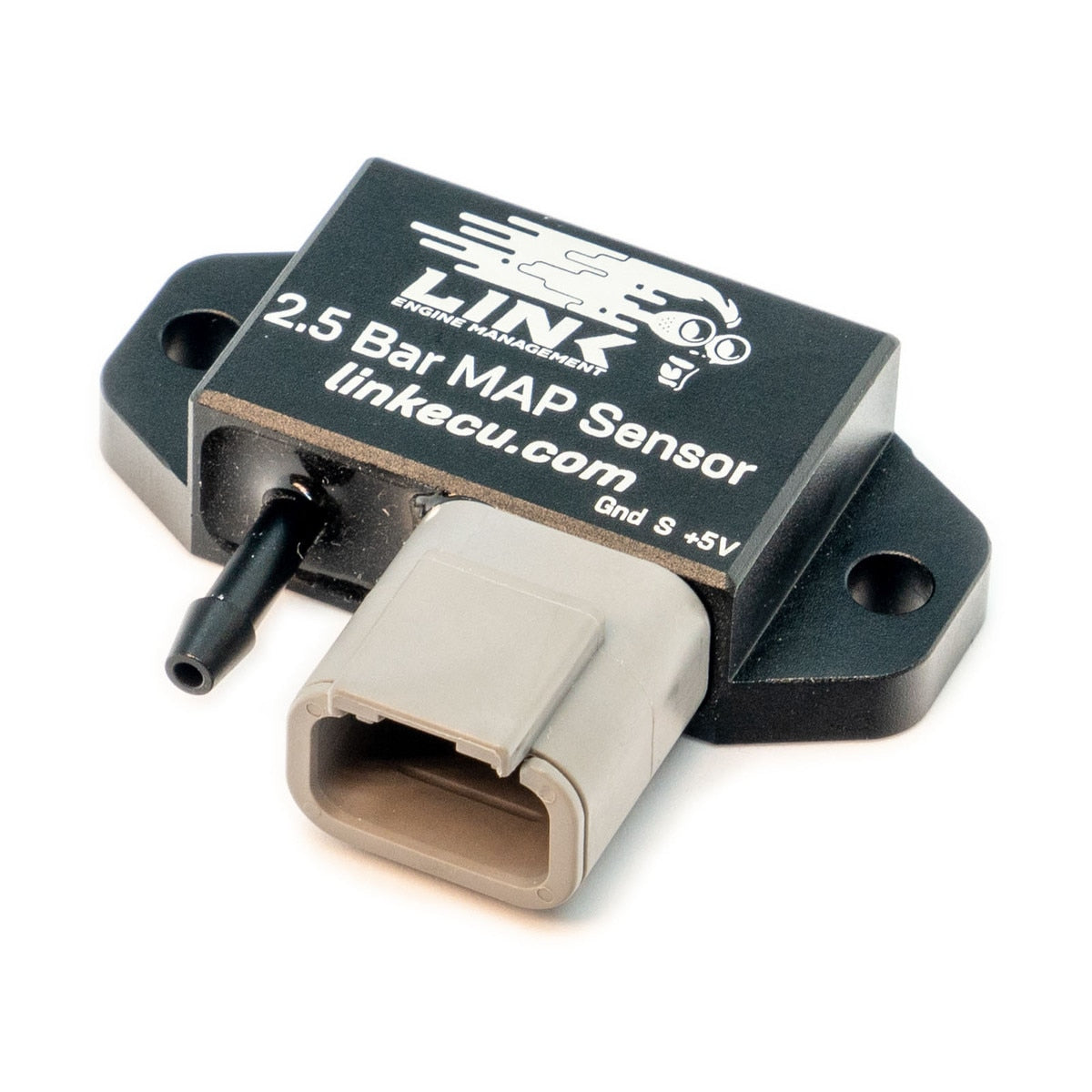

Link 2.5 Bar MAP Sensor, up to 22 psi Boost (MAP2.5)
$222.68
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A high-accuracy MAP sensor for turbocharged and supercharged engines running up to 22 psi (1.5 bar) of boost, measuring from full vacuum.
Highlights
- 0-2.5 bar absolute, for boost up to 22 psi (1.5 bar)
- Designed and made by Link in a compact aluminium enclosure
- 4 mm (3/16 in) hose barb, two-bolt mounting
- 3-pin Deutsch DTM connector kit included, with the pinout marked on the housing
- Works with all Link ECUs and other aftermarket ECUs with analog MAP inputs
Specifications
- Range: 0-2.5 bar absolute
- PC Link sensor type: "Link 2.5 Bar"
- Calibration: 0.5 V = 35 kPa, 4.5 V = 235 kPa
- Supply: 4.75-5.25 V, 10 mA
- Port: 4 mm (3/16 in) hose barb
- Connector: Deutsch DTM 3-way (kit PN 101-0128)
- Weight: 40 g
Note: Mount the sensor higher than its intake manifold connection. Link doesn't recommend it for boost above 1.5 bar (22 psi).
