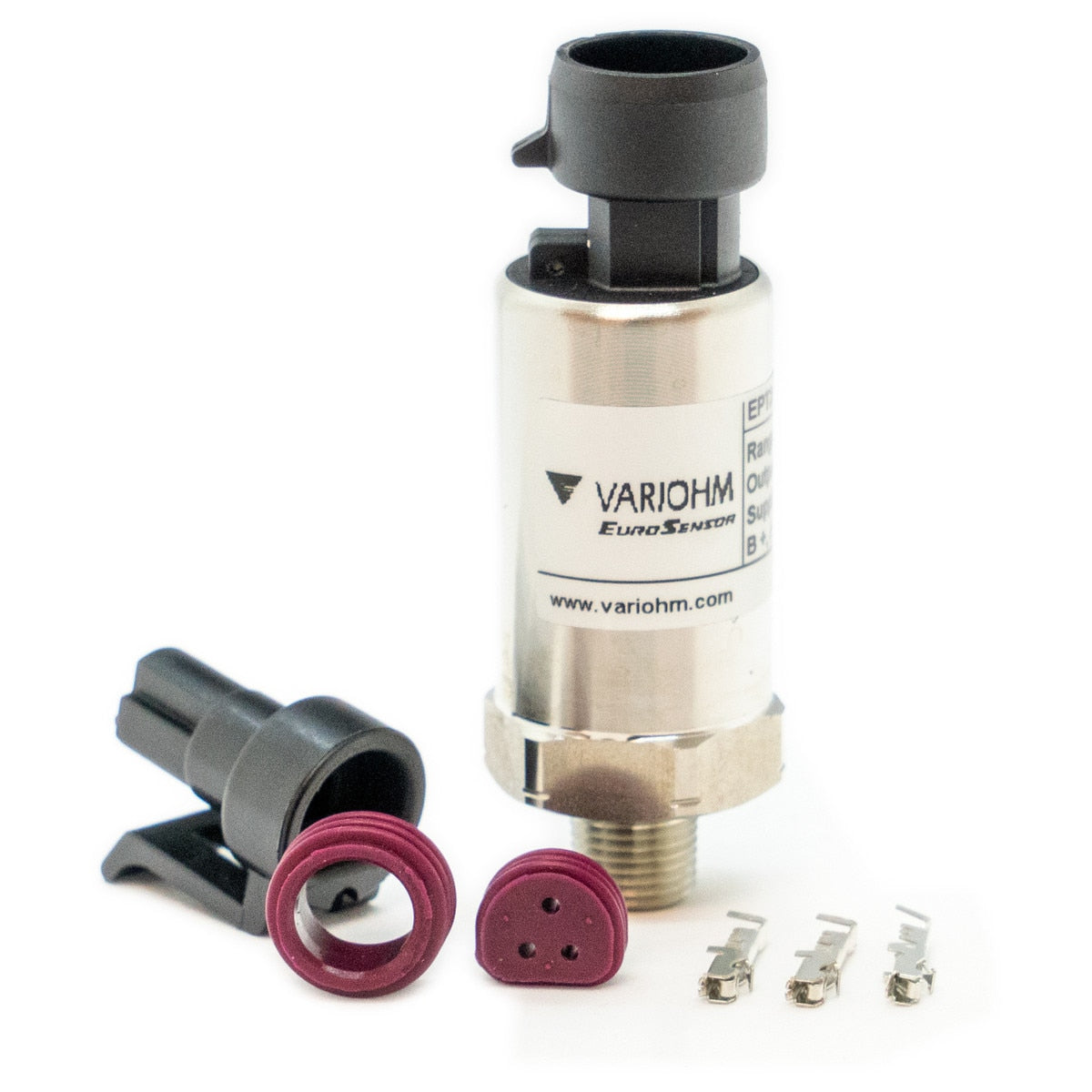

Link 8 Bar MAP Sensor, Stainless, 1/8 NPT, up to 101 psi Boost (MAP8EU)
$401.56
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A stainless steel 8 bar MAP sensor for turbocharged and supercharged engines running up to 7 bar (101 psi) of boost. Its piezoresistive element gives fast, stable readings and handles vibration and shock in demanding motorsport use.
Highlights
- Reads -1 to +7 bar (-14.5 to +101 psi)
- Stainless steel housing with high-accuracy piezoresistive element
- 0.5-4.5 V ratiometric output from a regulated 5 V supply
- 1/8 in NPT male pressure port, Packard Metri-Pack connector with connector kit included
- IP66, -40 to +125 °C
- On Link G4, G4+, G4X and G5 ECUs, select 'Variohm 8 Bar' as the MAP sensor in PC Link
Specifications
- Range: -1 to +7 bar (-14.5 to +101 psi)
- Output: 0.5-4.5 V ratiometric (0.5 V = 0 kPa, 4.5 V = 800 kPa)
- Supply: regulated 5 V
- Port: 1/8 in NPT male
- Connector: Packard Metri-Pack (TI sensor connector kit, Link PN 101-0130)
- Sealing: IP66
- Operating temperature: -40 to +125 °C
- Dimensions: 70 x 25 x 25 mm
- Weight: 65 g
- Compatibility: all Link ECUs, and other aftermarket ECUs with a 5 V ratiometric analog input
Note: Not recommended for naturally aspirated engines or boost above 7 bar (101 psi).
