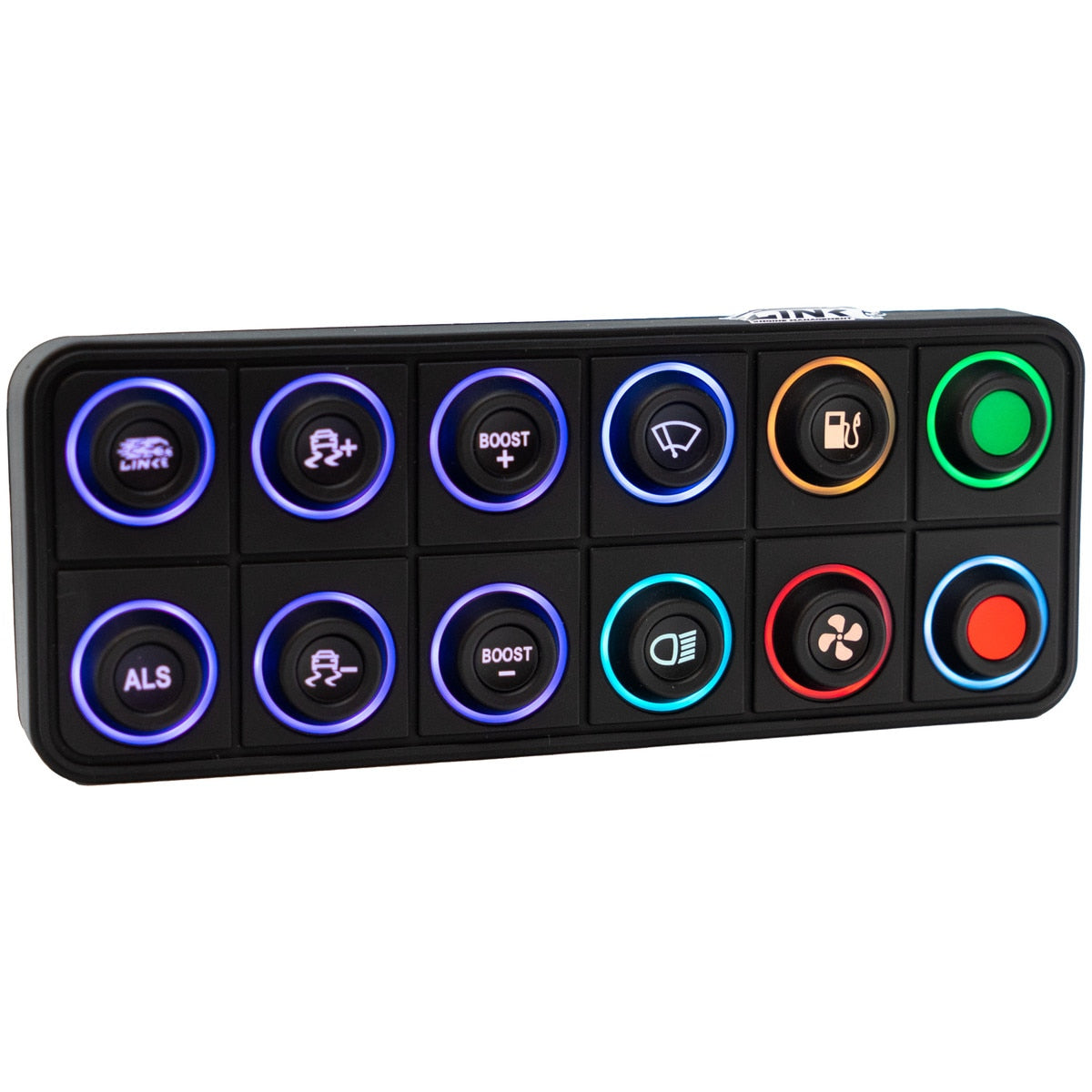

Link CAN Keypad, 12 Button 2x6 (101-0239)
$684.84
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A 12-button (2x6) CAN keypad that you configure directly in PCLink on G4X and G5 ECUs. Every button has an RGB indicator ring and takes a swappable 15 mm icon insert, and the housing is sealed to IP67/IP69K so it can live inside or outside the car.
Highlights
- Works with all G4X and G5 ECUs; built-in support from G4X PCLink 6.22 onwards
- Set backlight and ring colours per button, show status changes, flash, and run momentary, latched or toggle modes
- IP67/IP69K: dust tight, survives 1 m immersion for an hour and hot high-pressure washdowns
- Switches rated to 3 million presses, -40 to +70°C, UV and salt spray resistant
- Icon inserts are chosen and bought separately; one Link logo insert comes in the box
Specifications
- Layout: 12 buttons (2x6), 15 mm inserts
- Operating voltage: 8-32 V
- CANopen node ID: 0x15 (21)
- Default baud rate: 1000 kbit/s
- Connector: Deutsch DTM 4-pin: black = ground, red = power, white = CAN high, blue = CAN low
- Mounting: studs 136.14 mm apart (centre to centre), #10-32 nuts, 0.8 Nm max torque
- Chemical resistance: DEET, engine cleaner, isopropyl alcohol, sunscreen, multi-purpose and citrus cleaners, muriatic acid
- Dimensions: 18 x 7 x 4.5 cm
- Weight: 210 g
- In the box: keypad with DTM4 connector, DTM4 mating connector kit (DTM4M), Link logo insert, Link sticker, help card
