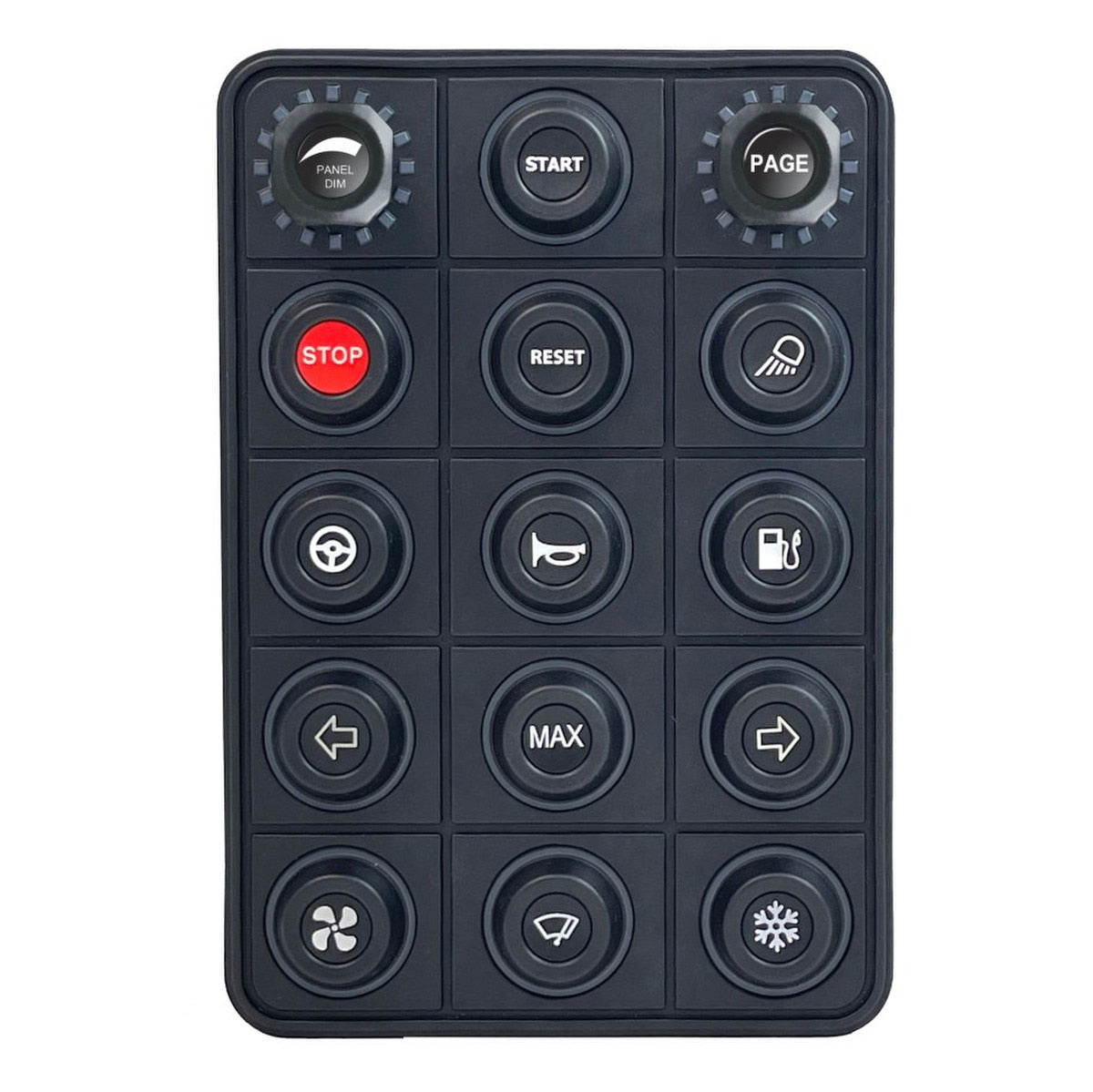

Link CAN Keypad, 15 Button with 2 Rotary Encoders (101-0330)
$1,160.87
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A compact CAN keypad with 13 backlit push buttons and two push-to-click rotary encoders on one panel, plus four analog inputs for extra switches or sensors. It talks to Link G4X and G5 ECUs, or a PDM, over CAN, and each button's colour and behaviour is set up in PC Link.
Highlights
- 13 push buttons with programmable RGB indicator rings, plus 2 push-enabled rotary encoders with 16 blue LEDs each
- Encoder push and rotation work independently
- 4 analog inputs bring extra sensors or switches onto the CAN bus
- Set backlight and ring colours, status feedback, flashing and momentary, latched or toggle modes in PC Link
- Inserts sold separately: comes with empty button positions plus one Link logo insert. Takes Link's interchangeable 15 mm inserts
Specifications
- Compatibility: all Link G4X and G5 ECUs
- Connectors: Deutsch DTM 4-pin (power and CAN), Molex 6-pin (analog inputs)
- DTM4 wiring: black ground, red power, white CAN High, blue CAN Low
- Default CAN rate: 1000 kbit/s
- Operating voltage: 8-32 V
- Switch life: 3 million operations
- UV resistance: 400 hours UVB
- Dimensions: 110 x 150 x 50 mm
- Weight: 360 g
- In the box: keypad, Deutsch 4-way connector kit, Link logo insert, help card, Link sticker
