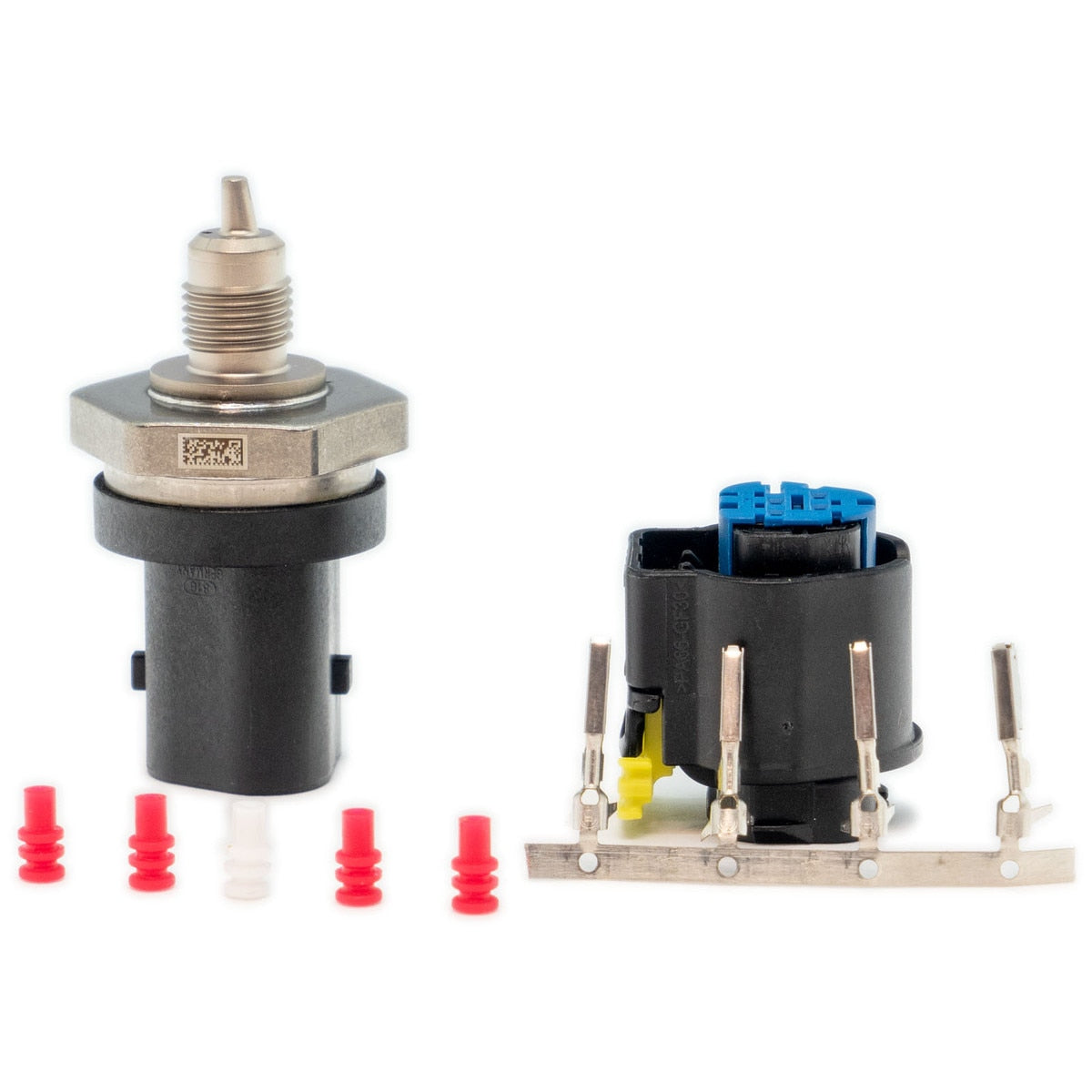

Link Combined Pressure and Temperature Sensor, 10 Bar, M10 x 1 (CPTS)
$292.04
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A genuine Bosch sensor that reads liquid pressure and temperature through a single port, saving space and wiring compared with two separate sensors.
Highlights
- Pressure 0-10 bar and temperature -40 to +140 °C in one sensor
- M10 x 1 thread with 45° cone seat
- 5-pin Bosch trapezoid connector kit included
- Works with all Link ECUs and other aftermarket ECUs with analog pressure and temperature inputs
- Not suitable for water or coolant
Specifications
- Pressure range: 0-10 bar (0.5 V = 0 kPa, 4.5 V = 1000 kPa)
- Temperature range: -40 to +140 °C
- Thread: M10 x 1, 45° cone seat
- Maximum overpressure: 20 bar
- Installation torque: 37.5 ±2.5 Nm
- Supply: 4.75-5.25 V
- PC Link calibration: pressure "Bosch 10Bar 0 261 230 340", temperature "Bosch NTC 0 261 230 340"
- Weight: 30 g
- In the box: sensor, 5-pin Bosch trapezoid connector kit, printed instructions
Note: For best results, install with the sensing tip pointing down, within 45° of vertical.
