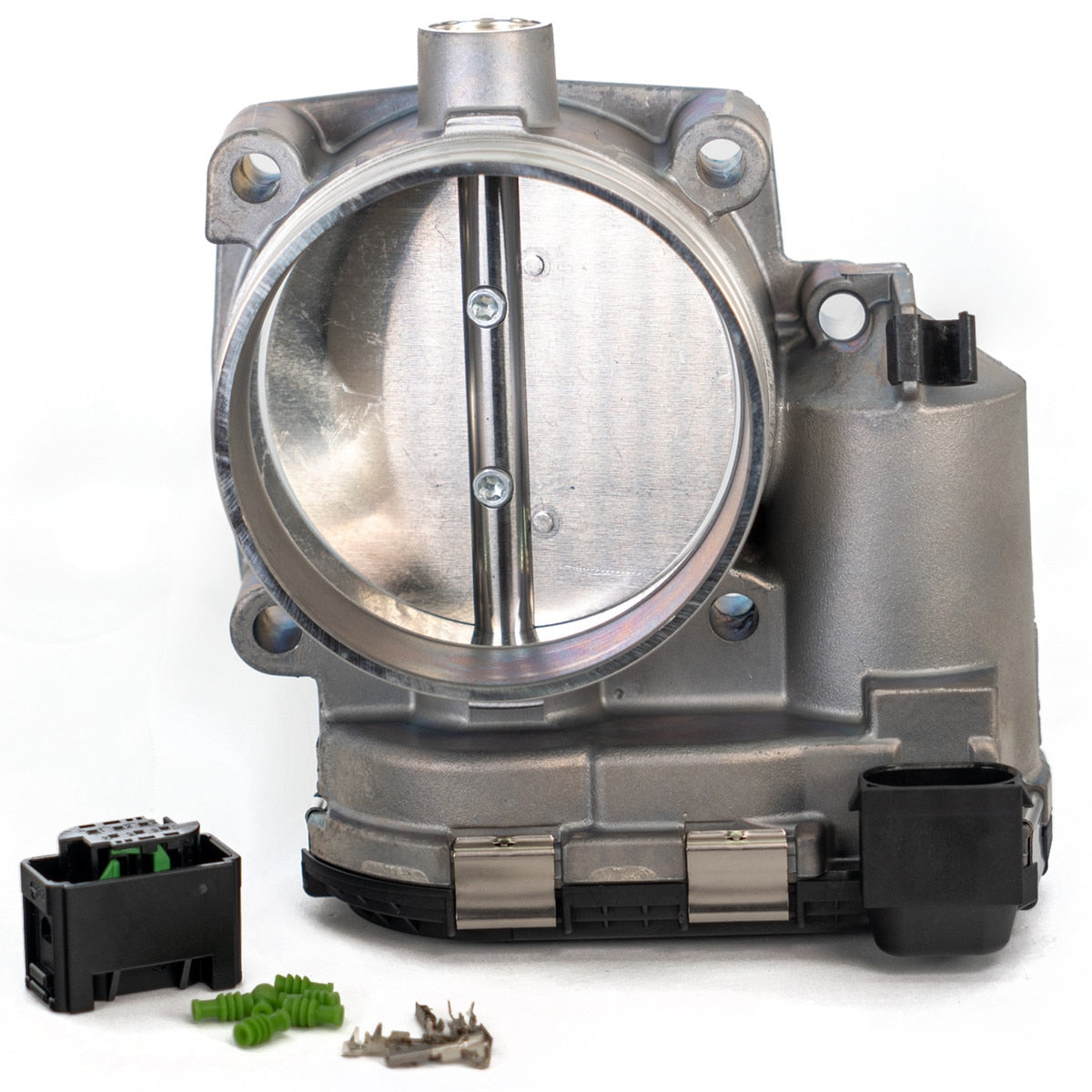

Link Electronic Throttle Body Kit, 74mm (ETB74)
$467.27
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A 74 mm Bosch electronic throttle body with its mating connector, for drive-by-wire control from a compatible Link ECU. Dual throttle position sensors provide redundancy and an integrated actuator drives the blade.
Highlights
- 74 mm bore Bosch electronic throttle body
- Dual potentiometer TPS outputs for redundancy
- Grooved inlet port flange
- 6-pin AMP mating connector included
- Needs a Link ECU with built-in E-throttle or Link's external E-throttle module (115-1000)
- Pair with an electronic pedal such as Link's PED (101-0188) or pedal position sensors
Specifications
- Bore: 74 mm
- Operating voltage: 6-16 V
- Max continuous current: 10 A
- TPS output: 0-5 V
- Connector: AMP 6-pin
- Dimensions: 140 x 140 x 75 mm
- Weight: 860 g
- In the box: 74 mm throttle body, 6-pin AMP mating connector, printed instructions
