Link ECU

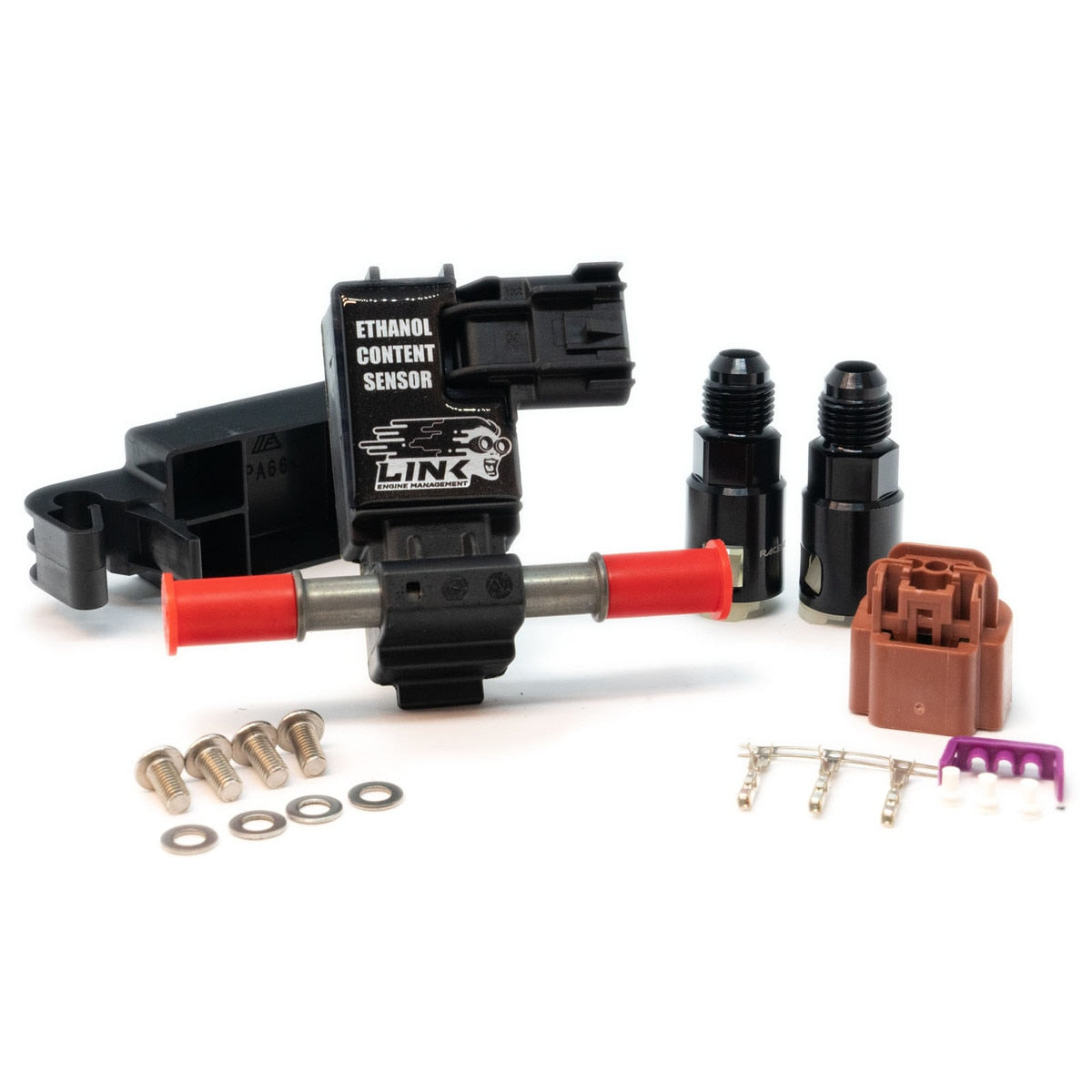

Link Ethanol Content Sensor, Flex Fuel, AN-6 (ECS)
$435.14
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A genuine Continental flex fuel sensor that reports both ethanol content and fuel temperature. With a Link G4+, G4X or G5 ECU, fuel, ignition and boost can adjust automatically as the blend in the tank changes.
Highlights
- Measures ethanol percentage and fuel temperature
- Lets Link G4+, G4X and G5 ECUs adjust fuel, ignition and boost to the blend
- AN-6 male fittings, with AN-6 adapter fittings included
- Digital output into a single ECU digital input
- Fits in the fuel return line between the pressure regulator and the tank
Specifications
- Ethanol output: 50-150 Hz = 0-100% ethanol
- Fuel temperature output: 1-5 ms pulse width = -40 to 125 °C
- Fittings: AN-6 male
- Supply: 12 V (9-18 V operating), battery ground
- Current draw: 20 mA
- ECU input: 1 digital input
- Fuels: petrol and ethanol blends including E85
- In the box: sensor, AN-6 adapter fittings, 3-pin connector kit
Note: The ethanol content and fuel temperature channels need to be set up in the ECU software.
