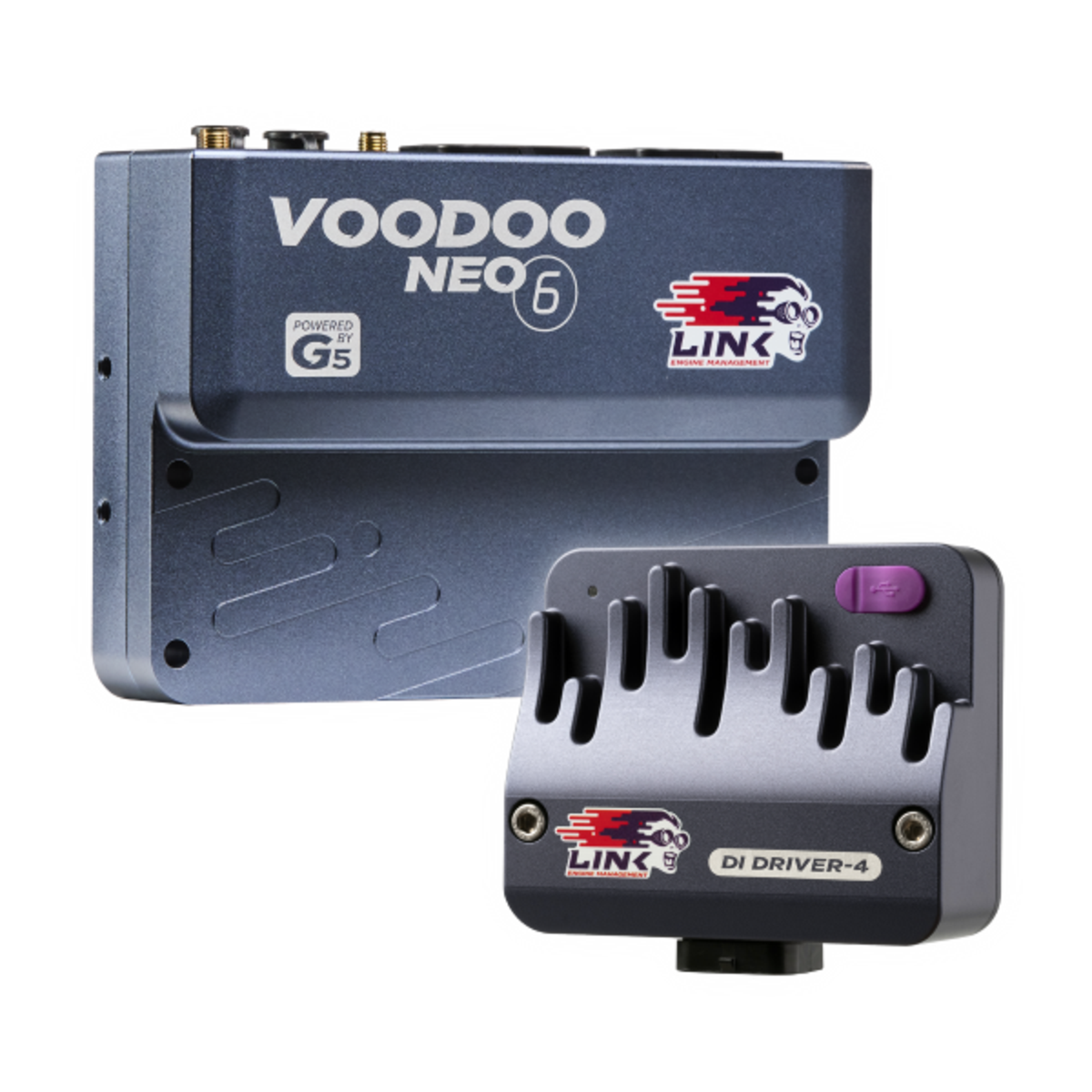

Link G5 Voodoo Neo 6 + DI Driver-4 Bundle (156-9000B)

This bundle pairs the G5 Voodoo Neo 6, Link's Neo ECU for up to eight cylinders, with one DI Driver-4 direct injection driver. One DI Driver-4 handles four solenoid direct injectors and one high-pressure pump, so as supplied the kit runs direct injection on up to four cylinders. For six-cylinder or V8 direct injection, plan on a second module; the two-module version of this bundle covers that.

In the bundle

• G5 Voodoo Neo 6 ECU (156-5000), with its USB-C cable, Wi-Fi antenna, 4 m GPS antenna, dust covers, quick start guide and installer I/O table
• DI Driver-4 direct injection driver (144-5000), with its Superseal D plug and pin kit, USB-C cable and quick start guide

Highlights

• Direct, port or staged direct and port injection from one ECU on a single tune
• DI Driver-4 runs 4 solenoid direct injectors and 1 high-pressure pump; piezo injectors are not supported
• Neo 6: 12 injection and 8 ignition drives, 6 auxiliary outputs and 6 ADIO pins
• Onboard digital wideband controller and dual e-throttle with low-power e-wastegate support
• GPS, Wi-Fi, Ethernet, two CAN buses, USB-C tuning and 1GB of onboard logging
• More DI Driver-4 modules can be added over CAN as the build grows

Specifications

• ECU engine support: up to 8 cylinders with sequential port or direct injection, or 6 cylinders with staged direct and port injection and dual high-pressure pumps, all with direct spark
• ECU drives: 12 injection (4 shared with digital inputs), 8 ignition, 6 auxiliary, 6 ADIO pins
• ECU inputs: 10 digital, 4 temperature, 3 analogue, 2 trigger, 2 knock
• ECU wideband and e-throttle: 1 onboard digital wideband controller; dual e-throttle via two H-bridges
• ECU communications: 2 CAN buses, Wi-Fi, Ethernet, GPS, USB-C with power over USB; 1GB logging
• ECU enclosure: sealed 6061-T6 CNC billet aluminum, 107 x 158 x 45 mm, 730 g; 6 to 30V operating range, 17A maximum continuous draw
• Direct injection as supplied: 4 direct injectors and 1 high-pressure pump
• DI Driver-4 drive limits: boost up to 17.9A and 65V, peak up to 17.9A for 2,000 µs, hold up to 5.0A for 164 ms
• DI Driver-4 maximum engine speed: 14,200 rpm with Bosch HDEV injectors
• DI Driver-4 communications: 1 CAN bus (software-configurable termination), USB Type-C
• DI Driver-4 enclosure: sealed, water-resistant CNC billet aluminum, 103.6 x 86.3 x 39.0 mm, 438 g; 7 to 30V operating range; -40 to 80°C
• Software: PCLink for the ECU and DI Link for the DI Driver-4 (Windows only), both free downloads from Link
