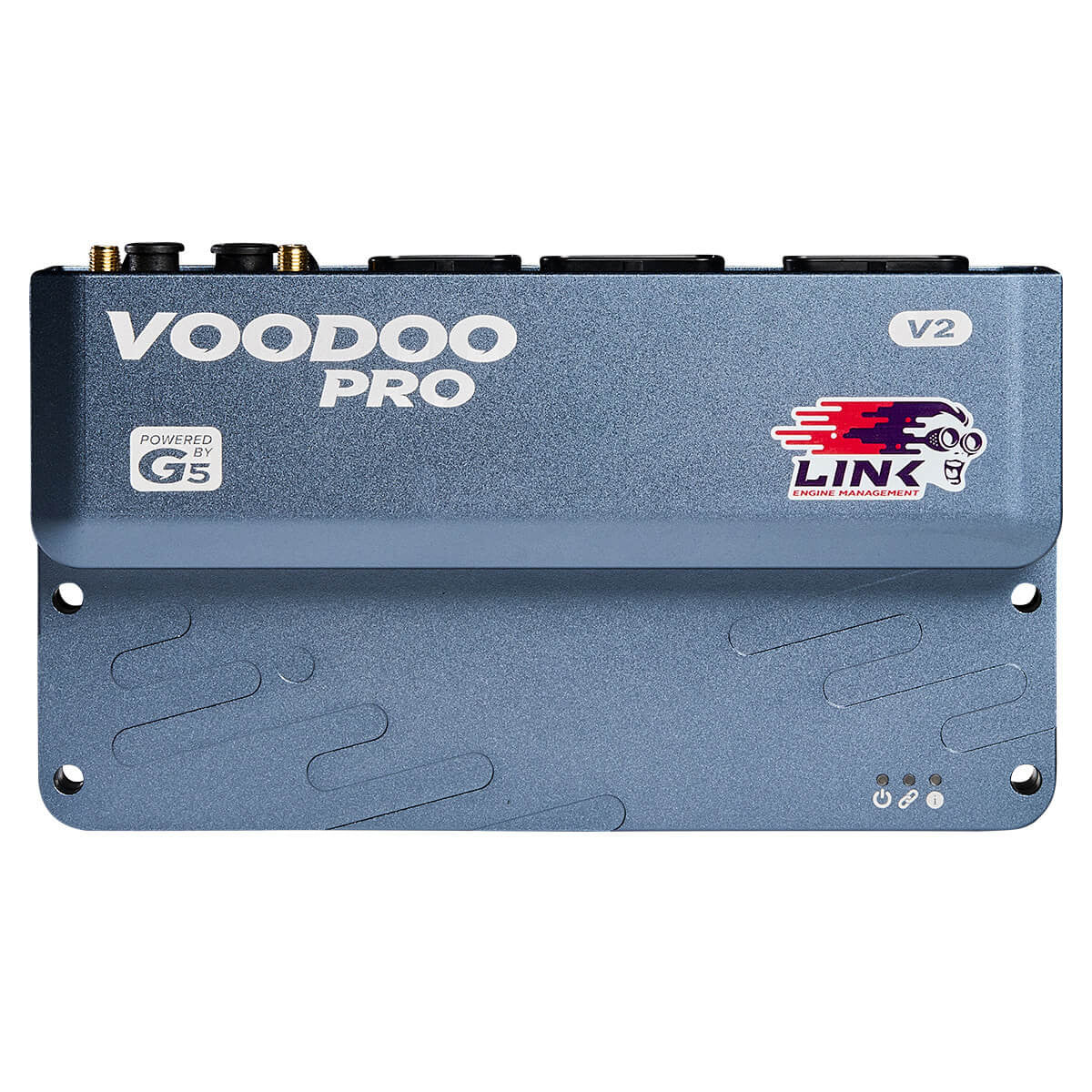

Link G5 Voodoo Pro Wire-In ECU (153-5000)

The G5 Voodoo Pro is Link's flagship ECU, built for up to twelve cylinders with sequential port or direct injection, or eight cylinders running staged direct and port injection. It carries the most I/O in the G5 range, with 24 injection, ignition and multi-purpose drives, 14 analogue inputs, two onboard wideband controllers and dual e-throttle. Choose it over the Neo ECUs for engines beyond eight cylinders, eight-cylinder staged direct and port injection, two-sensor wideband control or builds that need maximum I/O; direct injectors run through an external driver box such as Link's DI Driver-4.

Highlights

• 12 injection, 8 ignition and 4 multi-purpose drives (24 total), for up to 16 injection or 12 ignition drives
• Two onboard LSU 4.9 digital wideband controllers
• Two onboard H-bridges for dual e-throttle and low-power e-wastegate control
• GPS up to 50Hz, Wi-Fi, Ethernet, two CAN buses and USB-C tuning with power over USB
• Eight ADIO pins plus 14 analogue inputs
• Direct automatic transmission control, a 3-axis accelerometer and the full motorsport set: launch, anti-lag, nitrous, traction, cruise, gear shift and paddle shift control
• 1GB of onboard data logging

Specifications

• Engine support: up to 12 cylinders with sequential port or direct injection and direct spark, or 8 cylinders with staged direct and port injection and direct spark
• Drives: 12 injection, 8 ignition and 4 multi-purpose (injection, ignition or auxiliary), 24 total: up to 16 injection or 12 ignition drives
• Direct injection: via an external driver box
• Auxiliary outputs: 6 (unused injection and ignition drives can also be used as auxiliary outputs)
• ADIO pins: 8 dual-purpose
• Inputs: 10 digital, 4 temperature with selectable 1k or 10k ohm pull-ups, 14 analogue, 2 trigger
• Knock inputs: 2
• Wideband lambda: 2 onboard LSU 4.9 digital controllers
• E-throttle: dual, via two onboard H-bridges
• Sensor supply: +5V
• Communications: 2 CAN buses, Wi-Fi, Ethernet, GPS up to 50Hz, USB-C tuning with power over USB
• Data logging: 1GB, up to 100kHz total logging rate, 250 channels
• Connectors: two 34-position and one 26-position Superseal
• Enclosure: sealed 6061-T6 CNC billet aluminum, 109 x 193.5 x 45 mm (4.29 x 7.62 x 1.77 in), 768 g
• Electrical: 6 to 30V operating range, 30V maximum input, 17A maximum continuous draw
• In the box: Voodoo Pro ECU, USB-C cable, Wi-Fi antenna, 4 m GPS antenna (magnetic or adhesive mount), USB-C and SMA dust covers, quick start guide, installer I/O table, mounting screws, Link stickers (wiring looms not included)
• Software: PCLink, a free download from Link
