Link ECU

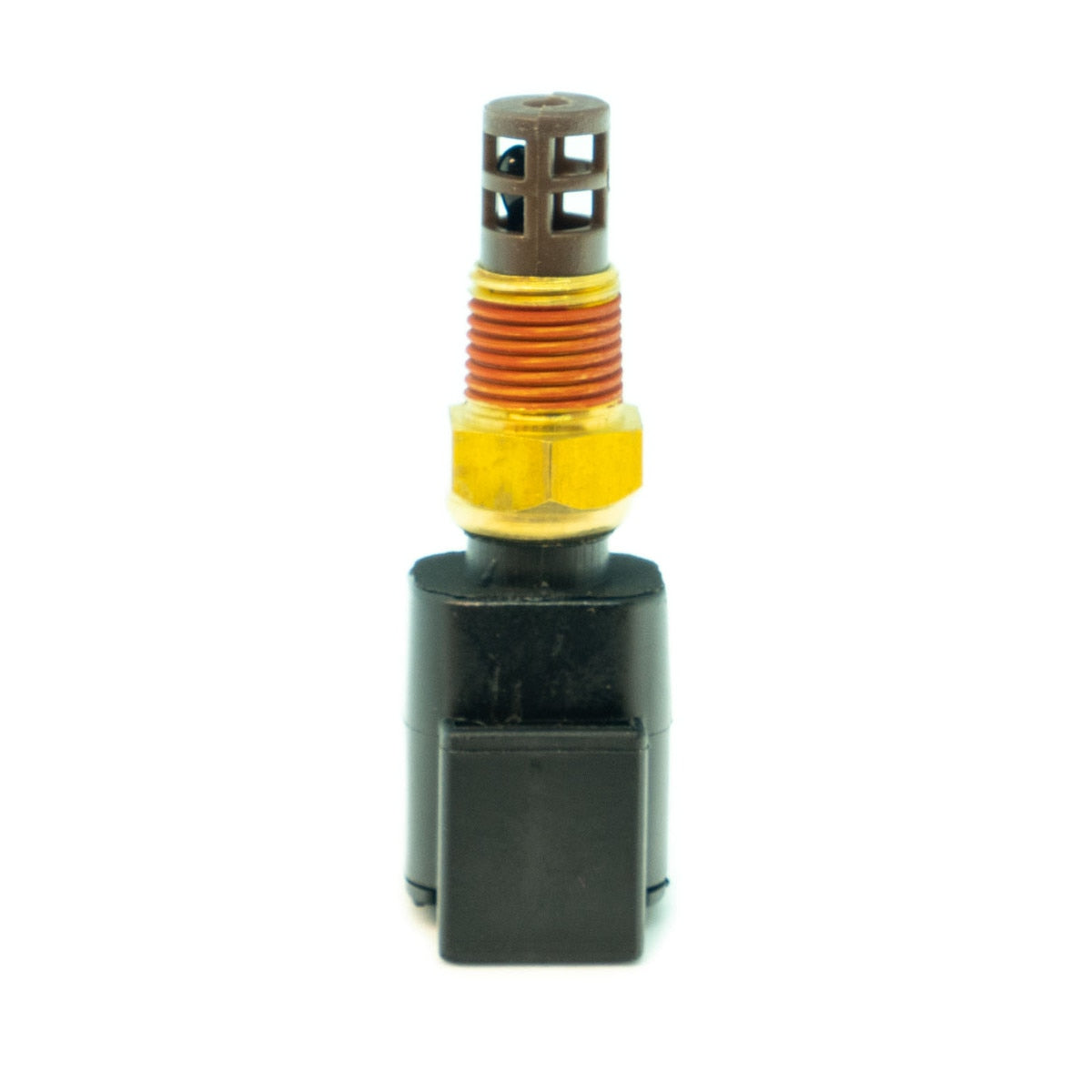

Link Intake Air Temperature Sensor, 1/8 NPT (IAT1-8)
$153.32
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A compact NTC air temperature sensor with a 1/8 NPT thread, giving the ECU accurate intake air temperature for fuel, ignition and engine protection strategies.
Highlights
- NTC thermistor, two-wire (signal and sensor ground)
- 1/8 in NPT thread in a compact metal body
- Deutsch DTM 2-pin connector kit included
- Works with all Link ECUs and other aftermarket ECUs that support NTC sensors
- Weld-in mounting bosses available in aluminium (IAT1-8MA) and steel (IAT1-8MS)
Specifications
- Sensor type: NTC thermistor
- Thread: 1/8 in NPT
- Connector: Deutsch DTM 2-pin (kit PN 101-0131)
- PC Link calibration: "Link NTC1-8 & IAT1-8" or "Delphi AC IAT"
- Resistance: 9,256 ohm at 0 °C, 3,457 ohm at 20 °C, 175 ohm at 100 °C
- In the box: sensor, Deutsch 2-way connector kit
