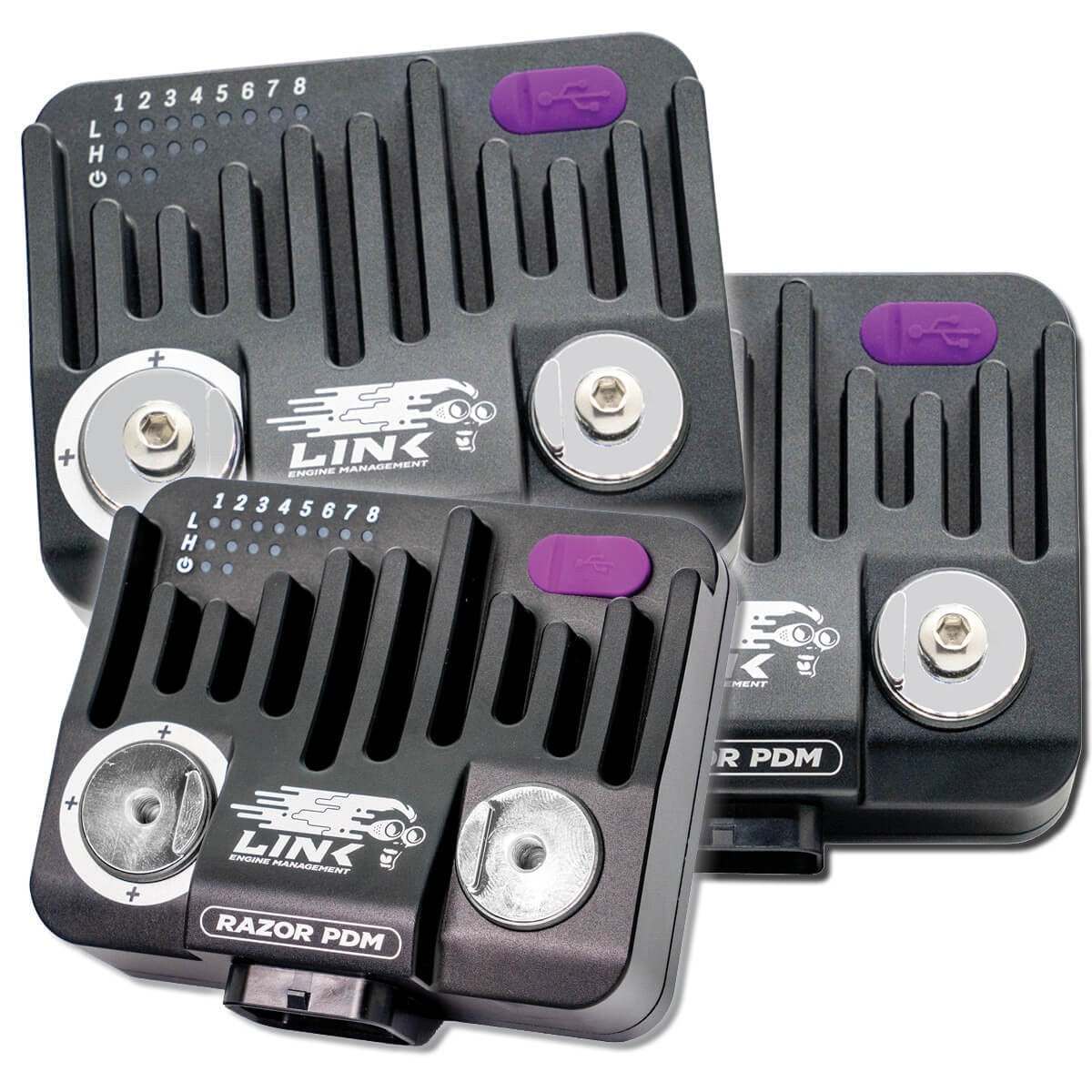

Link Razor PDM Triple Pack, 3 x Razor PDM (135-9300B)
$4,789.51
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
Three Razor PDMs for builds that need more inputs and outputs than one unit offers, or that want a PDM mounted close to each group of loads to shorten wiring runs. The units connect over CAN and are configured in Link's free PDM Link software.
Highlights
- 3 x Razor PDM, each with 4 high-power outputs and 8 ADIO pins
- Each unit handles up to 100 A continuous combined (160 A non-repetitive peak)
- Multiple PDMs connect over CAN for more I/O, or a PDM can act as a CAN expander
- Replaces fuses and relays with programmable outputs and adjustable protection
- Pre-configured CAN stream for Link ECUs; other ECU brands via a custom CAN stream
Specifications
- High-power outputs (per PDM): 4 x 25 A continuous
- ADIO (per PDM): 8 pins, up to 8 A each as outputs
- Communications (per PDM): 1 CAN bus, 1 USB Type-C
- Operating voltage: 6-24 V
- Each PDM comes with: Razor PDM, mounting plate and screws, Superseal C plug and pin kit, USB-C cable, positive terminal insulation boot, 2 high-current ring terminals with bolts, quick start guide
