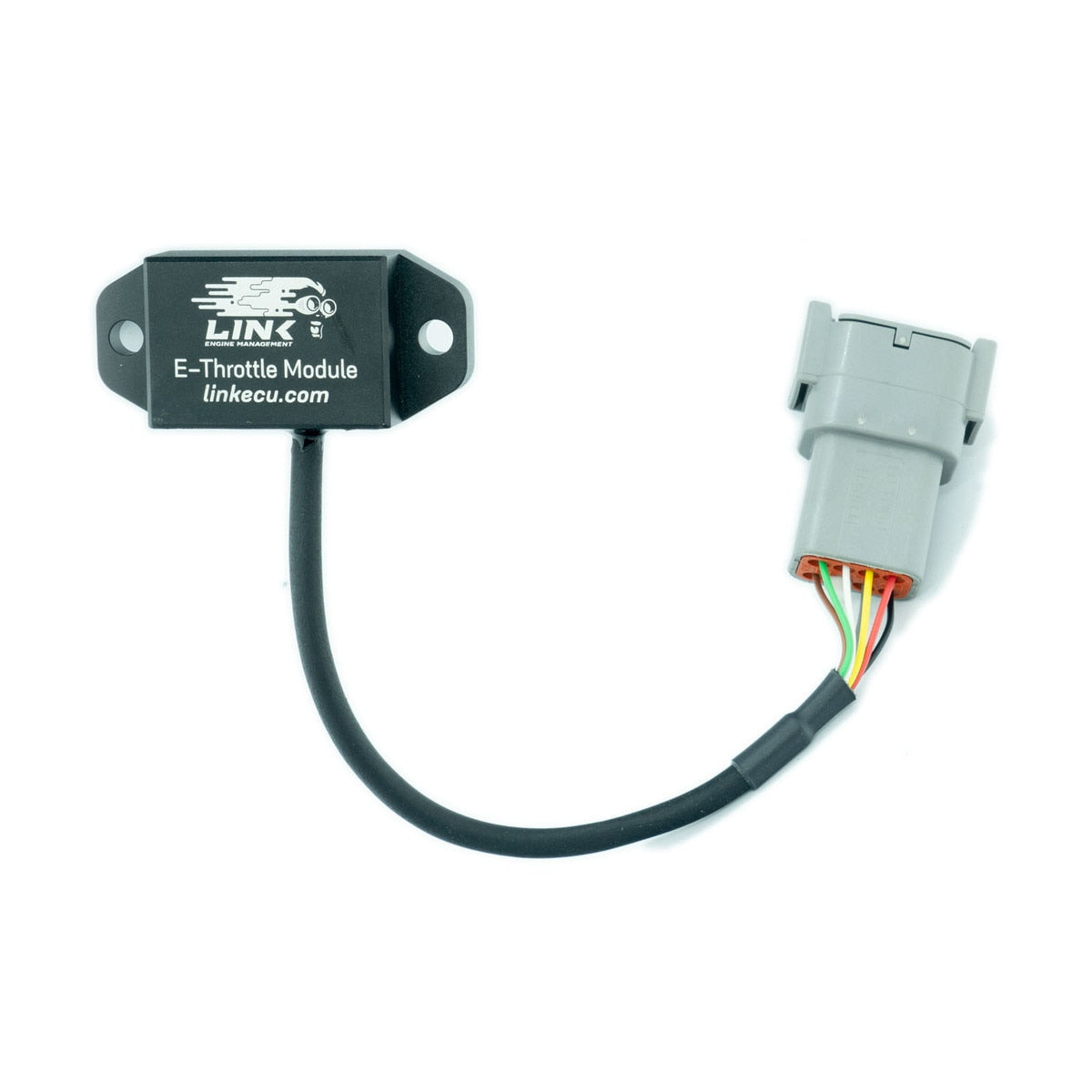

Link Remote E-Throttle Controller, Drive-by-Wire Module (RET)

The RET adds electronic throttle (drive-by-wire) control to Link ECUs that don't have it onboard. On ECUs that already run an e-throttle, it can control a second throttle for dual-throttle setups.

Highlights

• Adds drive-by-wire control to compatible Link ECUs
• Primary or secondary e-throttle control
• Designed and built by Link in a compact remote-mount case
• Wiring loom included
• Uses three ECU auxiliary outputs; the enable input must be pulled low to activate it

Specifications

• Primary e-throttle: Link G4+ Storm, Xtreme, Fury and Plug-in ECUs; G4X MonsoonX, StormX and Plug-inX ECUs
• Secondary e-throttle: Link G4X XtremeX and FuryX ECUs
• ECU requirement: 3 auxiliary outputs
• Operating voltage: 6-23 V
• Maximum input voltage: 37 V
• Maximum continuous current: 6 A
