Link ECU

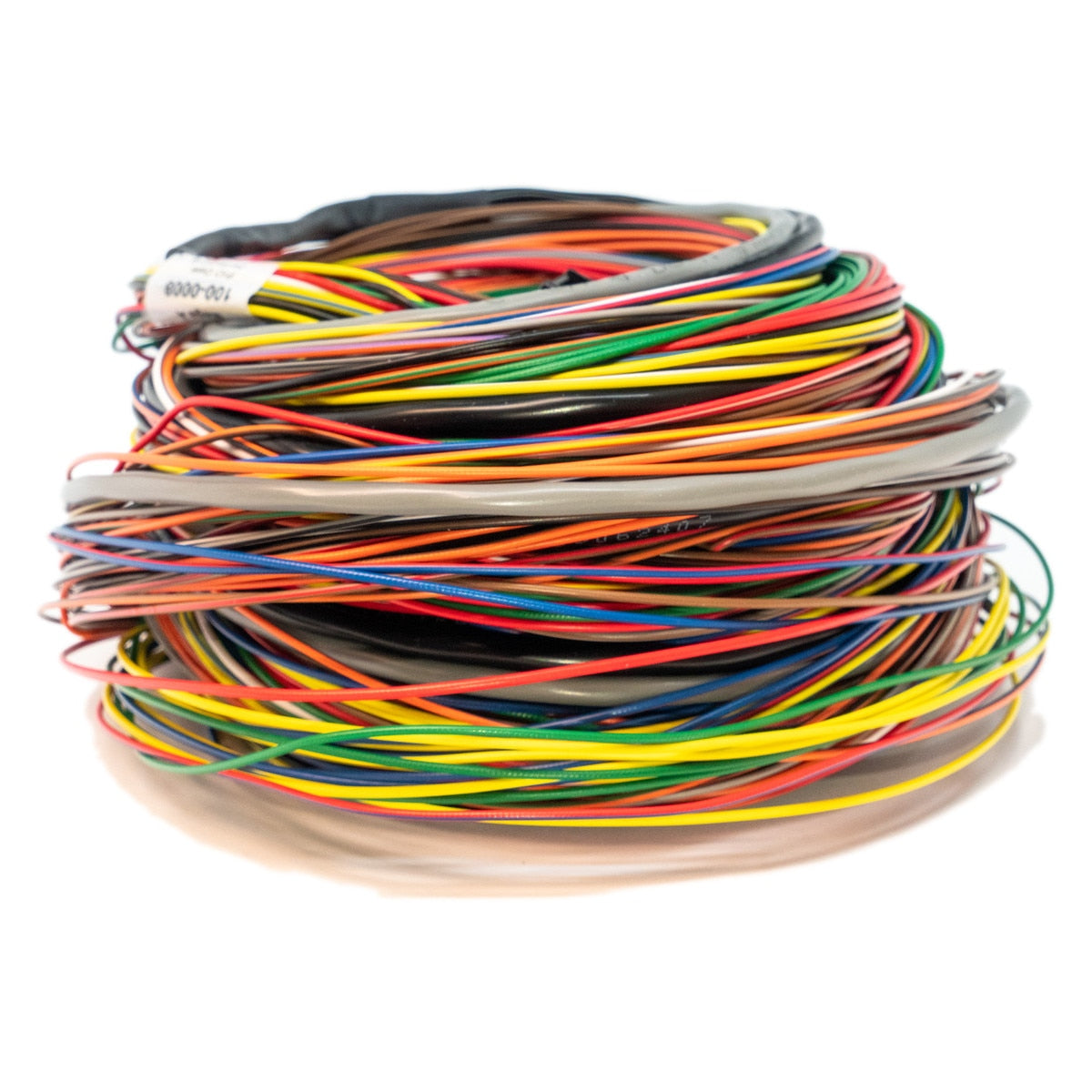

Link Wire-In A Loom, Long 5m (5LA)
$379.66
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A 5 m pre-built flying lead for the A plug on Link wire-in ECUs, the longest of the three lengths, for full harness runs. The SUPERSEAL 1.0 connector is factory-terminated at one end, with bare wires at the other and every position populated.
Highlights
- Every position populated, wires colour coded to match Link's wire-in manuals
- Factory-terminated TE Connectivity SUPERSEAL 1.0 A connector
- ECUs with two plugs also need a B loom: the matching 5 m B loom is 5LB (101-0009)
- Also made in 0.4 m (0LA) and 2.5 m (2LA) lengths
- Works for non-Link projects that use the same connector and pin layout
Compatibility
- All G5 wire-in ECUs
- All G4X wire-in ECUs
- G4+ Atom and Atom II, G4+ Monsoon
- G4+ Storm Blue and Storm Black, G4+ Fury, G4+ Xtreme, G4+ Thunder
- G4 Storm, G4 RX, G4 Xtreme
- Vipec V44, i44, V88 and i88
- Not for early G4 (pre-G4+) Atom ECUs
Specifications
- Length: 5 m
- Wire: 0.75 mm² (19 AWG) for the red wire at A5 and the black power grounds at A25 and A34; 0.5 mm² (20 AWG) for the rest
- Weight: 1.79 kg
- In the box: 5 m A loom with SUPERSEAL 1.0 A connector
