Link ECU
Link Wire-In B Loom, Long 5m (5LB)
$379.66
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.

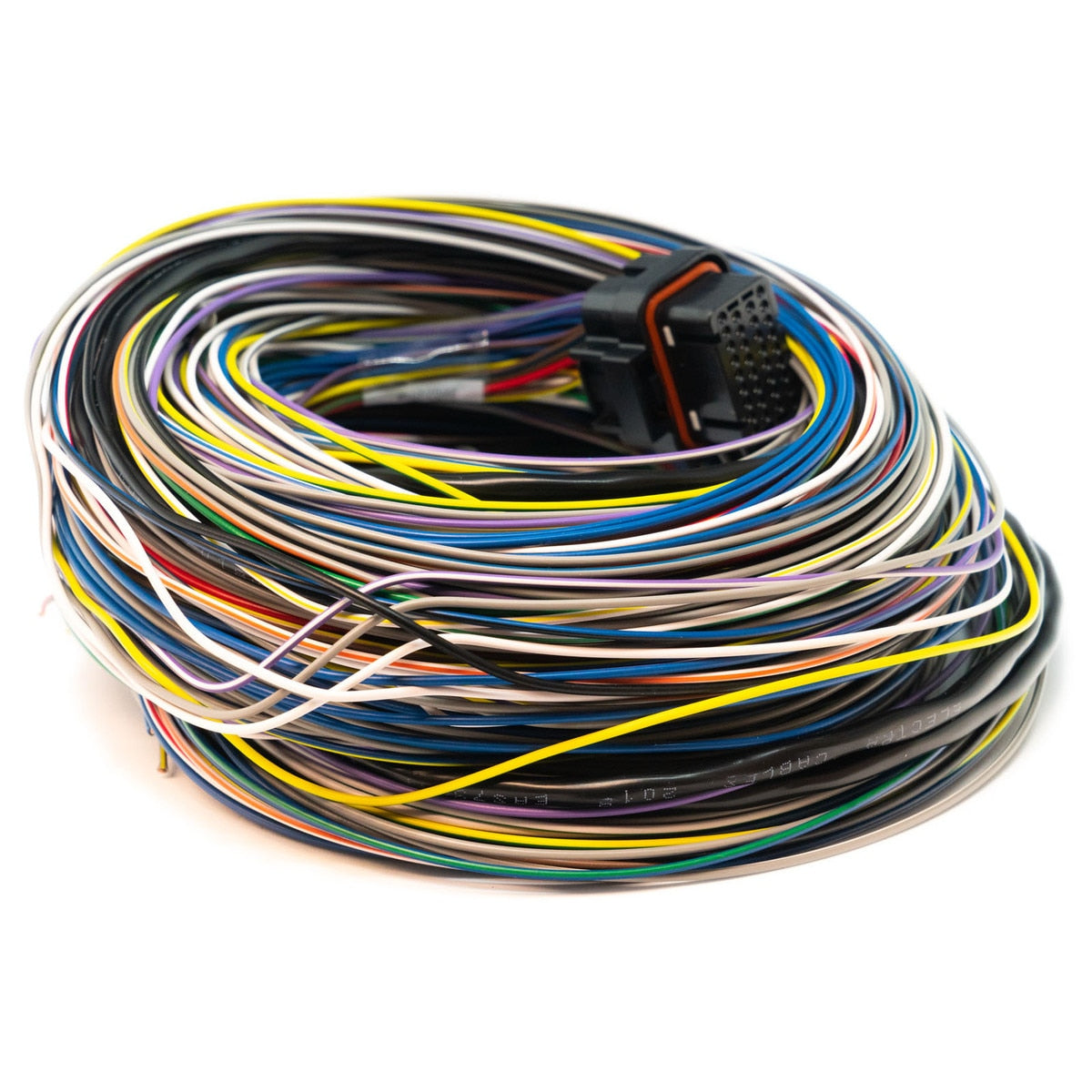

A 5 m pre-built flying lead for the B plug on two-connector Link wire-in ECUs, for full-length harness runs. Factory-terminated SUPERSEAL 1.0 connector at one end, bare wires at the other; use it with the 5 m A loom.
Highlights
- Every position populated, wires colour coded to match Link's wire-in manuals
- Factory-terminated TE Connectivity SUPERSEAL 1.0 B connector
- Only for ECUs with a B connector, and an A loom is needed too (matching 5 m A loom: 5LA (101-0008))
- Also made in 0.4 m (0LB) and 2.5 m (2LB) lengths
- Works for non-Link projects that use the same connector and pin layout
Compatibility
- All G5 wire-in ECUs
- G4X Storm, Fury and Xtreme
- G4+ Storm Black, Fury and Xtreme; G4 Xtreme
- G4+ Thunder (C and D connector kits may also be needed)
- Vipec V88 and i88
- An A loom is needed as well on all of these
- Not needed on the older Silver or Blue G4 and G4+ Storm
Specifications
- Length: 5 m
- Wire: 0.75 mm² (19 AWG) for the red wire at B5 and the black power grounds at B25 and B34; 0.5 mm² (20 AWG) for the rest
- Weight: 1.79 kg
- In the box: 5 m B loom with SUPERSEAL 1.0 B connector
