Link ECU
Link Wire-In B Loom, Short 400mm (0LB)
$151.86
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.

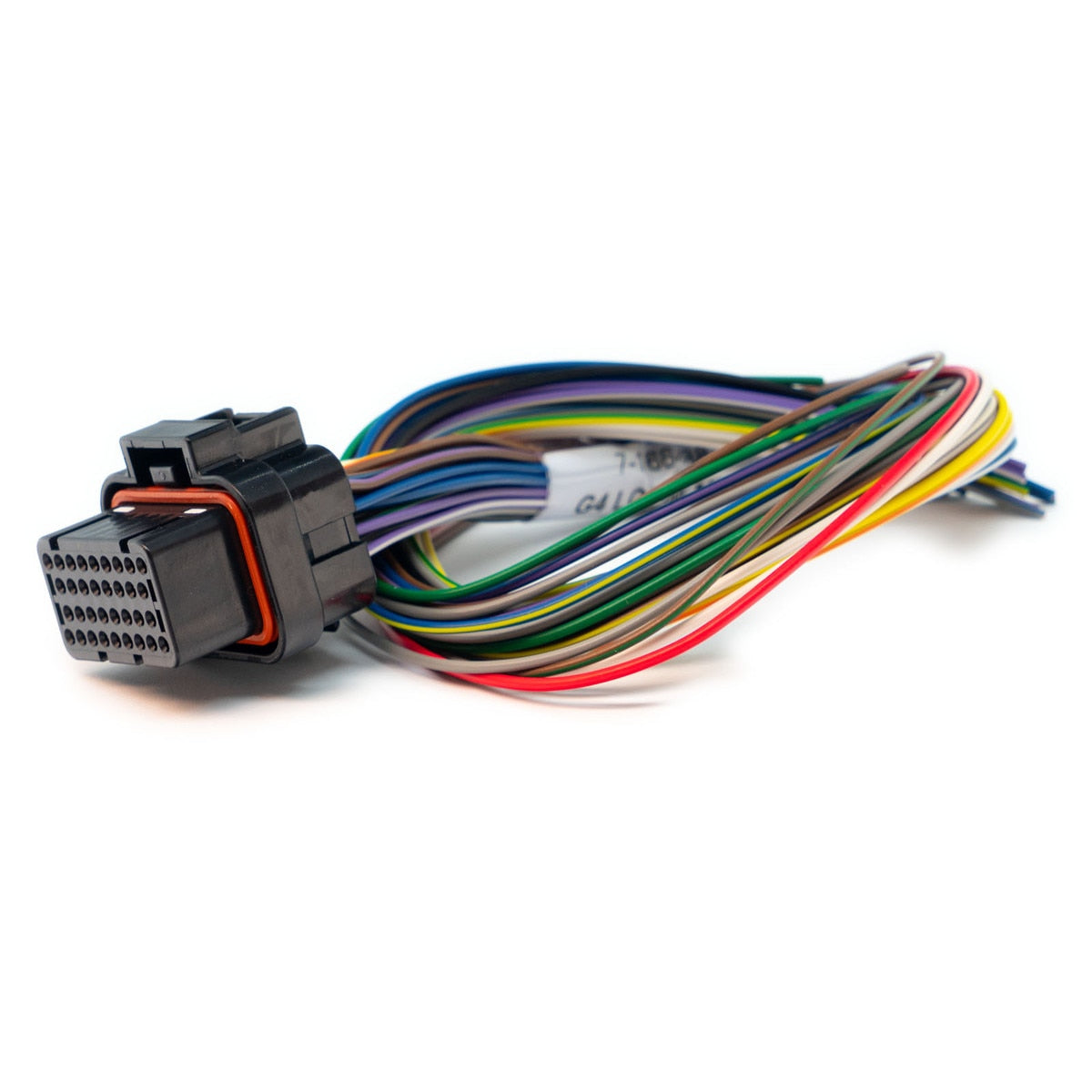

A 0.4 m pre-built flying lead for the B plug on Link wire-in ECUs that use two ECU connectors, with a factory-terminated SUPERSEAL 1.0 connector at one end and bare wires at the other. Pair it with the 0.4 m A loom for patch harnesses, adapters and conversions.
Highlights
- Every position populated, wires colour coded to match Link's wire-in manuals
- Factory-terminated TE Connectivity SUPERSEAL 1.0 B connector
- Only for ECUs with a B connector, and an A loom is needed too (matching 0.4 m A loom: 0LA (101-0002))
- Also made in 2.5 m (2LB) and 5 m (5LB) lengths
- Works for non-Link projects that use the same connector and pin layout
Compatibility
- All G5 wire-in ECUs
- G4X Storm, Fury and Xtreme
- G4+ Storm Black, Fury and Xtreme; G4 Xtreme
- G4+ Thunder (C and D connector kits may also be needed)
- Vipec V88 and i88
- An A loom is needed as well on all of these
- Not needed on the older Silver or Blue G4 and G4+ Storm
Specifications
- Length: 0.4 m
- Wire: 0.75 mm² (19 AWG) for the red wire at B5 and the black power grounds at B25 and B34; 0.5 mm² (20 AWG) for the rest
- Weight: 140 g
- In the box: 0.4 m B loom with SUPERSEAL 1.0 B connector
