Wisefab Front Drift Angle Lock Kit, Chevrolet Corvette C5 / C6 (WFC60)

The C5 and C6 Corvette are serious sports cars out of the box and have a lot to give as drift cars. Wisefab's pro-level kit includes everything needed for 65+ degrees of lock: the knuckle kinematics are improved in several ways, Ackermann is adjustable, and the control arms are extended and easy to adjust for a quick alignment.

Fits

• Chevrolet Corvette (C5)
• Chevrolet Corvette (C6)

Before you order

• The optional C6 rack offset spacer kit (WFC60_800) adds angle and improves the Ackermann curve on the C6; the C5 does not need it.
• Max wheel backspacing: 145 mm (17 in), 147 mm (18 in), 150 mm (19 in). Coilover length: 378 mm at ride height, 430 mm max, 345 mm min.
• The factory anti-roll bar may need modification and cannot be used at high wheel angles.

Highlights

• 65+ degrees of steering angle, parallel steering, adjustable lock stop
• Ackermann can be moved toward positive or negative in a few minutes, even trackside, without upsetting the alignment (adjustment hardware included)
• One-piece lower control arm with Wisefab double adjusters for quick camber and caster changes
• Slightly dropped joints raise the front roll center on a lowered car for more roll stiffness
• Camber and bump steer stay well controlled across the steering range, which matters more on a drift car than static settings. Revised geometry keeps steering jacking in check at big angle, and self-aligning torque stays consistent so the wheel keeps returning instead of hanging at full lock
• Factory wheel speed (ABS) sensor can be used
• Wisefab's recommended alignment: camber -3.5 degrees, caster 6 degrees, toe 2 mm out with zero or negative Ackermann, 0 with positive

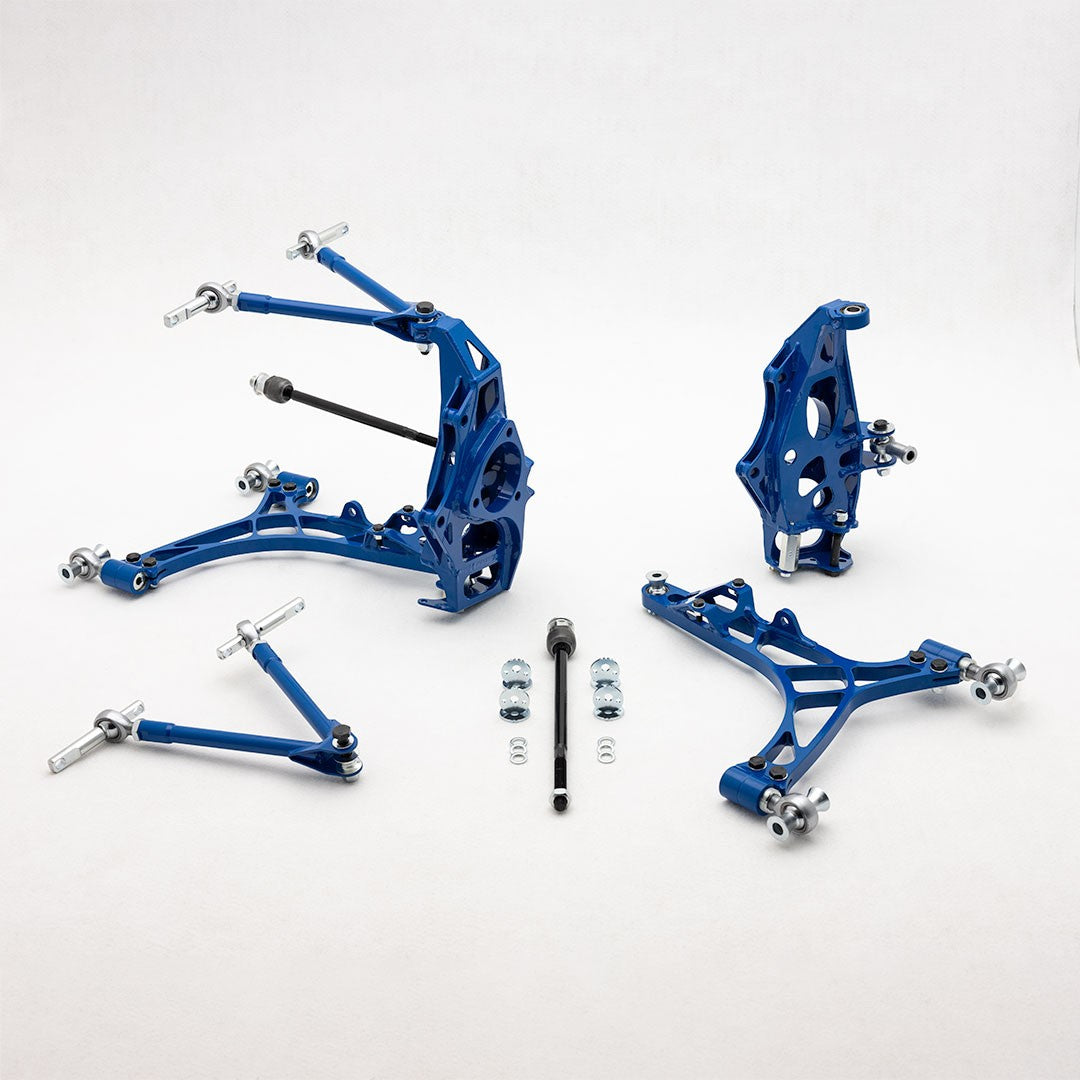

In the kit

• Knuckles with hardware
• Lower control arms
• Upper control arms
• Assembled tie rods
• Installation guide
