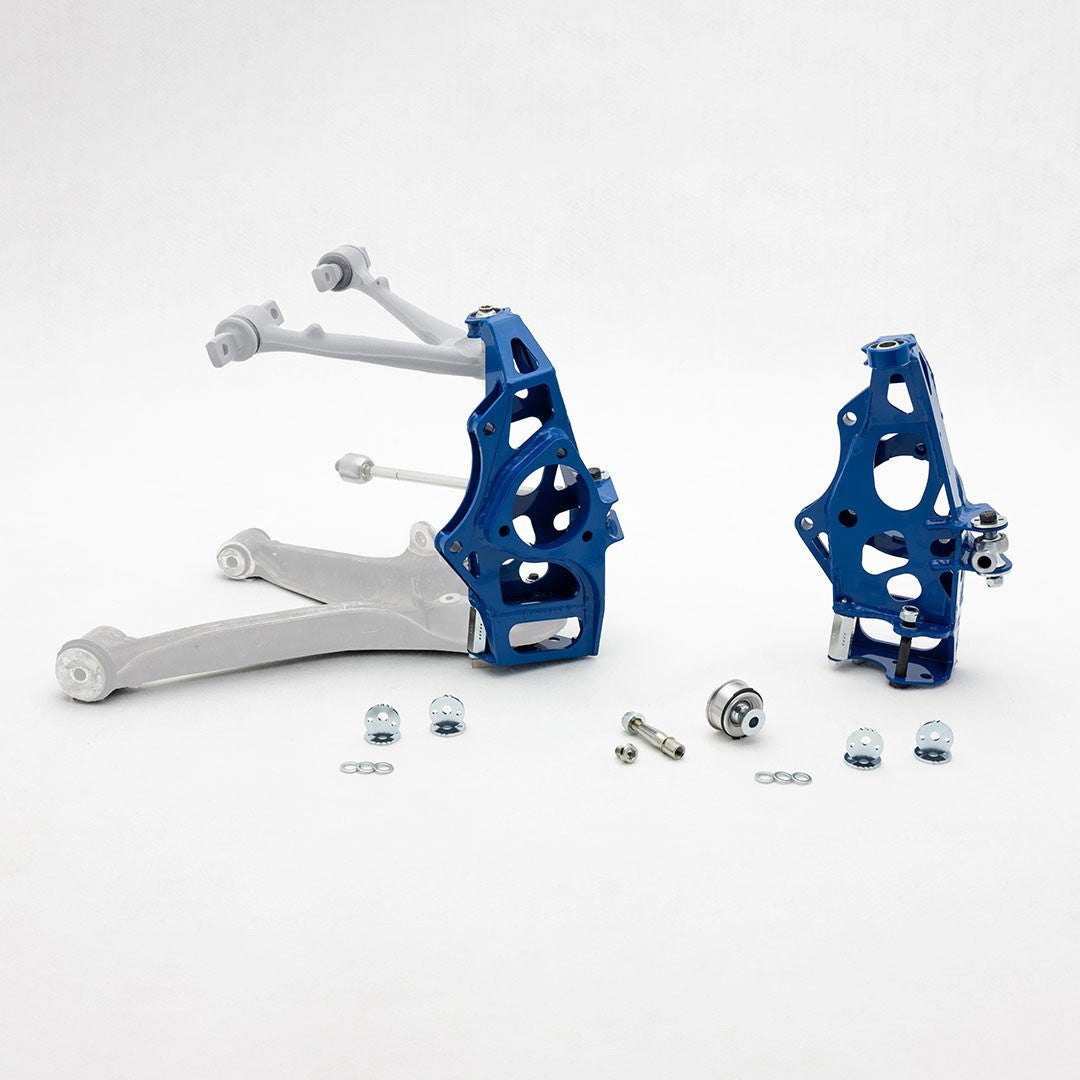

Wisefab Front Drift Angle Lock Kit for OEM Arms, Chevrolet Corvette C5 / C6 (WFC63)

For Corvette drivers who want Wisefab angle without buying the full pro kit up front. The same pro-level knuckles mount to the factory control arms, giving 55+ degrees of lock without making the car much wider, along with adjustable Ackermann and better handling at high angle. Add the Wisefab C5 / C6 drift arms kit (WFC631) later to step up to the full pro kit.

Fits

• Chevrolet Corvette (C5)
• Chevrolet Corvette (C6)

Before you order

• The factory tie rods cannot be used. Source Corvette C4 inner tie rods (OE part number 21011026).
• The OEM lower ball joint is pressed out and the Wisefab lower arm mount pressed in. The lower arm may need some grinding for clearance.
• Max wheel backspacing 160 mm for 17, 18 and 19 in wheels; some 17 in wheels may not fit. Coilover length: 350 mm at ride height, 430 mm max, 315 mm min.

Highlights

• 55+ degrees of steering angle, parallel steering, adjustable lock stop
• Ackermann can be moved toward positive or negative in a few minutes, even trackside, without upsetting the alignment (adjustment hardware included)
• Same knuckles as the pro kit; upgrade path through the drift arms kit (WFC631)
• Slightly dropped joints raise the front roll center on a lowered car
• Camber and bump steer stay well controlled across the steering range, which matters more on a drift car than static settings
• Factory wheel speed (ABS) sensor can be used
• Wisefab's recommended alignment: camber -4.8 degrees, caster 7 degrees, toe 2 mm out with zero or negative Ackermann, 0 with positive

In the kit

• Knuckles with hardware
• Knuckle mounts for the OEM arms
• Installation guide
