Wisefab Rear Suspension Kit, Chevrolet Corvette C5 / C6 (WFC61)

Wisefab's FD-legal rear suspension for the C5 and C6 Corvette, with a wide range of adjustment and built-in features that help save the chassis in an impact. It keeps the OE knuckle and upgrades its upper mount to a spherical bearing.

Fits

• Chevrolet Corvette (C5)
• Chevrolet Corvette (C6)

Before you order

• Arm lengths come preset to C6 geometry; the upper arm is adjusted for a C5.
• The OE upper knuckle joint is pressed out and the Wisefab spherical joint pressed in.
• Wisefab also offers a separate C6 Z06 / ZR1 upper arm mount kit (WFC61_Z06).

Highlights

• Double adjusters on each arm for quick alignment changes; adjustable track width and knuckle clocking
• Lower arm: relocated shock mount for axle clearance, several shock pickups for motion ratio (inboard softer, outboard firmer), removable shock mount for easy coilover removal, adjustable sway bar mount
• Upper arm length adjusts to suit both C5 and C6
• High-clearance toe arm designed to collapse on impact and absorb energy, helping protect the rest of the chassis
• Subframe-mounted bump steer brackets add rigidity, help protect the OE knuckle in an impact and give dynamic toe adjustment: move up for more toe-in under compression, down for less
• FD legal

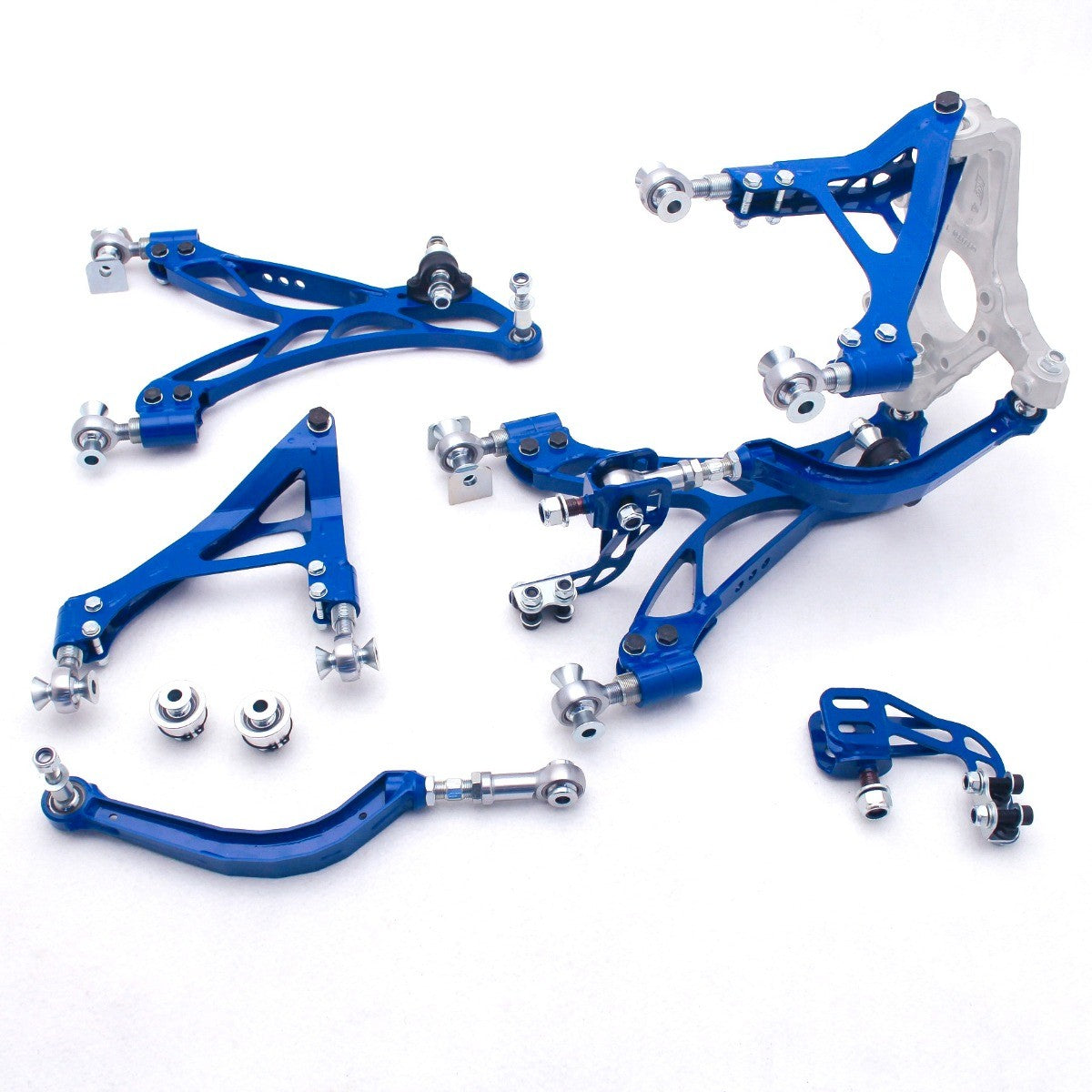

In the kit

• Lower control arms
• Upper control arms
• Toe arms with subframe-mounted bump steer brackets
• Upper knuckle spherical bearing conversion
