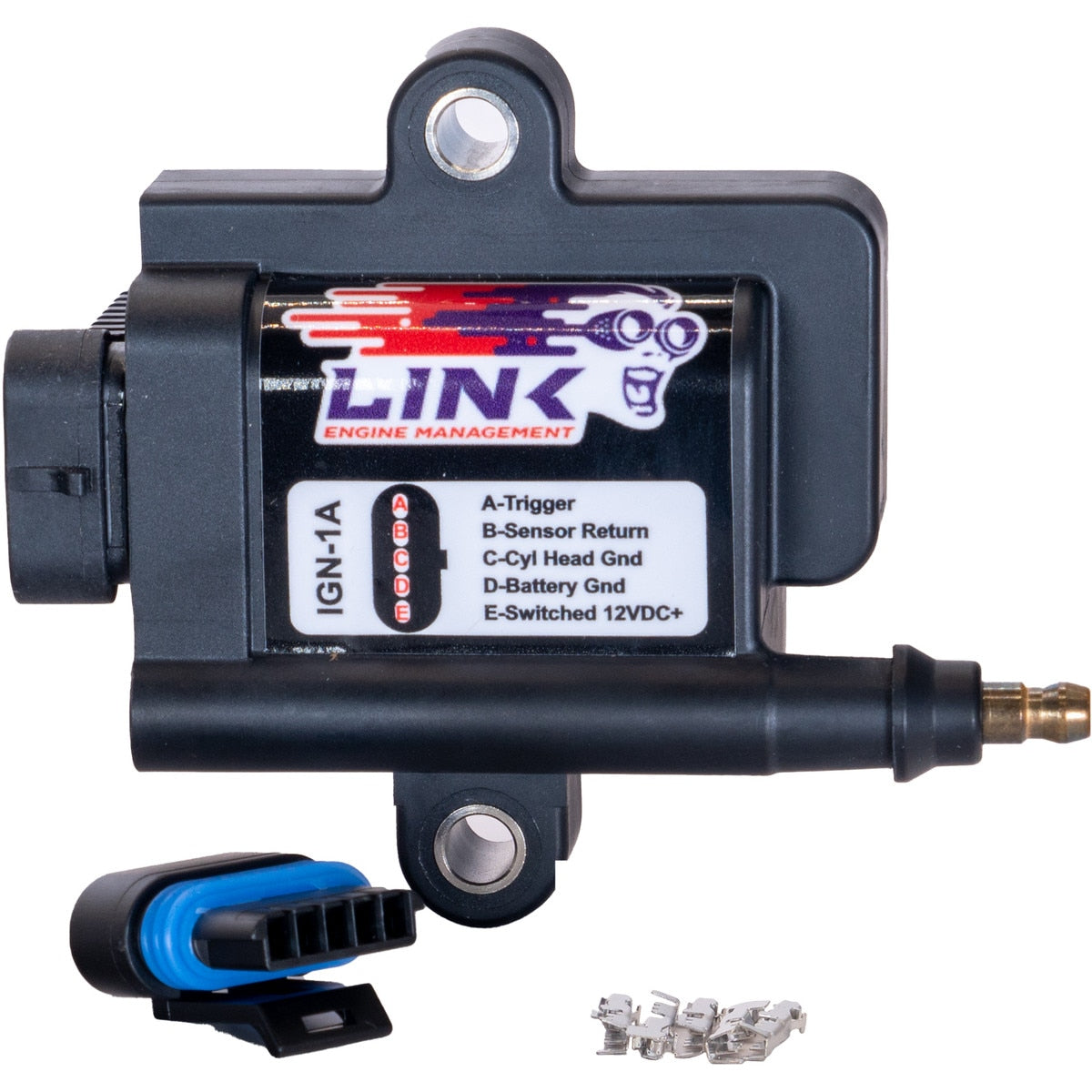

Link IGN-1A High-Output Smart Coil with Built-In Igniter (IGN1A)
$159.16
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A high-output inductive coil with its own igniter, delivering 103 mJ of spark energy and a 2.9 ms spark duration for naturally aspirated, turbocharged and supercharged engines. It is built for HT lead ignition systems, not coil-on-plug, and needs no external igniter.
Highlights
- 103 mJ spark energy with 2.9 ms spark duration
- Output up to 81 kV
- Built-in igniter, driven by logic-level ignition outputs
- For HT lead systems using HEI-style plug wire ends and boots
- Universal mounting, mating connector kit included
- Works with Link G4+, G4X and G5 ECUs and other aftermarket ECUs with logic-level ignition outputs
Specifications
- Spark energy: 103 mJ
- Spark duration: 2.9 ms
- Nominal dwell: 3.0 ms
- Maximum output: 81 kV
- Operating voltage: 6-17 V
- Maximum continuous current: 19 A
- Dimensions: 110 x 90 x 50 mm
- Weight: 420 g
- In the box: IGN-1A coil, mating connector kit
Note: Connect the logic ground to ECU ground, the spark ground to the cylinder head and the power ground directly to battery negative. Excess dwell or duty cycle can damage the coil; follow the dwell table in the IGN-1A user guide.
