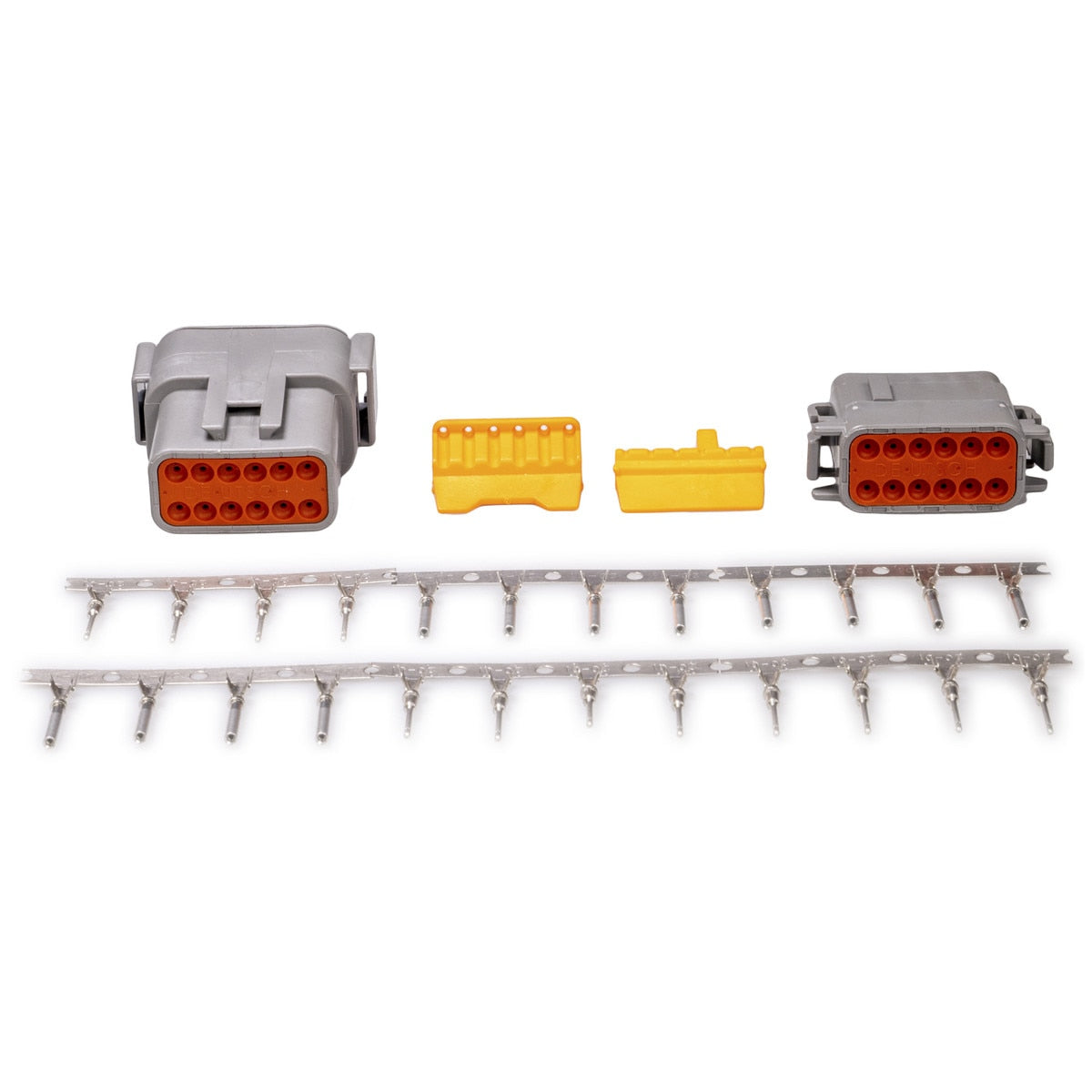

Link Deutsch DTM12 Connector Kit, 12-Pin (101-0286)
$55.49
Taxes and shipping shown at checkout. Typical delivery is 3 to 7 business days across Canada.
✓ Confirmed-fit parts — add your vehicle in your Garage to check fitment.
A 12-pin Deutsch DTM (DT Mini) connector kit for building, repairing or modifying wiring looms. DTM connectors are easy to pin and re-pin, so fixing a mistake or changing a circuit later is simple.
Highlights
- 12-pin Deutsch DTM connector, environmentally sealed for harsh conditions
- Open barrel terminals: no closed barrel crimper required
- Rated up to 7.5 A per circuit
- Takes 22 AWG (0.35 mm²) to 16 AWG (1 mm²) wire
Specifications
- Positions: 12
- Maximum continuous current: 7.5 A per circuit
- Maximum voltage: 250 V
- Wire size: 22 AWG (0.35 mm²) to 16 AWG (1 mm²)
- Weight: 40 g
